IPTR-10G2-Series Mini-Converters SMPTE 2110 IP Tx/Rx v2.5r1 14 www.aja.com

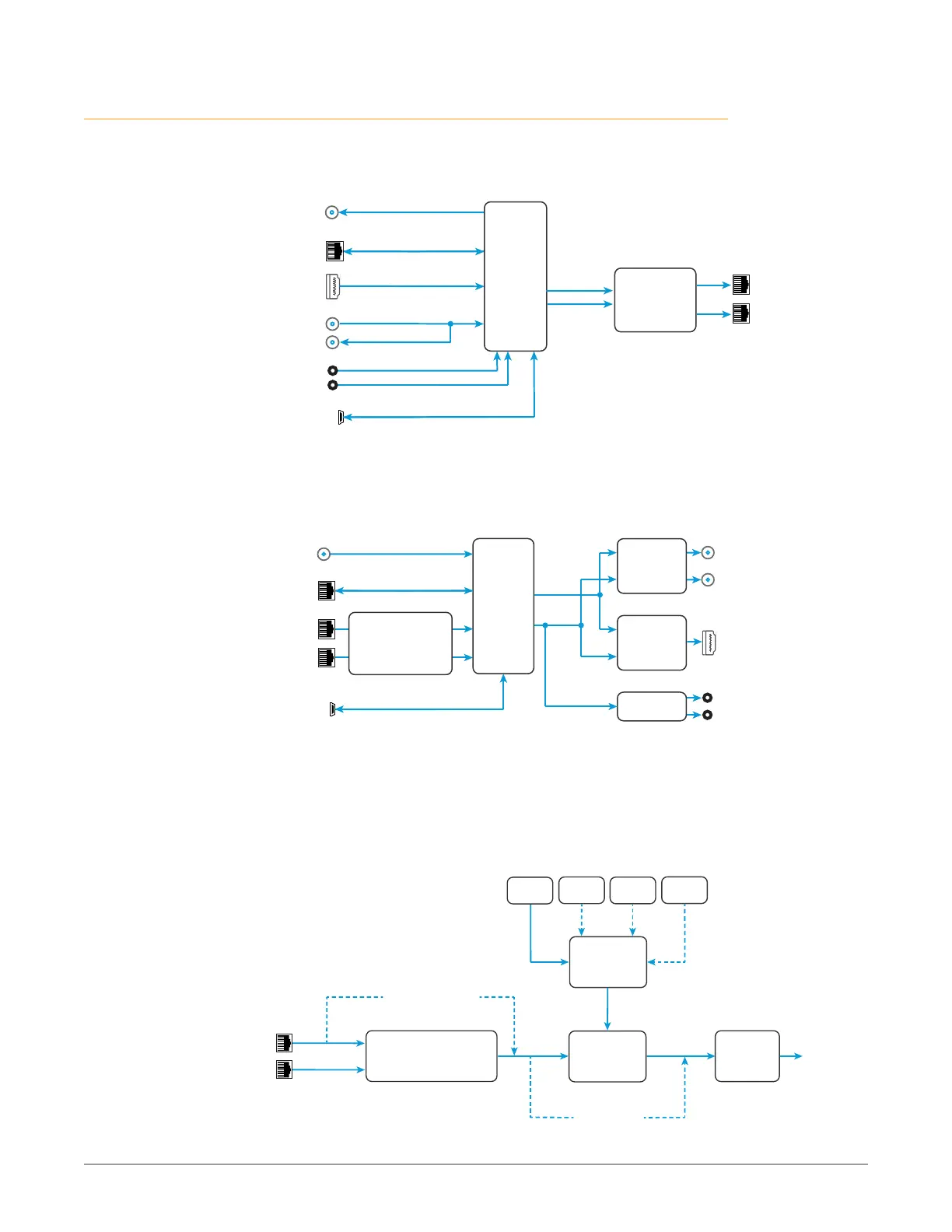

Simplified Block Diagrams and Logic Diagrams
Figure 9. IPT-10G2-SDI/HDMI Simplified Block Diagram
Reference
Output
Video over IP
Processing
Video
Audio
2-Channel
RCA Analog
Audio Input
Control LAN
Media LAN 1
USB Port
(connect to PC or Mac)
For initial setup of
network interfaces
Media LAN 2
SDI Loop Through
SDI Input with
16 Ch Embedded Audio
HDMI Input with
8 Ch Embedded Audio
(IPT-10G2-SDI only)
(Embeds on Ch 1-8)
(IPT-10G2-HDMI only)
IPT-10G2-SDI / IPT-10G2-HDMI
Video over IP
Transmitter
SDI supports up to 16 Ch. audio
HDMI supports 8 Ch. audio
Figure 10. IPR-10G2-SDI/HDMI Simplified Block Diagram
Video over IP
Processing
Audio
D/A
Video
Audio
HDMI
Transmitter
(IPR-10G2-HDMI
only)
2-Channel
RCA Analog Audio
Monitor Output Ch. 1-8
HDMI Output
with 8 Ch. of
Embedded Audio
Control LAN
Media LAN 1
USB Port
(connect to PC or Mac)
For initial setup of
network interfaces
Video over IP
Receiver
Supports up to 16 Ch. Audio
SDI Out 1 with 16 Ch.
of embedded audio
SDI Out 2 with 16 Ch.
of embedded audio
SDI
Transmitter
(IPR-10G2-SDI
only)
IPR-10G2-SDI / IPR-10G2-HDMI
Media LAN 2
Reference
Input
Analog/tri-level reference input
Figure 11. IPR-10G2-SDI/HDMI Simplified Logic Diagram
Media LAN 1
Packet Protection
(Supporting ST 2022-7
when dual SFPs in use)
window size applies here
Simplied Logic Diagram
Media LAN 2
Output
Video Clock
Framesync
Bypass Packet Protection
(ST 2022-7 unsupported)
PTP Ref Video In Free Run
Baseband
Output
Bypass Framesync
IPR-10G2-SDI / IPR-10G2-HDMI
