DRM2 Mini-Converter Rack-Mount Frame Manual v1.0 17 www.aja.com

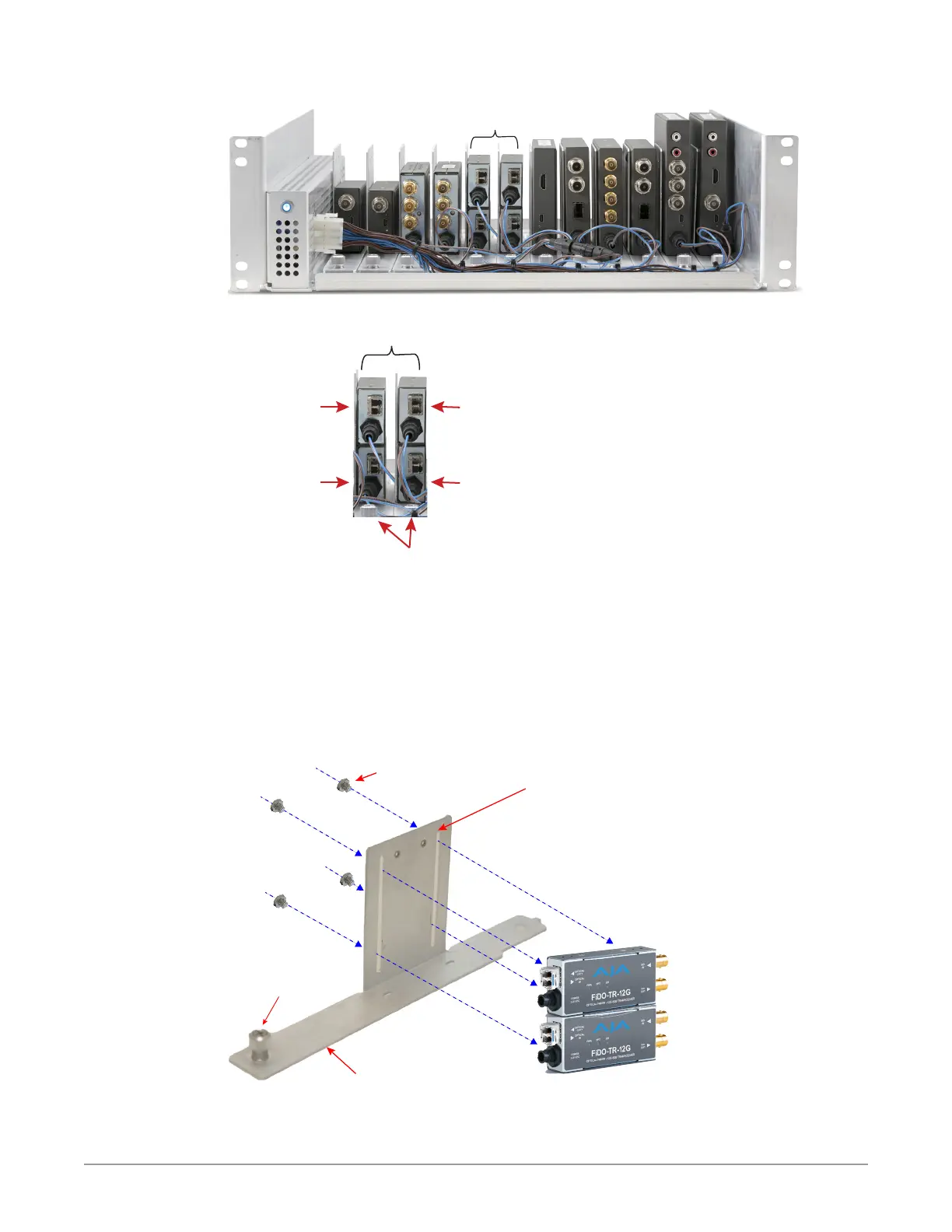

Figure 23. DRM2 with four FiDO Mini-Converters using two Carrier Slots
Stacked FiDOs
Figure 24. Four FiDO TR-12G Mini-Converters using two Carrier Slots
Stacked FiDOs
FiDO TR-12G
FiDO TR-12G
FiDO TR-12G
FiDO TR-12G
Two (2) Carriers
FiDOs have rear mounting holes, so those are used to attach them to Carriers.
1. Use the converter mounting slots and mounting screws to install the rst
FiDO Mini-Converter to the bracket.
2. Slide it to the bottom against the Carrier.
3. Tighten its mounting screws.
4. Install the second FiDO above the rst one, using another pair of mounting
screws through the slots into the rear of the second FiDO.
Figure 25. Stacking two FiDO Mini-Converters onto one Carrier bracket
Mounting Screws
Carrier
Mounting Bracket
Converter
Mounting Slots
No-Tools
Secure Screw
5. Install the Carrier with the two FiDOs into the DRM2 in the usual way.
NOTE: See "Installing Carriers with Converters into the DRM2 Frame" on page 11.
