DRM2 Mini-Converter Rack-Mount Frame Manual v1.0 11 www.aja.com

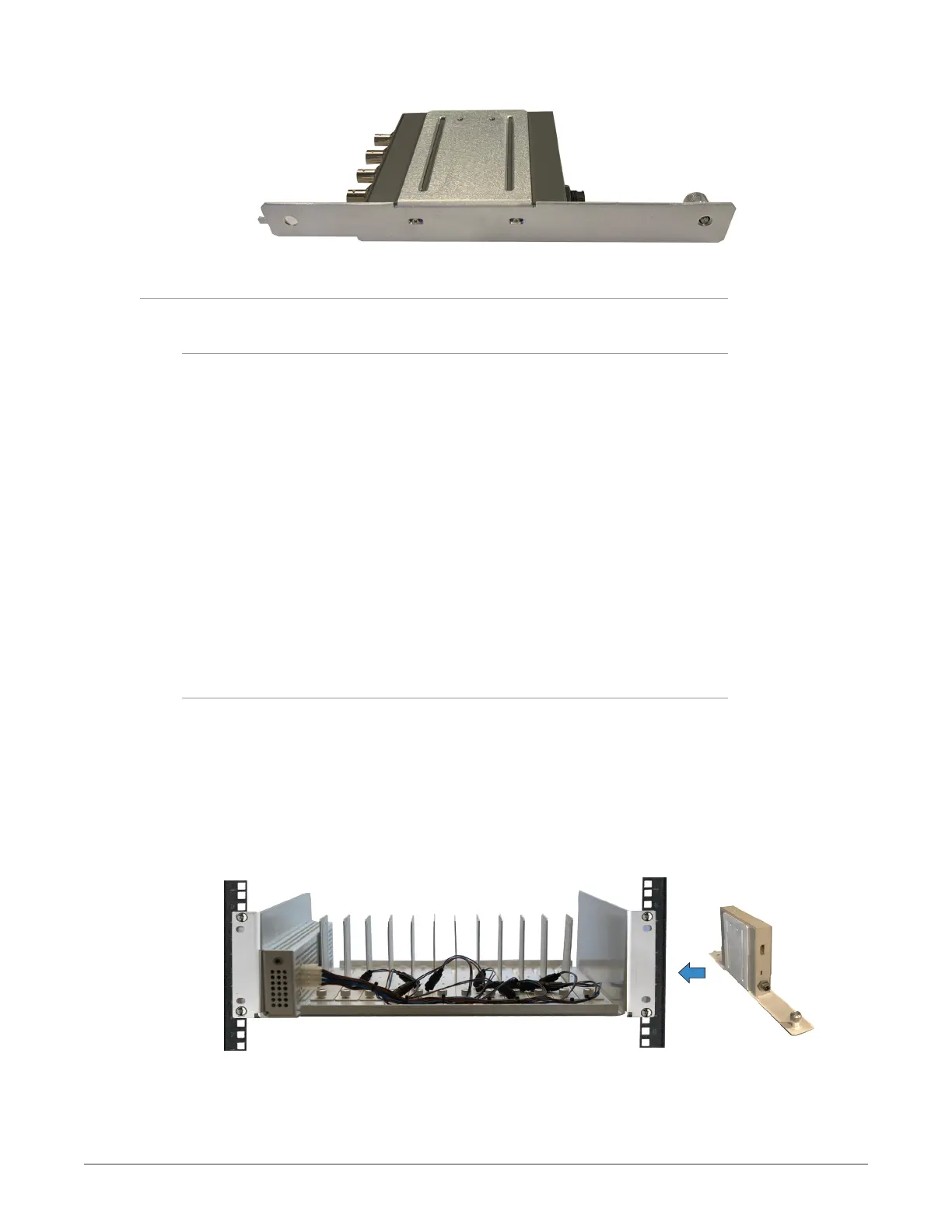

Figure 13. Mini-Converter correctly bottom-mounted on a Carrier
Installing Converters into DRM2 Frame
Overview
After mounting your Mini-Converter(s) onto Carrier bracket(s), you are ready to
install your converter(s) into the DRM2 frame.
If you are installing Converters into a frame having a faceplate previously
attached:
Temporarily remove faceplate - you will remove the DRM2 faceplate and set
it aside. Removing a Passive Faceplate is simple to do, however handling an
Active Faceplate requires careful attention to its power cable.
Continue below when there is no faceplate mounted on the frame:
Install Carriers with converters - you will mount Carriers into their desired
Carrier Slots in the DRM2 frame and secure them. Carriers must have Mini-
Converters previously mounted on them.
Install faceplate - you will reinstall the faceplate over the DRM2 and into the
rack rails behind it. The Active Faceplate requires attention to its power
connection.
Installing Carriers with Converters into the DRM2 Frame
1. Align and loosely place a Carrier, together with its previously mounted Mini-
Converter, into an empty Carrier slot in the DRM2 frame. Do not try to align
or tighten the No-Tools Secure Screw yet, that's for a later step; (after rst
making sure the Carrier rear is installed correctly, as described below.)
CAUTION: While placing a Carrier into a slot position in the DRM2 frame, be sure to keep
all DC power (and any other) cables above the Carrier. Avoid letting wires get
caught under a Carrier.
Figure 14. Add Carrier with Mini-Converter into slot in DRM2 Frame
