4. Web Management
AirLive VH-4GW User Manual
125

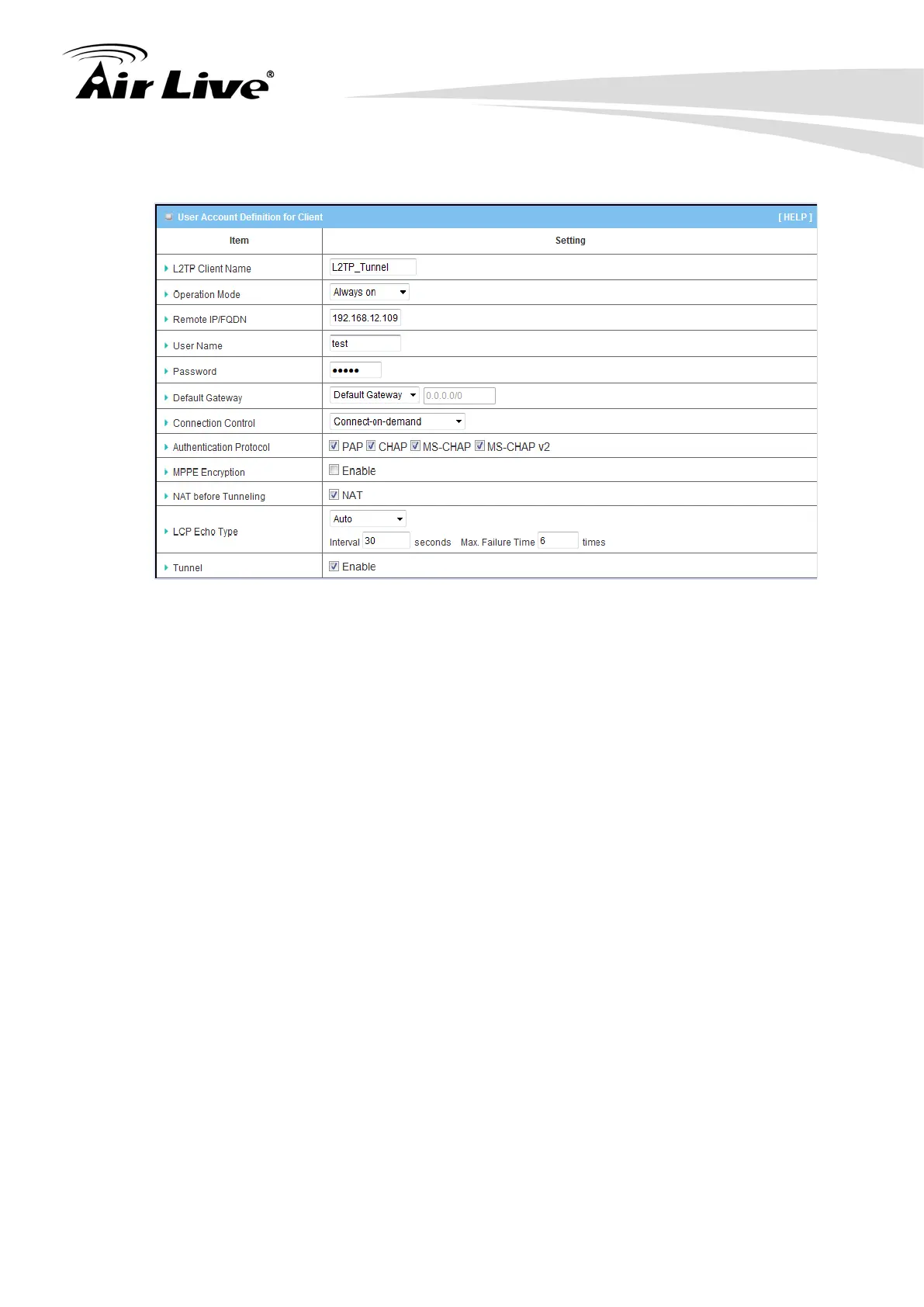

4.2.3.4.7 L2TP Client Configuration
1.
L2TP Client Name:
The name of this tunnel.
2.
Operation Mode:
Default is “Always on” and other options depend on
product models.
3.
Peer IP/Domain:
The IP address or Domain name of remote L2TP server.
4.
UserName:
The user name which can be validated by remote L2TP server.
5.
Password:
The password which can be validated by remote L2TP server.
6.
Default Gateway/Peer Subnet:
You can choose “Default Gateway” option
or “Peer Subnet” option here. When “Default Gateway” is chosen, all traffic
from Intranet of Business Security Gateway goes over this L2TP tunnel if
these packets don’t match the Peer Subnet of other L2TP tunnels. There is
only one L2TP tunnel to own the “Default Gateway” property. However,
when “Peer Subnet” is chosen, peer subnet parameter needs to be filled
and it should be the LAN subnet of remote L2TP server. If an Intranet packet
wants to go to this peer subnet, the L2TP tunnel will be established
automatically.
7.
Connection Control:
There are three connection control options for users
to choose when the L2TP tunnel is established. You can choose
“Connect-on-Demand”, “Auto Reconnect(always-on)”, or “Manually”. By
default, it is “Auto Reconnect(always-on)”.
8.
Authentication Protocol:
You can choose authentication protocol as PAP,
CHAP, MS-CHAP, or MS-CHAP v2. The protocol you choose must be
supported by remote L2TP server.
