4. Web Management
AirLive VH-4GW User Manual
106
8.
Schedule:
The rule can be turn on according to the schedule rule you
specified, and give user more flexibility on access control. By default, it is
always turned on when the rule is enabled. For more details, please refer to
the
[System] - [Scheduling]
menu.
9.
Enable
: Check the box if you want to enable the rule. Each rule can be
enabled or disabled individually.
Afterwards, click on “Save” to store your settings or click “Undo” to give up the
changes.

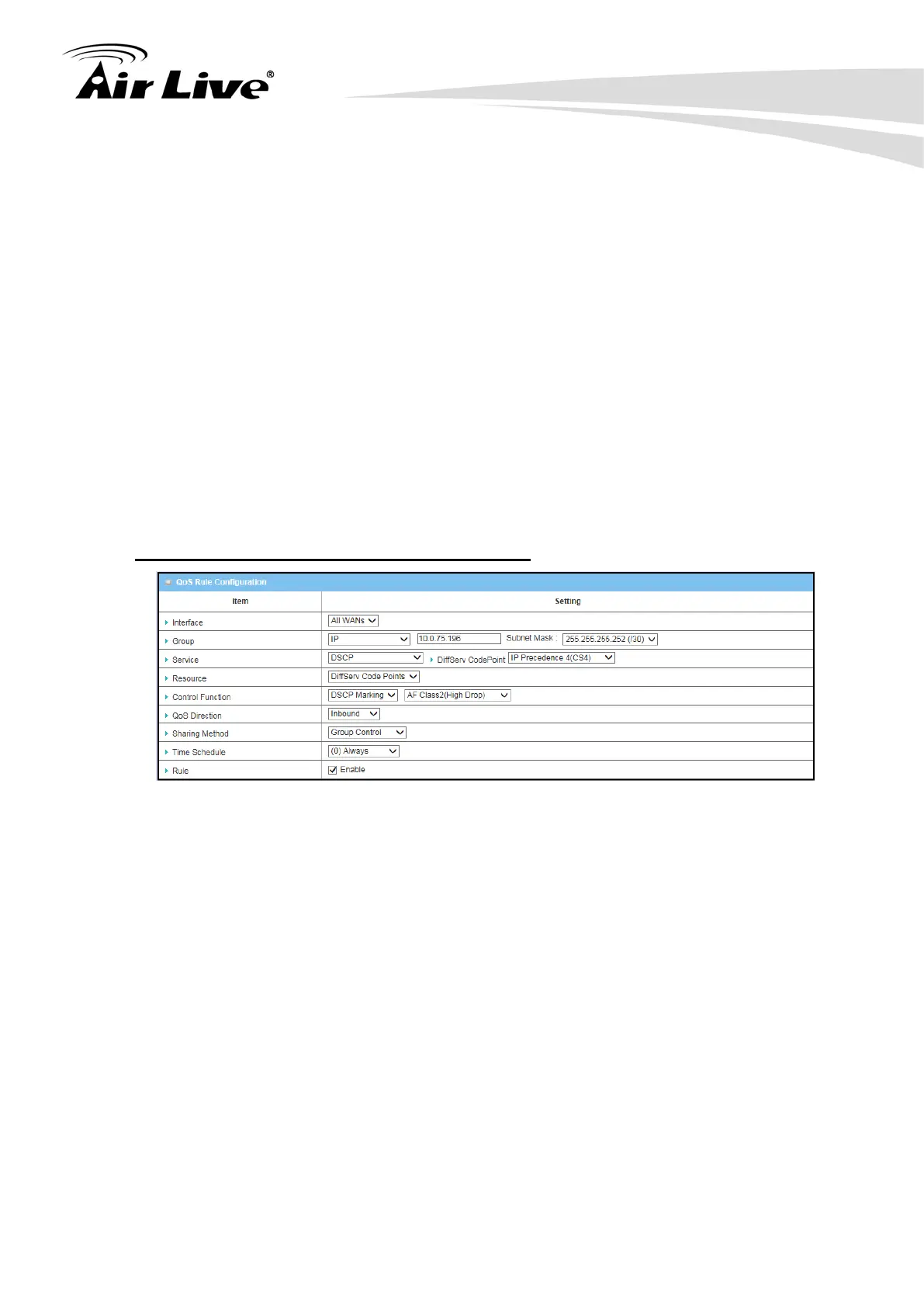

Example#1 for adding a “DSCP” type QoS rule
■
Interface: Select “All WANs”.
■
Group: Select “IP” and enter IP range:10.0.75.196/30.
■
Service: Select “DSCP” with DiffServ Code Points isCS4.
■
Resource: Select “DiffServ Code Points”.
■
Control Function: Select “DSCP Marking” with “AF Class2 (High Drop)”.
■
QoS Direction: Select “Inbound” for inbound traffic only.
■
Sharing Method: Select “Group Control”.
■
Schedule: Leave the default value of “(0) Always ”as it is.
This rule means IP packets from all WAN interfaces to LAN IP address
10.0.75.196~10.0.75.199 which have DiffServ code points with “IP
Precedence4(CS4)” value will be modified by “DSCP Marking” control function
with “AF Class2(High Drop)” value at anytime.
