4. Web Management
AirLive VH-4GW User Manual
102
•
Available Control Functions
➢
There are 4 resources can be applied in a QoS rule: bandwidth,
connection sessions, priority queues and DiffServ Code Point
(DSCP). Control function that acts on target objects for specific
services of packet flow is based on these resources.
➢
For bandwidth resource, control functions include guaranteeing
bandwidth and limiting bandwidth. For priority queuere source,
control function is setting priority. For DSCP resource, control
function is DSCP marking. The last resource is Connection
Sessions; the related control function is limiting connection
sessions.
•
Individual / Group Control
➢
One QoS rule can be applied to individual member or whole
group in the target group. This feature depends on model.
•
Outbound / Inbound Control
➢
One QoS rule can be applied to the outbound or inbound direction
of packet flow, even them both. This feature depends on model.

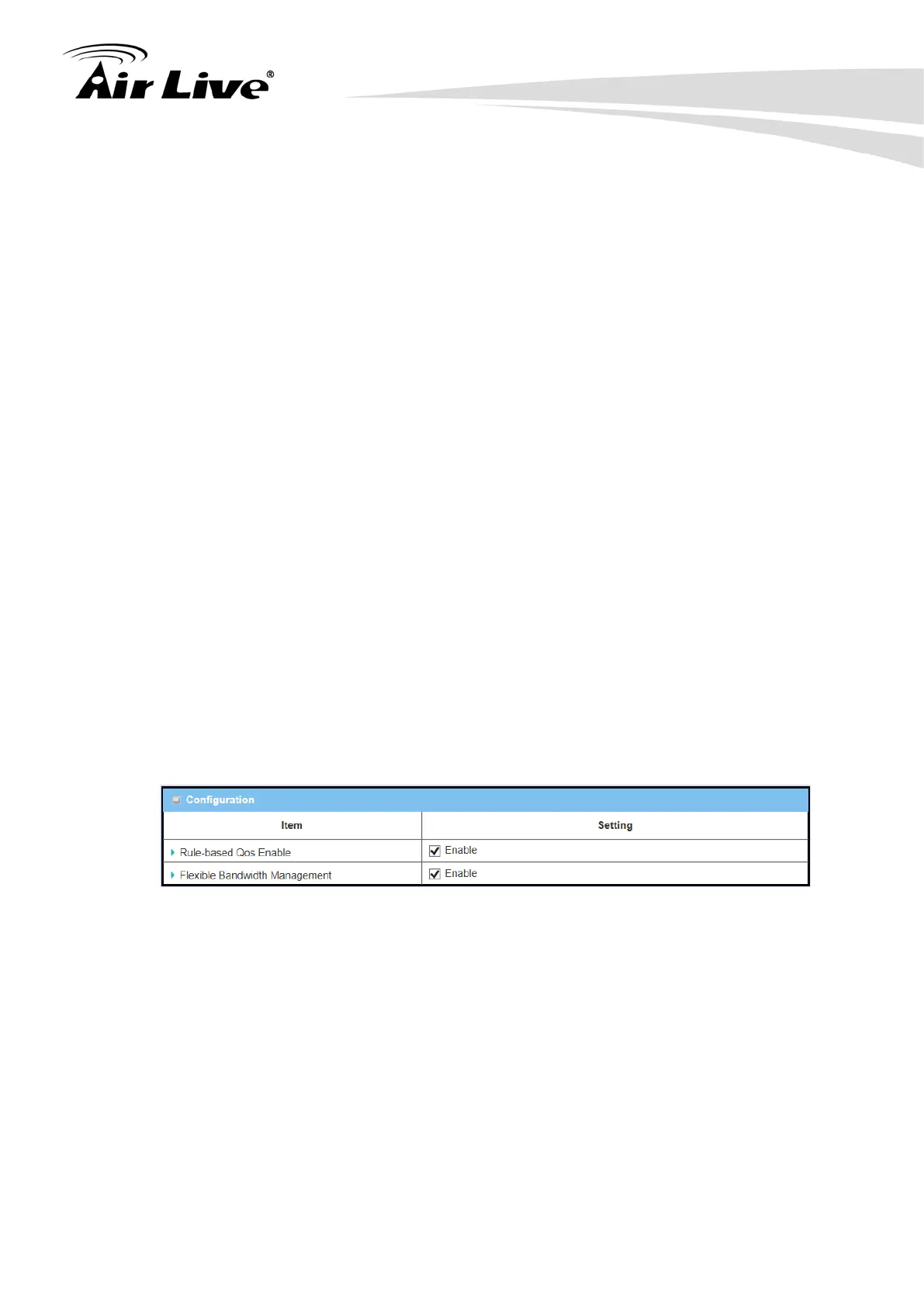

4.2.2.2.1 Configuration
It supports the activation of Rule-based QoS.
1.
Rule-based QoS Enable
: Check the box if you want to enable the QoS &
BWM function.
2.
Flexible Bandwidth Management:
Apply flexible bandwidth management
on the specific WAN interface by checking the Enable box.
4.2.2.2.2 QoS Rule List
It is a list of all QoS rules. You can add one new rule by clicking on the “Add”
command button. But also you can modify some existed QoS rules by clicking
corresponding “Edit” command buttons at the end of each rule in the QoS Rule List.
Besides, unnecessary rules can be removed by checking the “Select” box for those
rules and then clicking on the “Delete” command button at the QoS Rule List caption.
