2. Fill in corresponding configuration items.
3. “Apply” and finish.

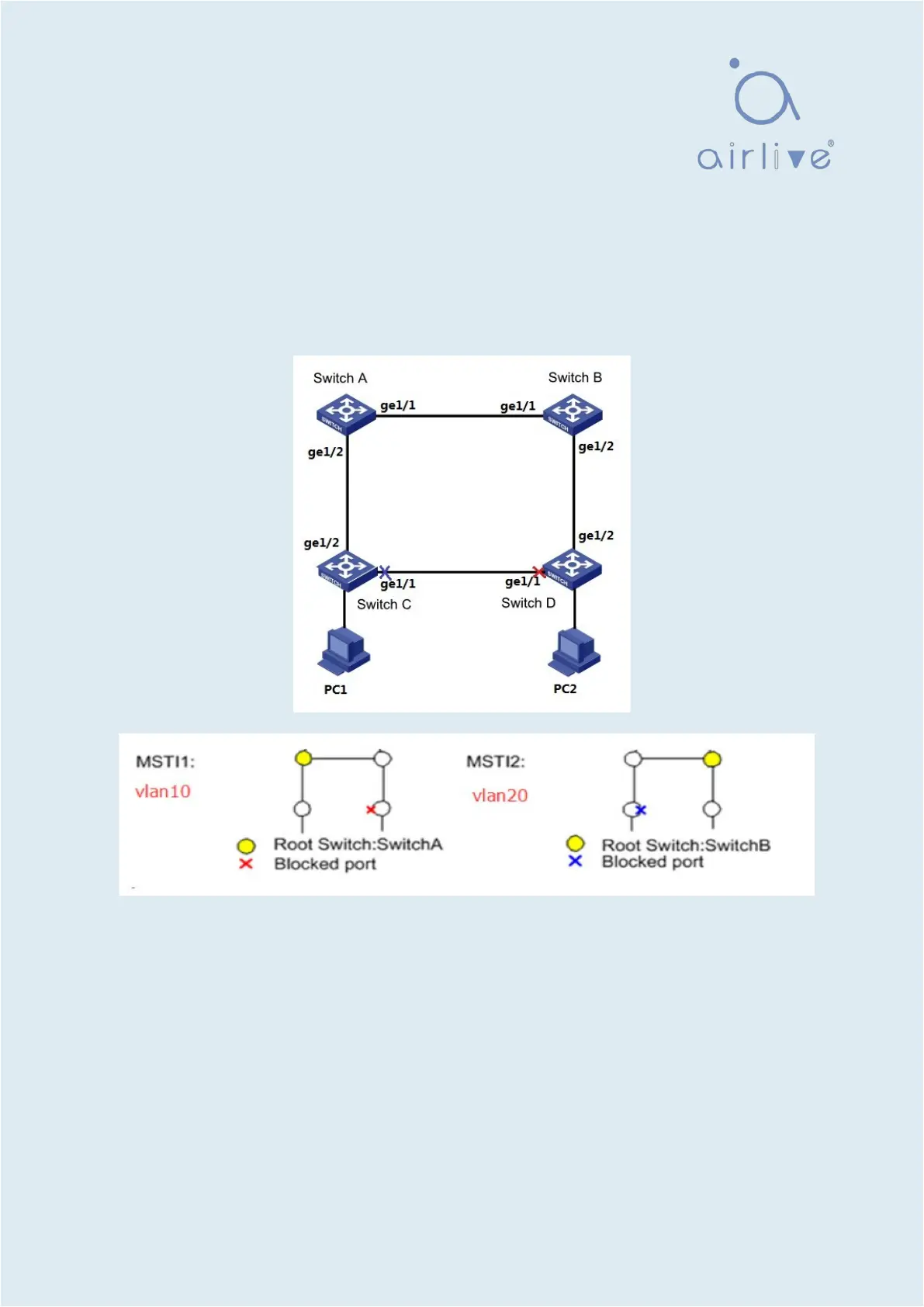

Example of MSTP function configuration:
Switch A, B, C and D all run MSTP which introduces instances to share the load
of VLAN10 and 20. MSTP can set up the VLAN mapping table to associate VLANs with
spanning tree instances, and to map VLAN10 from instance 1 and VLAN20 from instance 2.
Instructions:
1. Switch A, B, C and D create VLAN10 and 20 to configure the L2 forwarding
function of the devices on the Ring. Click the “VLAN > VLAN > Create VLAN” in the
navigation bar, fill in the corresponding configurations. “Apply” and finish as follows.
86
