For example, a company with high info security requirements allows its PCs only to
access the internal network. As is shown, switch GE1 connects the uplink ports of Switch A
while its downstream ports connect PC1, 2 and 3. As a result, PC1, 2 and 3 can access the
internal network through Switch A and Switch, while other PCs can’t.
Configuration logic: following steps are used to divide the VLAN based on MAC address.
1. Create a relevant VLAN.
2. Add Ethernet interfaces to the VLAN in a correct way.
3. Connect the VLAN with the MAC addresses of PC1, 2 and 3.
Data preparation: following data should be prepared for the configuration instance:
● Set GE1 PVID of 100 on the switch. ·
● Set GE1 to access VLAN10 in the Untagged way on the switch.
● Set GE2 to access VLAN10 in the Tagged way on the switch.
● Set the Switch A interface by default, namely all interfaces will be added to VLAN1
in an Untagged way.
● Connect the MAC addresses of PC1, 2 and 3 with VLAN10.
Draw a networking diagram for VLAN division based on MAC addresses:
Instructions:

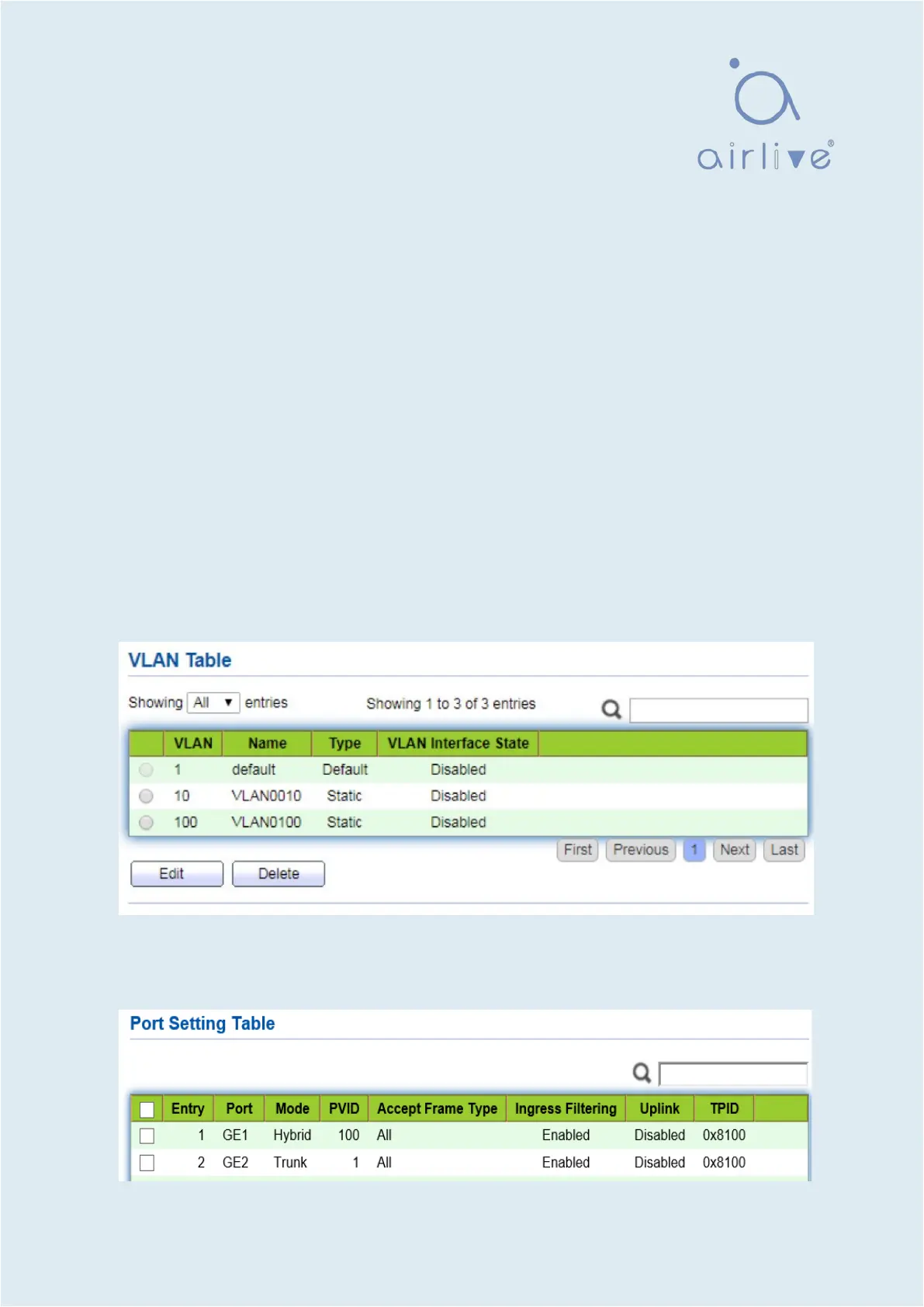

1. Create a VLAN to recognize the VLANs where employees belong. Click the
“VLAN > VLAN > Create VLAN” in the navigation bar, add VLAN10 to the VLAN Creating
List on the right, “Apply” and finish as follows:
2. Configure Switch’s GE1 in Hybrid mode with PVID of 100 to serve as an Untagged
member of VLAN10. Configure GE2 in Trunk mode to serve as a Tagged member of
VLAN10.
65
