Interface data are as follows.
Configuration Items Description
LAG There are 8 LAGs numbering from 1 to 8.
Name Description of LAG, which can be modified as needed.
Type Select from the manual mode and the LACP mode.
Member Up to 8 member ports are available in LAG.
Illustration:
As shown below, Switch A and Switch B connect VLAN 10 and 20 via Ethernet
respectively, with large data flow between them.
Both Switch A and B are expected to provide superior link bandwidth for VLAN
communication. Meanwhile, there should be the redundancy for reliable data transmission
and links.

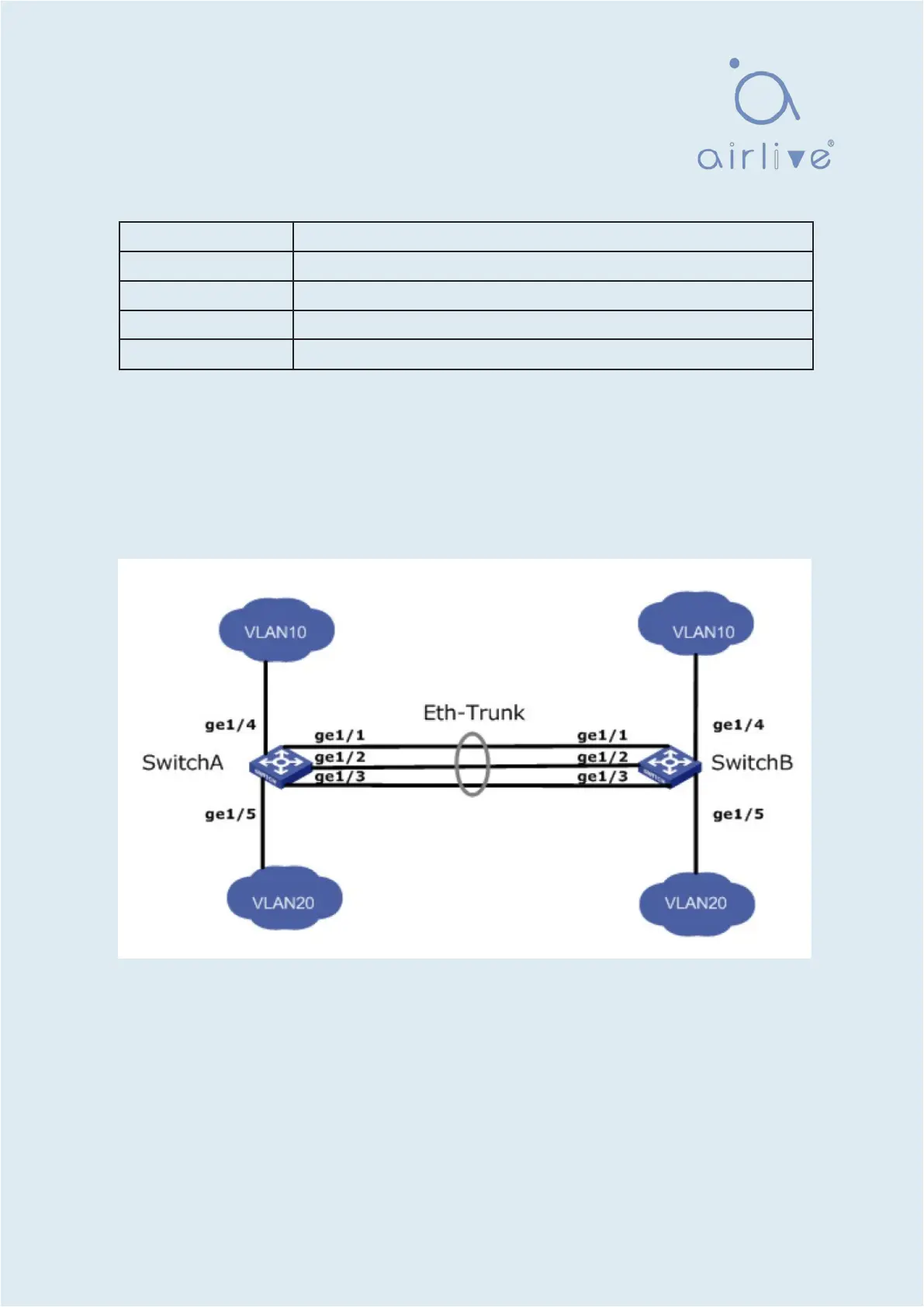

Networking diagram LAG in manual mode
Instructions:
1. Create the ETH trunk interface in SwitchA and add a member interface to increase
the link bandwidth. The configuration of SwitchB is like that of SwitchA. Click the “Port >
Link Aggregation > Group”, choose “LAG 1” and port GE1, 2 and 3 and move them to the
selected ports on the right. “Apply” and finish as follows.
29
