Description:
Option 82 field independently configures Circuit ID or Remote ID sub-options.
It can be configured individually or simultaneously in no specific order.
DHCP Option 82 must be configured in the user bar, otherwise DHCP messages sent to
DHCP Server won’t carry Option 82.
When receiving the DHCP response message from DHCP Server, the message containing
Option 82 will be forwarded after deleting the field, or forwarded directly if the message
contains no Option 82.

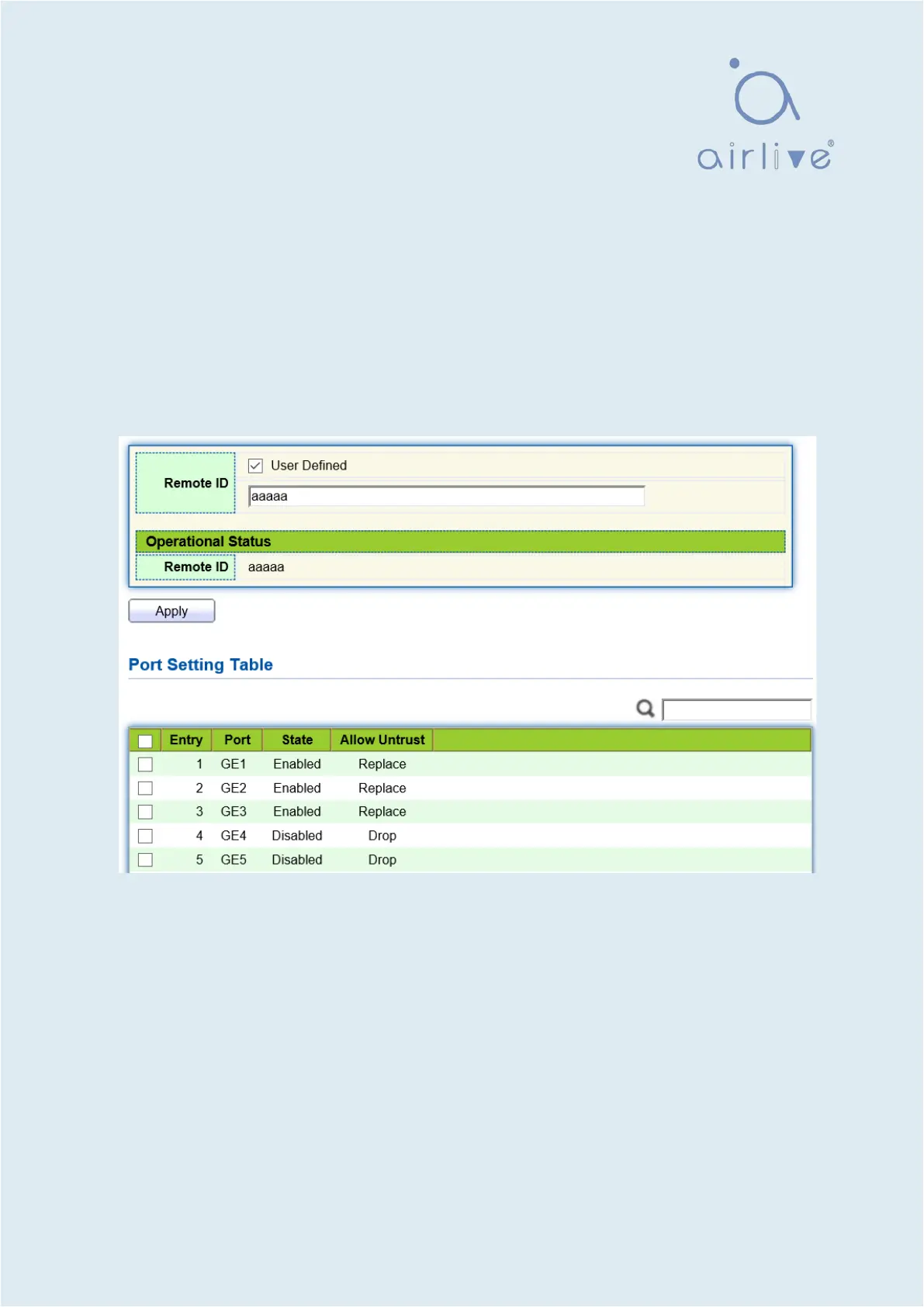

2. Fill in corresponding configuration items.
3. “Apply” and finish as follows.
Illustration of DHCP Snooping Typical Configuration
As shown below, Switch port GE1-5 is connected to DHCP Server, and ports GE1-1, 2 and
3 are connected to DHCP Client A, B and C respectively.
● Enable the DHCP Snooping on the switch.
● Set the GE1-5 as the trust port of DHCP Snooping.
● Enable the Option 82 supporting function on the switch. For GE1-3 message
flowing through the port, fill in the Option 82 according to the default configuration of Circuit
ID and Remote ID.
151
