Airlive POE-GSH1602M handleiding
Handleiding
Je bekijkt pagina 223 van 231
223
RMON NMS exchanges data with SNMP Agent with SNMP basic command to collect
network management info. However, limited by device resources, it generally fails to
obtain all data of RMON MIB. Most devices collect data from only four groups: alarm,
event, history, and statistics groups. Area-type switch realizes RMON in the second
way. RMON Agent directly accessing switches will become the network facility with
RMON probe function. By running the SNMP Agent supported by switches, NMS can
obtain overall flow, error statistics, performance statistics and other info on the
network segments connected to ports, in order to manage the network.
18.5.1 Statistics
The statistics group info reflects the statistics of each monitoring interface on the switch,
namely the info accumulated from the beginning of group creation. Statistics include
the number of network conflicts, CRC error messages, too-small (too-large) data
messages, broadcast/multicast messages, bytes and messages received, etc. With
the RMON statistics and management functions, port usage and errors occurred can
be monitored and counted, respectively.
Instructions

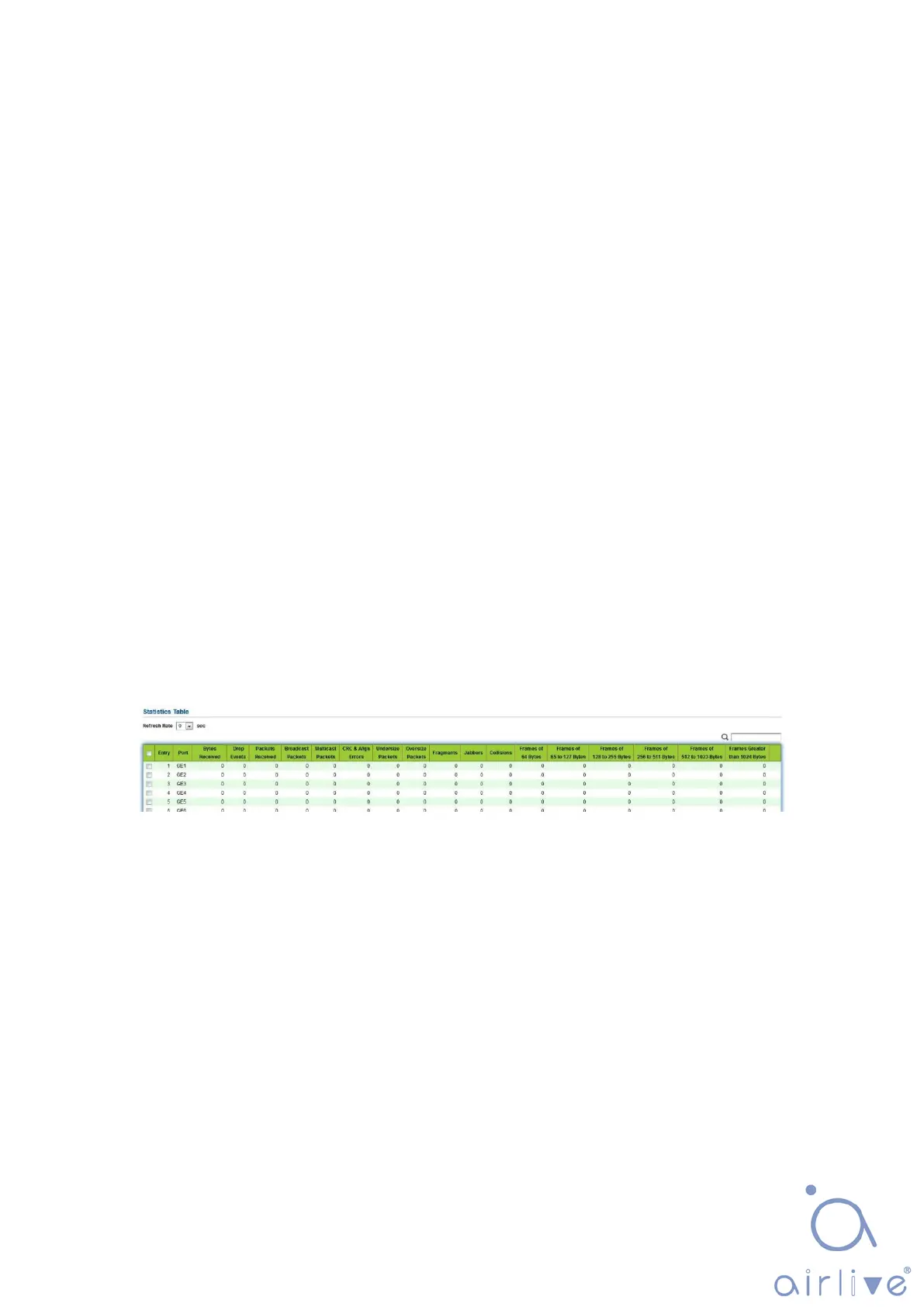

1. Click the “Management > RMON > Statistics” in the navigation bar as follows, which
reveals the port-related message statistics.
