59
4. Add the Untagged GE2 and GE3 interfaces of Switch B to VLAN whose ports need links.
Steps are like step 2 and 3.

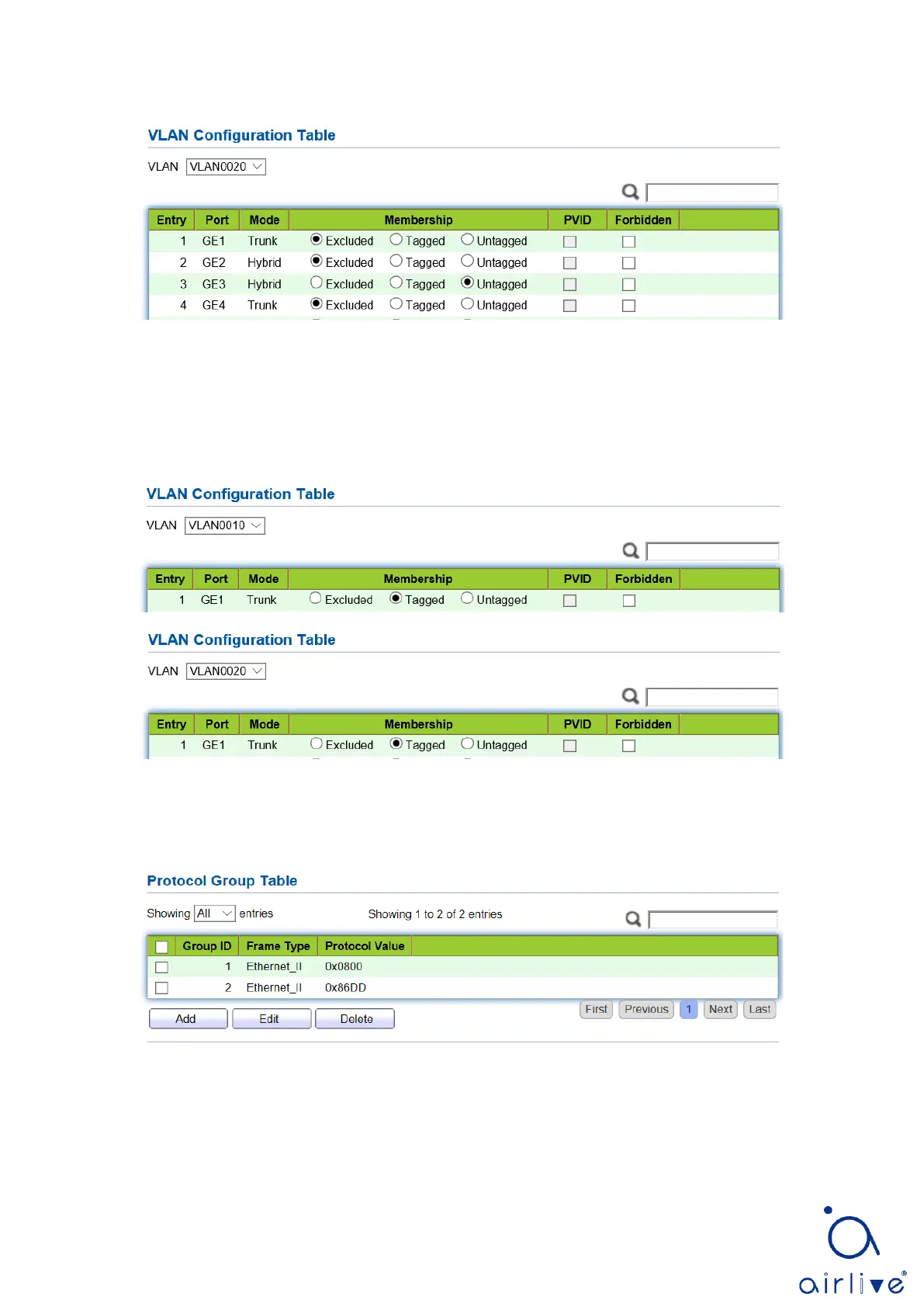

5. Add the Tagged GE1 interface of Switch A to VLAN10 and 20. Click the “VLAN > VLAN >
VLAN Configuration”, drop down the list to select VLAN10 and the Tagged member of
GE1. Configure VLAN20 similarly.
6. Related protocol and VLAN. VLAN IDs are assigned according to the protocol (family)
type and encapsulation format of the messages received by interfaces. Click the “VLAN >
Protocol VLAN > Protocol Group” in the navigation bar to add 2 rules for protocol groups:
7. Port, protocol group, and VLAN binding. Click the “VLAN > Protocol Group > Group
Binding”, “Add” to bind GE2 and binding group ID1 with VLAN10, and to bind GE3 and
binding group ID2 with VLAN20:
