44
⚫ The minimum granularity time of Poe port restart is minutes
⚫ When the restart time is set, the delay time needs to be set
⚫ When the delay time is 00:00:00, it means that the port is no longer powered on
7 VLAN
VLAN is formulated not restricted to physical locations, which means the hosts in a

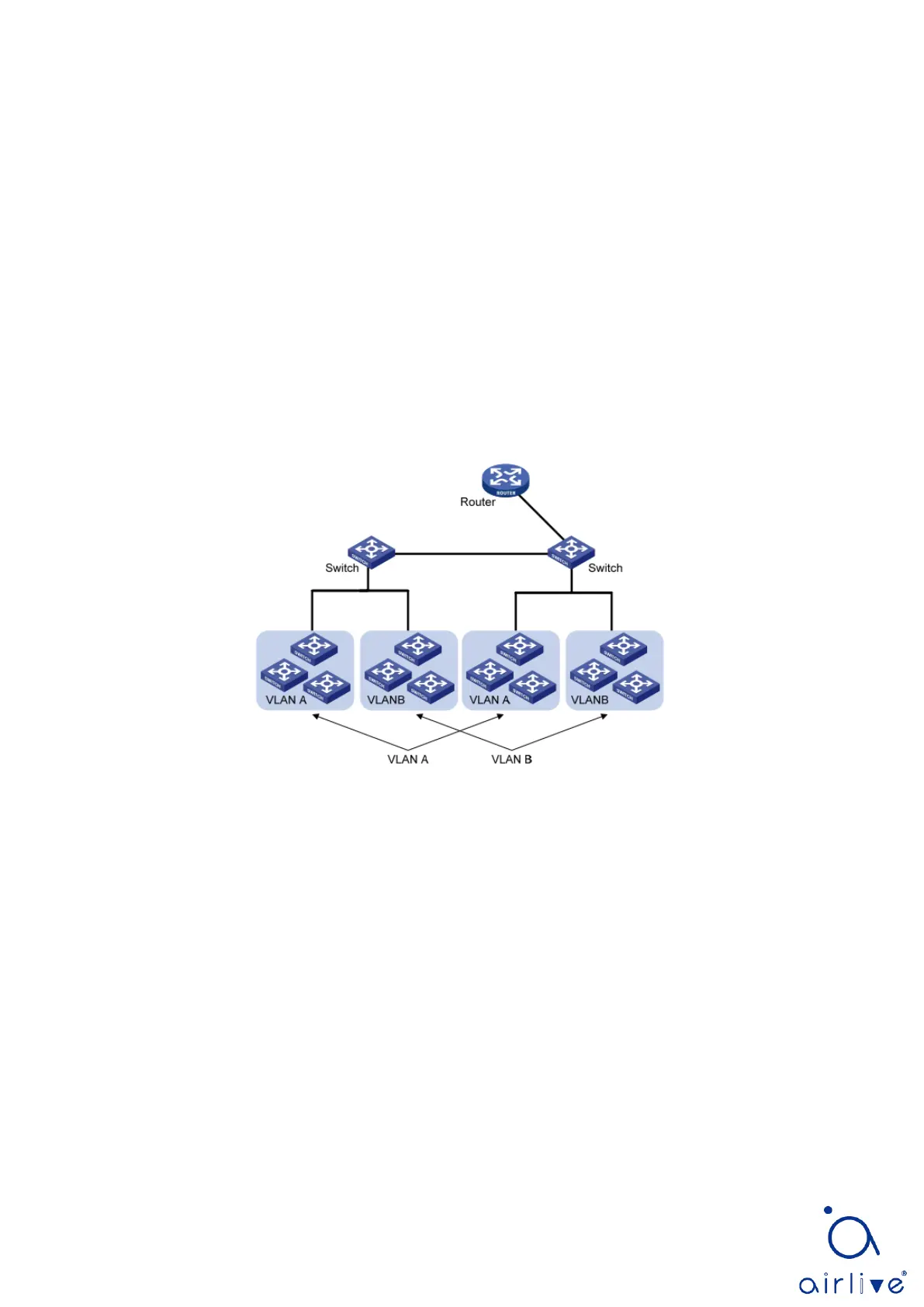

same VLAN can be placed at will. As shown below, each VLAN, as a broadcast domain,
divides a physical LAN into logical LANs. Hosts can exchange messages by means of
traditional communication. For the hosts in different VLANs, the device such as router or
L3 switch is a must.
VLAN is superior to the traditional Ethernet in terms of:
⚫ Broadcast domain coverage: the broadcast message in a LAN is limited in a VLAN to
save the bandwidth and handle the network-related issues more efficiently.
⚫ LAN security: VLAN hosts fail to communicate with each other since the messages
are separated by the broadcast domain in the data link layer. They need a router or
a Layer 3 switch for Layer 3 forwarding.
⚫ Flexibility of creating a virtual working team: VLAN can create a virtual working team
beyond the control of physical network. Users have access to the network without
changing the configuration if their physical locations are moving within the scope.
This management switch is compatible with VLAN types based on 802.1Q, protocols,
MAC, and ports. For default configuration, 802.1Q VLAN mode should be adopted.
Port VLAN is divided subject to a switch’s interface No. Network administrator gives
each switch interface a different PVID, namely a port default VLAN. If a data frame
without a VLAN tag flows into a switch interface with a PVID, it will be marked with
the same PVID, or it will get rid of an additional tag even though the interface has a
