5.3 Link Aggregation
Link Aggregation broadens bandwidth and reliability by bundling a group of
physical interfaces into a single logical interface.
LAG (Link Aggregation Group) is a logical link bundled by multiple Ethernet links (Eth-
Trunk).
Ceaselessly expanding network size increases users’ demands of link bandwidth
and reliability. Traditionally, high-speed interface board or the compatible equipment is
usually replaced to optimize bandwidth, which is expensive and inflexible.
Link Aggregation Technology bundles multiple physical interfaces into a single logical
interface without upgrading hardware. Its backup mechanism not only improves
reliability, but also shares the flow load on different physical links.

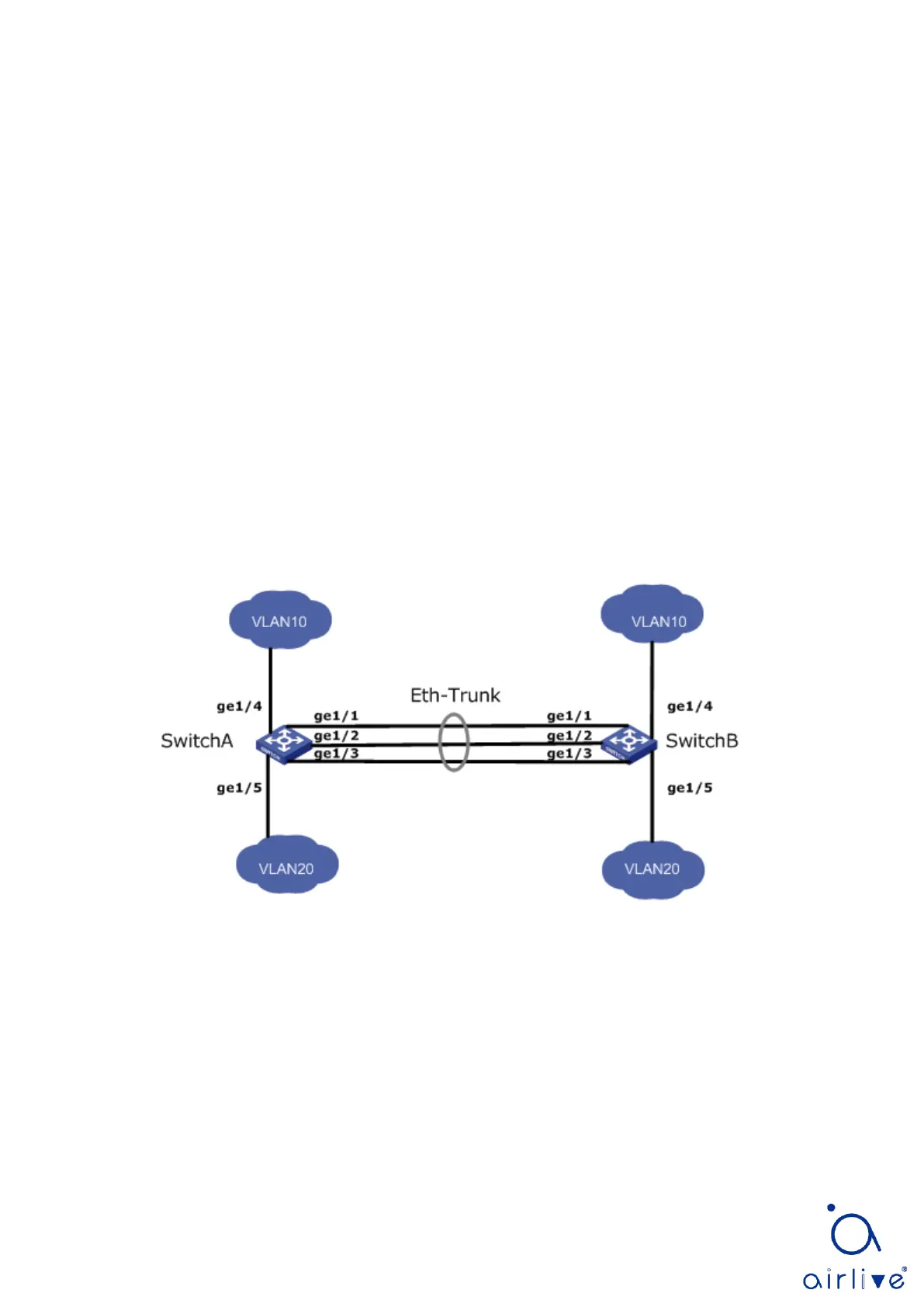

As shown below, Switch A is linked with Switch B through three Ethernet links which
are bundled into an Eth-Trunk logical link. Its bandwidth equals to that of the three links
in total, thus broadening the bandwidth. Meanwhile, these three links back up mutually
to be more reliable.
Link Aggregation can meet the following demands:
⚫ Insufficient bandwidth of two switches connected with one link.
⚫ Insufficient reliability of two switches connected with one link.
Link Aggregation can be divided into Manual Mode and LACP Mode in accordance with
Link Aggregation Control Protocol (LACP) state.
In the first mode, Eth-Trunk establishment, member interface access should be
added manually without LACP. It is also called the Load-sharing Mode because all links
are involved in data forwarding and load sharing. In case any active link fails, LAG will
average load with the remaining ones. This mode is preferred under the circumstance
