This chapter will show you how to configure the basic functions of your AP within minutes.
-8-
Userguide for AirDual-AC12, AWOD-12ACi, AWOD-30AXi
Chapter 3. Quick Installation Guide
3.1
AirDual-AC12, AWOD-12ACi, AWOD-30AXi, Web login Management.
Now click OK to save your settings.
Manual Network Setup – TCP/IP Configuration.
The default IP address of the CPE is 192.168.188.253, and the default subnet is 255.255.255.0. These values can be
changed as you want. For this guide we will use the default values to introduce the webui.
Connect the CPE with your PC by plugging one end of an Ethernet cable in the LAN port of the CPE or into a free port
on the PoE switch to which the CPE is also connected and the other end in the LAN port of PC. When the CPE powered
by a PoE switch, you can connect to the CPE by connecting direct to LAN port of the CPE or by connecting to the same
PoE switch. You can also use the supplied PoE Injector (AirDual-AC12 and AWOD-12ACi only) to power CPE when not
using a PoE switch.
In the following sections, we’ll introduce how to install and configure the TCP/IP correctly in Windows. And the
procedures in other operating systems are similar. First, make sure your Ethernet Adapter is working, and refer to the
Ethernet adapter manual if needed.
3.2
Configuring the IP Address Manually.

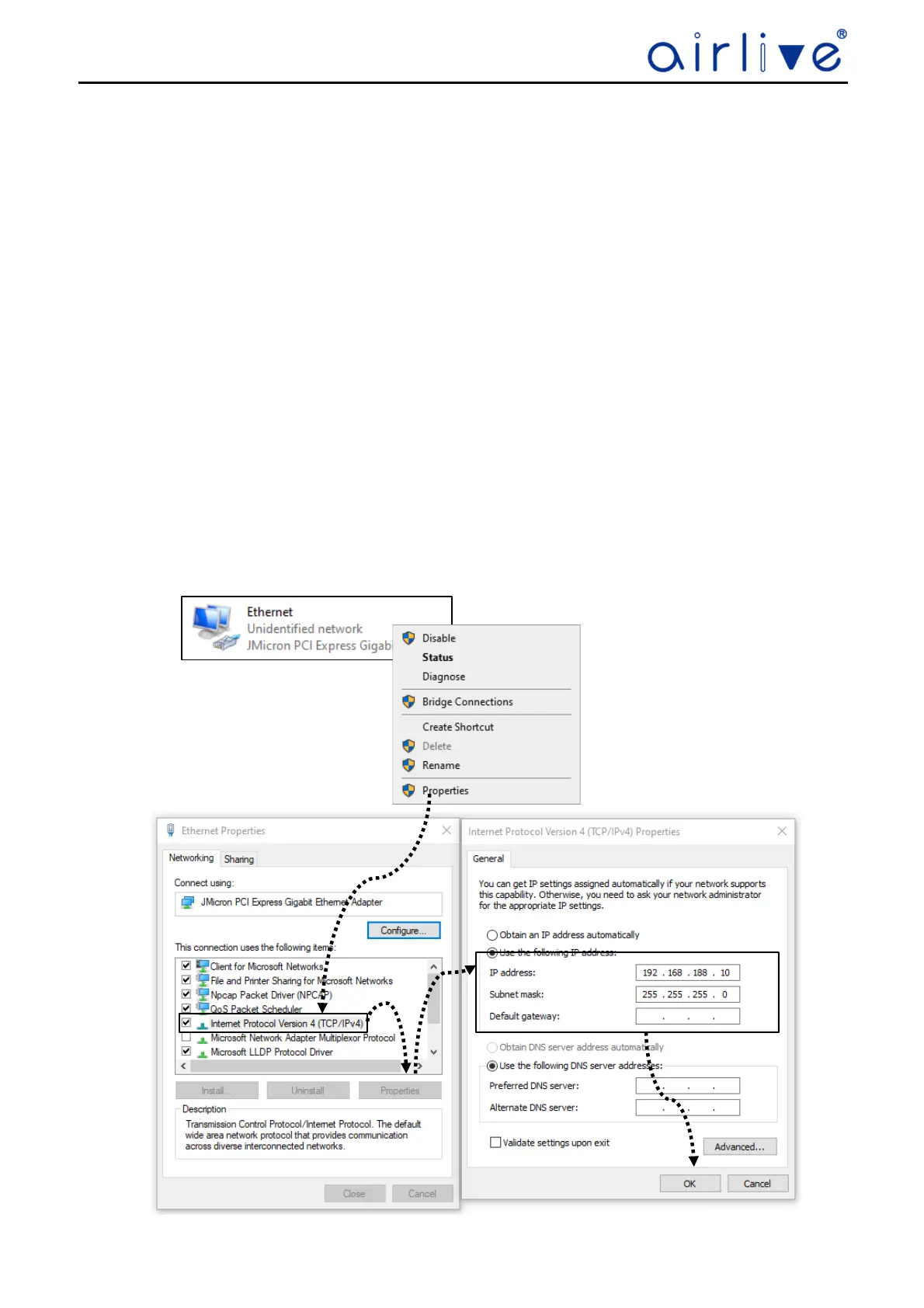

Using the LAN connection, you need to set the IP address of the TCP/IP property of the network card to
192.168.188.X (X is number of 2--252) first, so that the device and PC in the same IP segment, and set the subnet
mask to 255.255.255.0, as shown in the following picture:
