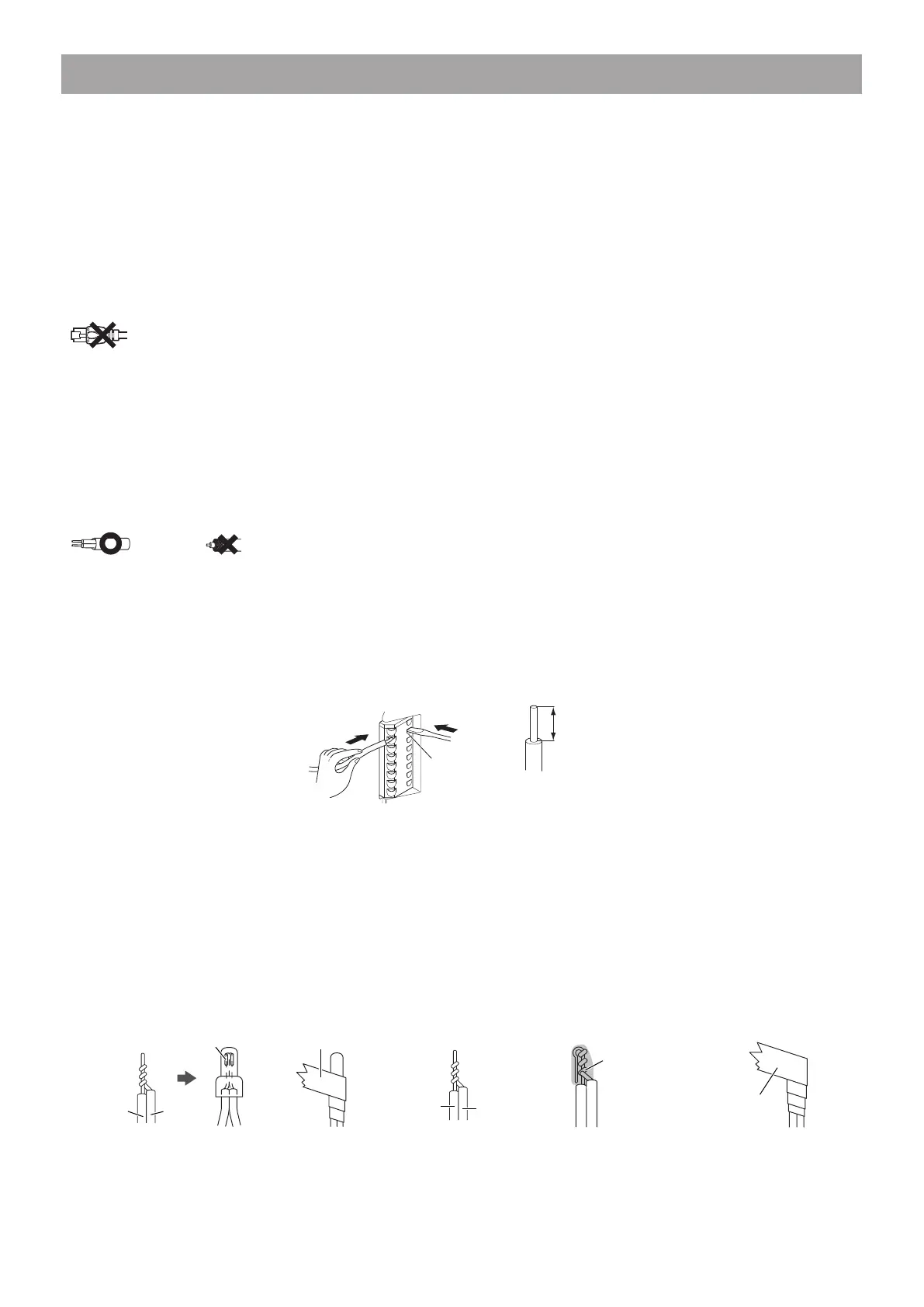

How to Connect
■ Connection Precautions
● Cat-5e/6 cable
• For connection between devices, use a straight-through cable.
• If necessary, when bending the cable, please observe the manufacturer's recommendations. Failure to do so could cause a
communication failure.
• Do not strip away the cable insulation any more than is necessary.
• Perform termination in accordance with TIA/EIA-568A or 568B.
• Before connecting the cable, be sure to verify conduction using a LAN checker or similar tool.
• A RJ45 covered connector cannot be connected to the LAN ports of the stations. Use cables without covers on the connectors.
• Be careful not to pull on the cable or subject it to excessive stress.
● Precautions regarding low-voltage line
• Use PE (polyethylene)-insulated PVC jacketed cable. Parallel or jacketed conductors, mid-capacitance, non-
shielded cable is recommended.
• Never use twisted-pair cable or coaxial cable
• 2Pr quad V twisted pair cables cannot be used.
● Connection and disconnection of low-voltage lines
• Insert the line into the quick connection terminal.
• If the line does not go in easily, push the low-voltage line into the terminal while pressing down the detachment
button.
• When removing a low-voltage line, pull on the line while pressing down the detachment button.
• When connecting low-voltage lines, perform the connection using either the crimp sleeve method or soldering,
then insulate the connection with electrical tape.
Parallel cable
Coaxial cable
Detachment
button
8mm (5/16")
Recommended
diameter of wire
ø0.8
※
The shape varies depending on a model.
1. Twist the stranded wire
around the solid wire at
least 3 times.
2. Overlap the tape by
at least a half width and
wrap the connection at
least twice.
●Crimp sleeve method
Electrical tape
Crimp terminal
Stranded
wire
Solid
wire
Solid wire
Stranded
wire
●Soldering method
1. Twist the stranded
wire around the solid
wire at least 3 times.
2. After bending down the
point, perform soldering,
with care that no wires
protrude from the soldering.
3. Overlap the tape by
at least a half width and
wrap the connection at
least twice.
Electrical tape
Soldering
