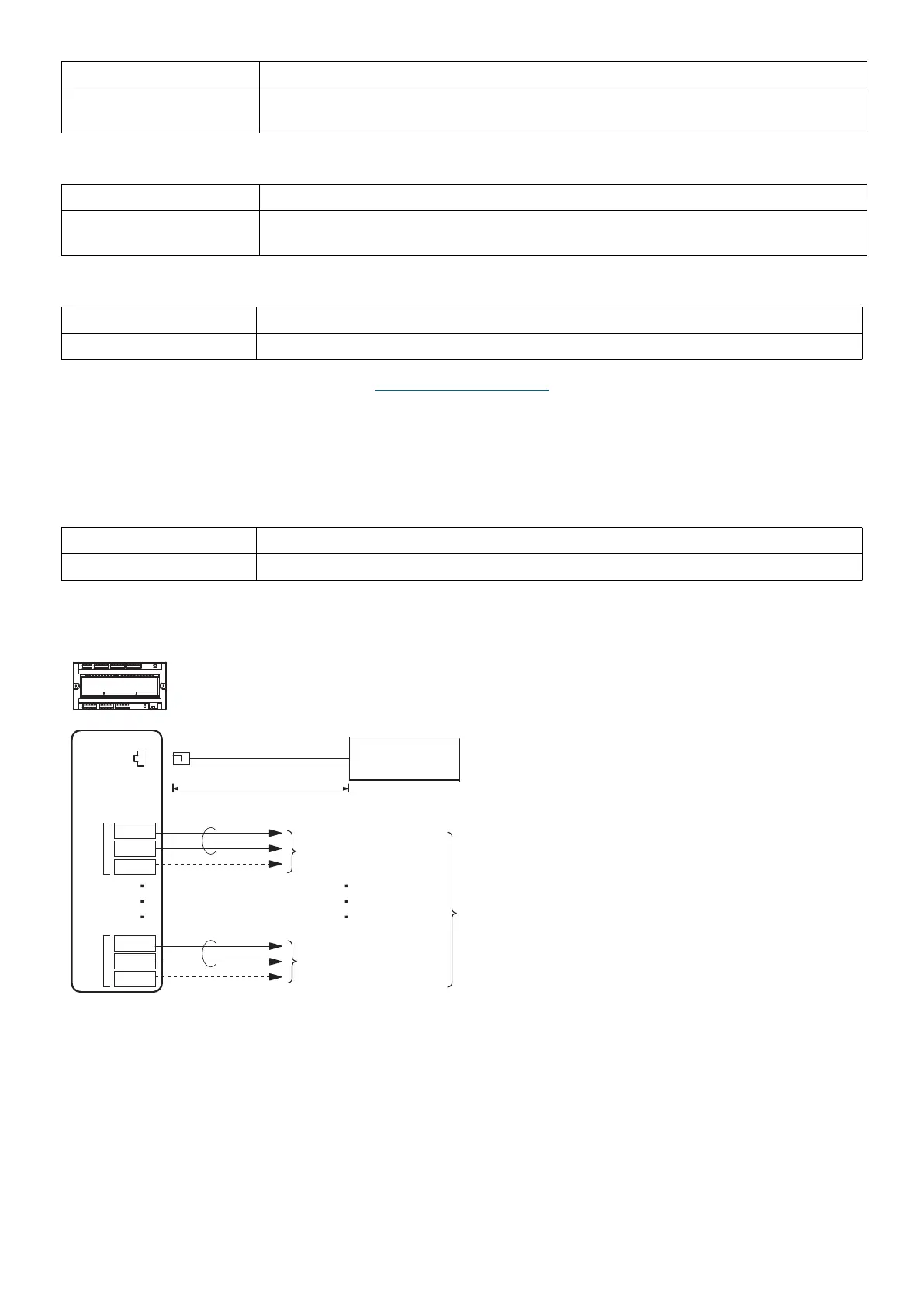

Je bekijkt pagina 30 van 36
- 29 -
※3 Relay Output 2 Specifications
※4 Card Reader Specifications
※5 For a list of compatible card formats, see “IXG-DM7(-*) (→page 9)”.
※6 Compatible access controllers:
• HEPLUS, HECOMGSM (HEXACT
Ⓡ
)
• UGVBT (AIPHONE)
※7 Audio output specifications
■ IXGW-LC
Output method Form C dry contact (N/O or N/C)
Contact rating 24 VAC, 3A (resistive load)
24 VDC, 3A (resistive load)
Output method Form C dry contact (N/O or N/C)
Contact rating 24 VAC, 0.5A (resistive load)
24 VDC, 0.5A (resistive load)
Power requirement 10.8 - 14.5 VDC at 250mA
Interface Wiegand
Output impedance 600 Ω
Audio output volume 300 mVrms (at 600 Ω termination)
NO
COM
NC
NO
COM
NC
RY1 RY20
Lift Control Adaptor
IXGW-LC
LAN(PoE)
IEEE802.3 af
Cat-5e/6 straight
100m(330')
Relay Output 1
※1
Relay Output 20
※1
PoE switch
Lift Controller
PE0.65-1.2 (17-22AWG)-2C
PE0.65-1.2 (17-22AWG)-2C
