- 27 -

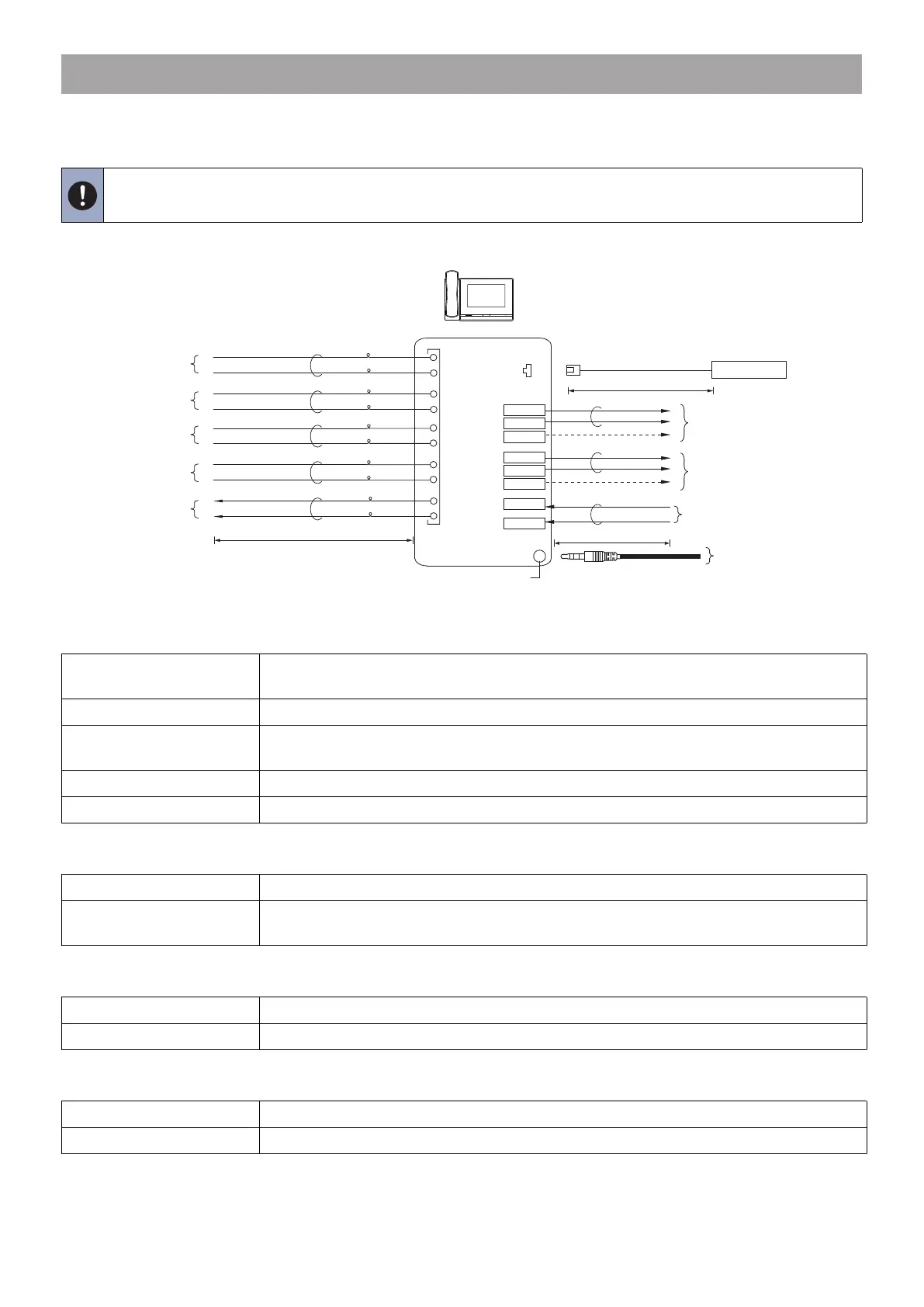

Wiring Connection
■ IXG-MK
※1 Contact Input Specifications
※2 Relay Output Specifications
※3 External Speaker Output Specifications
※4 Paging Audio Input Specifications
• Insulate and secure unused low-voltage lines and the connector-attached lead wire.
Input method Programmable dry contact (N/O or N/C) (The operation will not be performed again even if the
input continues at the time of recovery.)
Detection Time Range 0 (Momentary), 200-2000 msec, 3-600 sec can be set.
Contact resistance Make: 700 Ω or less
Break: 3 kΩ or more
Terminal short-circuit current 10 mA or less
Voltage between terminals 5.5 VDC or less (between open terminals)
Output method Form C dry contact (N/O or N/C)
Contact rating 24 VAC, 1A (resistive load)
24 VDC, 1A (resistive load)
Output impedance 8 Ω
Maximum output power 0.5 W
Input impedance 600 Ω
Input audio level 50 mVrms
B+
B-
NO1
PE0.65 - 1.2(17 - 22AWG)-2C
PE0.65 - 1.2(17 - 22AWG)-2C
PE0.65 - 1.2(17 - 22AWG)-2C
PE0.65 - 1.2(17 - 22AWG)-2C
PE0.65 - 1.2(17 - 22AWG)-2C
S1
S1E
S2
S2E
S3
S3E
S4
S4E
SP
SP
COM1
NC1
NO2
COM2
NC2
PE0.8(20AWG)-2C
PE0.8(20AWG)-2C
PE0.65 - 1.2(17 - 22AWG)-2C
Guard Station
IXG-MK
※
IEEE802.3 af
Cat-5e/6 straight
PoE Switch
100m (330')
Relay Output 1
※2
Relay Output 2
※2
Voice Input/Output
(CTIA standard compatible)
3.5 mm 4-conductor stereo
mini plug(1.8m (6'))
3.5 mm 4-conductor stereo mini jack
15m (49')
External Speaker Output
※3
Contact Input 4
※1
Contact Input 3
※1
Contact Input 2
※1
Contact Input 1
※1
Brown
Red
Orange
Yellow
Green
Blue
Purple
Gray
White
Black
LAN/PoE
※
Paging input
※4
Polarized
2m (7')
