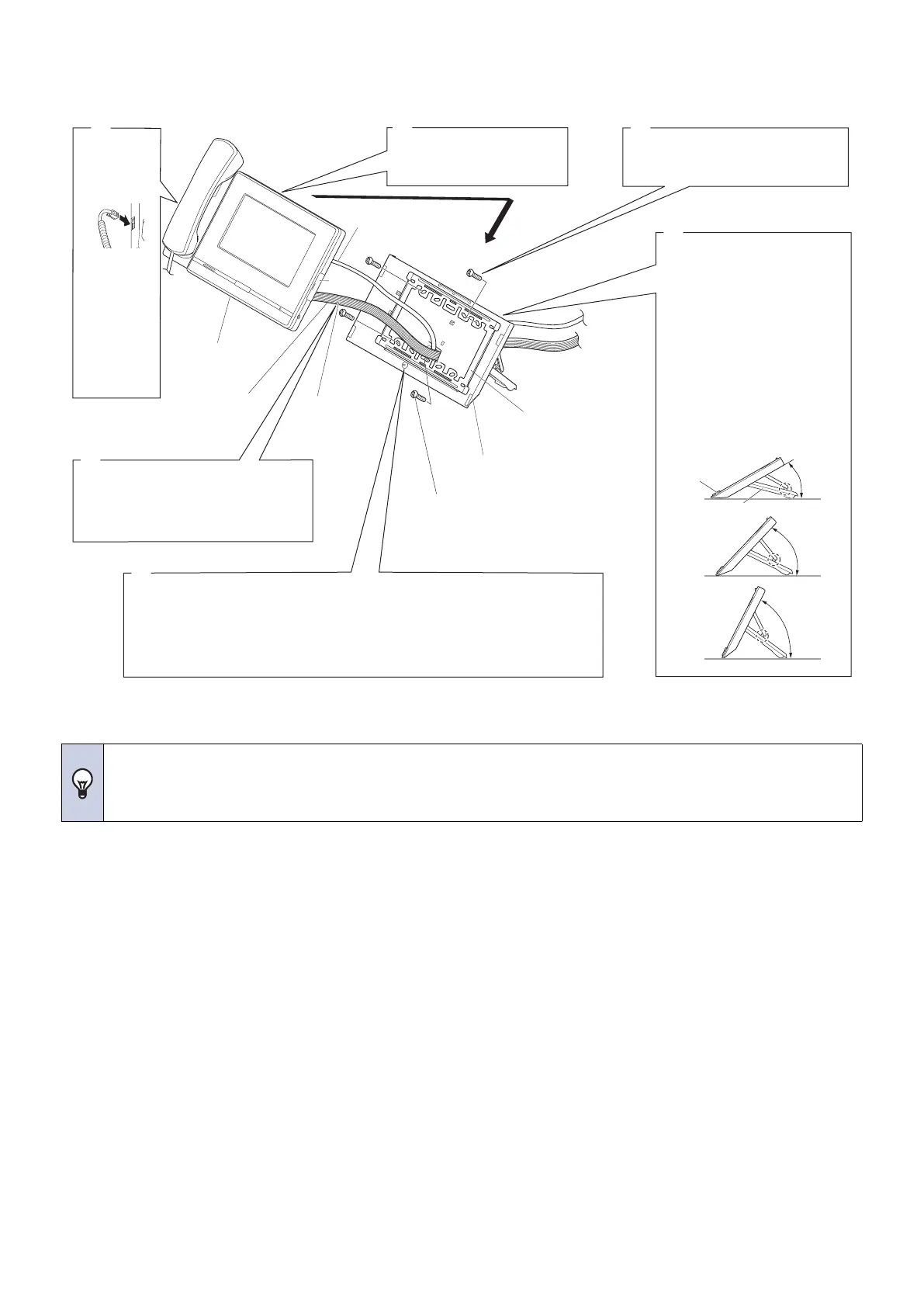

● Mounting the station on the desktop stand
• Fasten the mounting bracket to the desktop stand with the supplied screws.
• If necessary, secure the Cat-5e/6 cable or low-voltage line using the included cable tie.
• When using the Desktop mounting, use the included Desktop stand.
5
2
1
4
3
6
Assemble the desktop
stand.
※
Position the desktop stand on a
flat surface for stability.
Fix the desktop stand in place, if
necessary.
※
The desktop stand can be
adjusted to any of 3 angles.
Fit the support into the grooves
on the stand to set it at the
desired angle.
Stand
※Insert a microSD card into the microSD card slot if needed.
30°
45°
60°
Attach the mounting bracket to
the desktop stand.
Connect the option connector
(included), low-voltage lines, and
Cat-5e/6 cable to the station.
Attach the station to the
mounting bracket.
Station
Option connector
(included)
Desktop stand screws (included) ×4
Desktop stand (included)
Mounting bracket
(attached to the
back of the station)
Low-voltage
lines
Cat-5e/6 cable
※
Attach the
handset.
Fasten the station and the desktop stand together with a desktop-
stand fastening screw (included) from the back of the desktop stand.
(Viewed from the back, there is a desktop-stand fastening screw hole in the lower
center.)
Support
① Insert the
connector
into the
station until it
clicks.
② Set the
handset on
the station.
