■ IXG-DM7(-*)
Illustrations show the IXG-DM7-HIDA. Installation procedures and connections will vary depending on the model.
※1 Lights when accepting reboot.
※2 Flashes when the terminal starts up or when accepting ID/password initialization.
※3 Compatibility card
Included accessories
※1 IXG-DM7 only
※2 IXG-DM7-10K only
※3 Magnet bracket & magnet (IXG-DM7-HIDA only)
Card type High Frequency (13.56MHz) HID iCLASS, SEOS, HID iCLASS SR, HID iCLASS SE, HID
MIFARE Classic, HID Mifare DES Fire EV1
Low Frequency (125kHz) HID Proximity, Indala Proximity
Card format H10301 (26-bit Wiegand Format)
H10302/H10304(37-bit Wiegand Format)
35bit/48bit Corporate 1000
Instlation Manual
Product warranty
※1
(for Japanese market)
Notice
Chinese RoHS
declaration
※1
Option connectors
(2pin x 1, 3pin x 2,
5pin x 1, 7/9pin
※2
x 1)
Special screwdriver x 1 Mounting-bracket
screws x 4
Mounting bracket x 1 Contact us

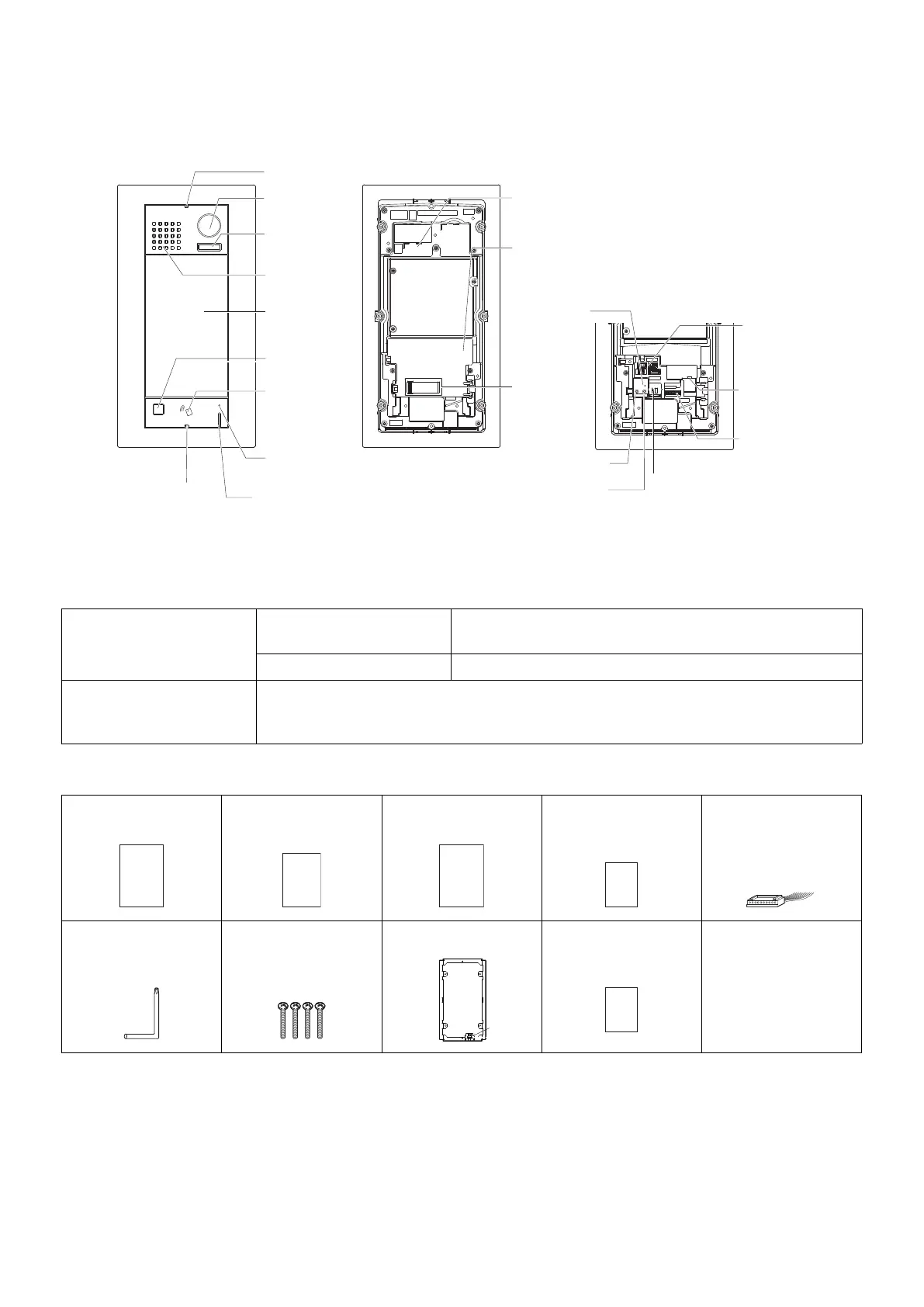

Front view
Special screw
Camera
LED for night
illumination
※1※2
LCD
Touchscreen
Motion Sensor
Special screw
Back view
Terminal cover
Speaker
MAC address
Microphone
Connectors
LAN (PoE) port
micro SD card slot
Reset button (SW1)
micro SD card eject
button (SW2)
micro SD card
indicator
(Red)
Under the Terminal cover
Cable Clamp
(IXG-DM7-
HIDA only)
Card reader indicator (Red/Green)
(IXG-DM7-HIDA only)
Card reader
(IXG-DM7-
HIDA only)
※3
Connector
(IXG-DM7-10K
only)
※3
