12
34

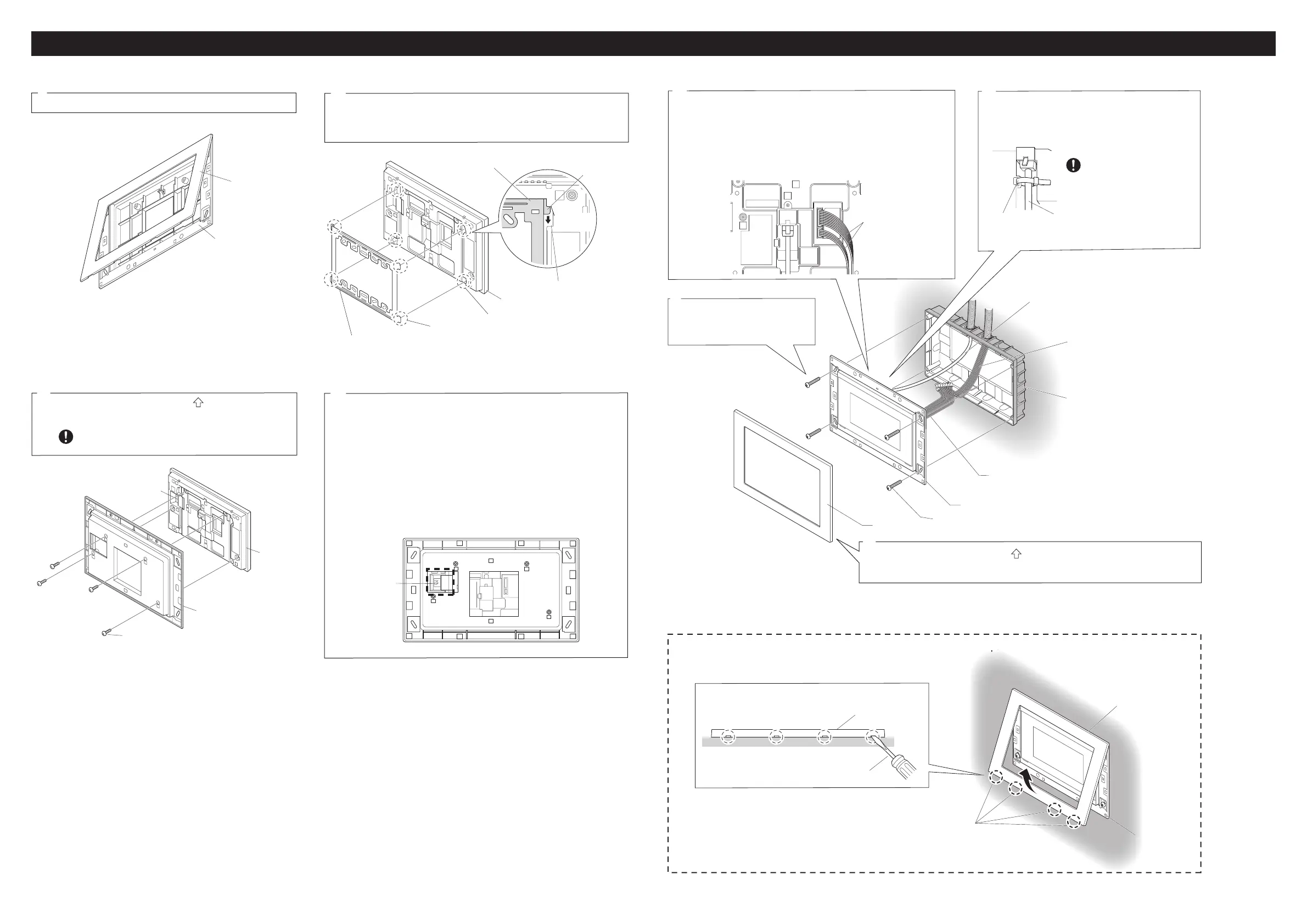

Remove the panel from the frame.
Remove the mounting bracket from IXG-2C7(-L).
Slide the mounting bracket down and remove it.
* The mounting bracket is not needed.
Tab
Mounting bracket
Slide down
Slot
Mounting bracket
Tabs (4 locations)
Slots (4 locations)
[Back]
Position the frame with “UP ” facing up,
and attach the frame to IXG-2C7(-L).
[Back of the frame]
Frame-mounting screws 4 (included)
Frame
[Back]
microSD card slot
[Back]
* If microSD card is not needed, go to step 5.
(1) Pull the microSD card slot cover to open.
(2) Insert a microSD card.
*Push it in until you hear it click into place.
*When you take the microSD card out, push the microSD card
until you hear it click, and then remove it.
(3) Return the cover.
Insert a microSD card into the microSD card slot
if recording function is used.
Be careful not to scratch the monitor when
performing attachments.
IXG-2C7(-L)
IXG-2C7(-L)
* Using anything other than the bundled screws may damage the device.
Frame
Panel
microSD card slot
Position the panel with “UP ” facing up, and press all around
the panel to fit it firmly in place.
Panel
Attach the frame to the
installed back box.
[Back]
Cat-5e/6 cable
How to remove the panel from the installed station
Place a flat-bladed screwdriver in depression at the bottom and pull the panel toward you.
* Refer to the “Installation Manual” of IXG-2C7(-L) for
wiring connections.
e
p
p
p
p
p
p
an
[Underside]
Flat-bladed screwdriver
Panel
Depression
Fasten Cat-5e/6 cable to the station
with the cable tie (included)
Cable tie
Cat-5e/6 cable
Fasten Cat-5e/6 cable with cable
tie to ensure a good connection.
Connect the option connectors (included in
IXG-2C7(-L)) to the low-voltage lines using crimp-
ing method, then insert the option connectors and
Cat-5e/6 cable to the station.
Frame
Wall-mounting screws (included) p2-x4
Option connectors (included)
Low -voltage lines
Back box
Panel
Frame
56
7
8
Option connectors
How to Install
Installation of Tenant Station
