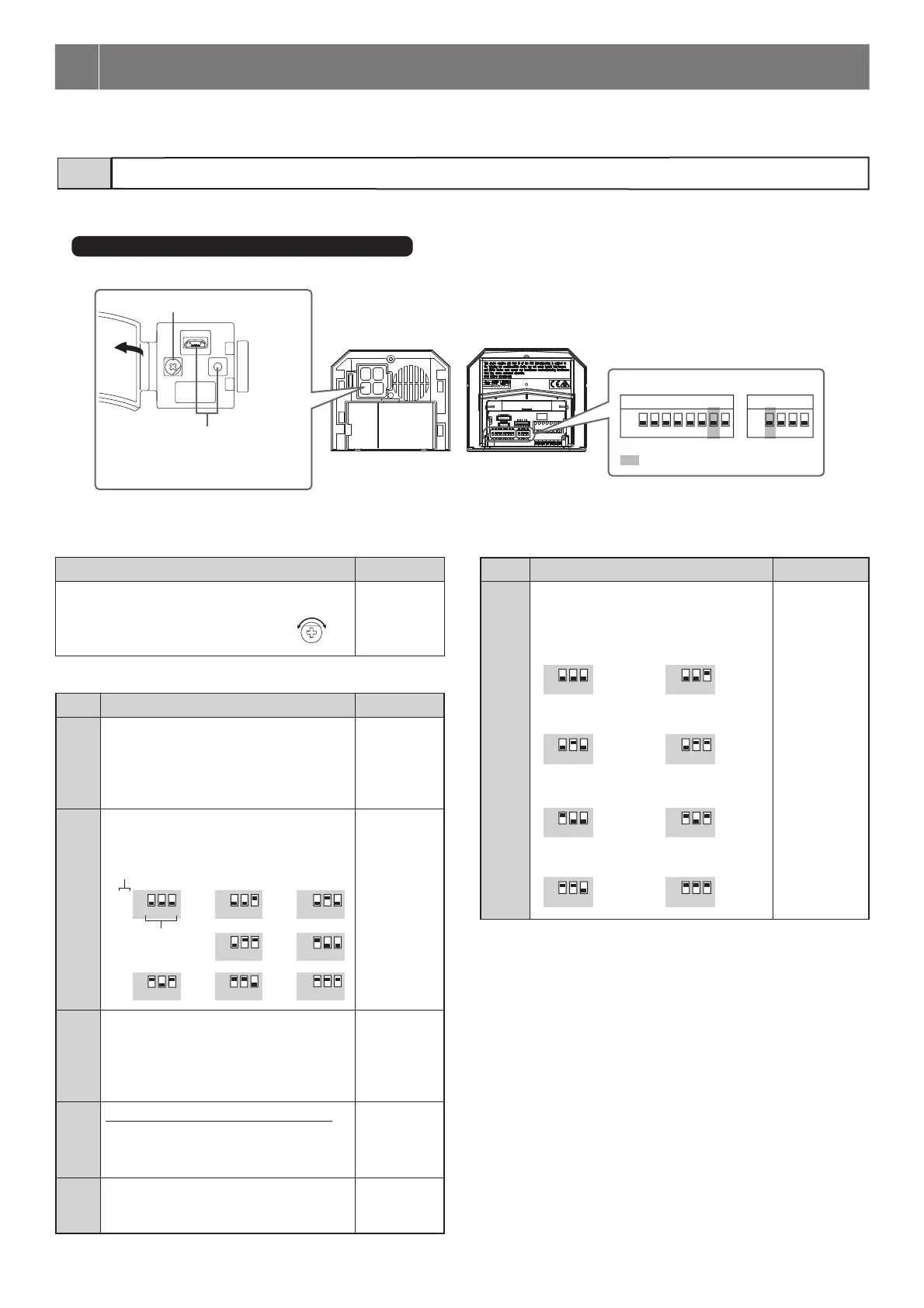

Switch settings5-1
The settings of each unit can be confi gured manually by setting the switches, as described below.
* It is recommended to discuss the installation and setting method with the person responsible for installation in advance.
5 SETTINGS
23
SW2
1 2 3
4
5 6 7
8
SW3
1 2 3
4
ON
OFF
ON
OFF
1
DIP switches
(Front) (Rear)
1 VR1 dial (inside the cover)
Function Default
Sets the door release duration time.
Setting range:
M (Momentary)/0.5-20 seconds
M
(Momentary)
2 SW2
No. Function Default
1
Sets this entrance station as used for either
a multi building system or single building
system.
ON: Multi building system
OFF: Single building system
OFF
2 to 4
Sets the ID of this entrance station.
* (9) - (16): GT-BCXB-N Common trunk
line 2
2
(10)
3
(11)
5
(13)
8
(16)
4
(12)
7
(15)
6
(14)
1
(9)
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
2 3 4 234 2 3 4
2 3 4
2 3 4
2 3 4
2 3 4
2 3 4
2: OFF
3: OFF
4: OFF
(ID 1)
5
Sets the ability of this entrance station to
be monitored by the guard station or
residential/tenant station.
ON: Allowed
OFF: Not allowed
OFF
6
* This setting is needed only in France.
Set the transmission method for VIGIK.
ON: HEXACT® version
OFF: AIPHONE version
OFF
8
Resets the passcode for installer or
administrator when this unit is initialized
by setting this switch to ON.
OFF
2 SW3
No. Function Default
2 to 4
Sets the language for audio guidance by
the combination of the switch 2 to 4
settings.
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
2 3 4 234
2 3 4 234
2 3 4 234
2 3 4 234
2: OFF
3: OFF
4: OFF
(No guidance)
■ Entrance station (modular type)
Audio module (GT-DB, GT-DB-V, GT-DB-VN)
ID number
Positions of
switch 2 to 4
(No guidance)
French
Spanish
Norwegian
English
German
Dutch
(Tone)
0.5 M
20
103
USB terminal and program switch
* Used for settings only.
(Refer to the Setting manual GT SYSTEM/
Standard & Expanded System.)
: Do not change these switches.
