- 21 -

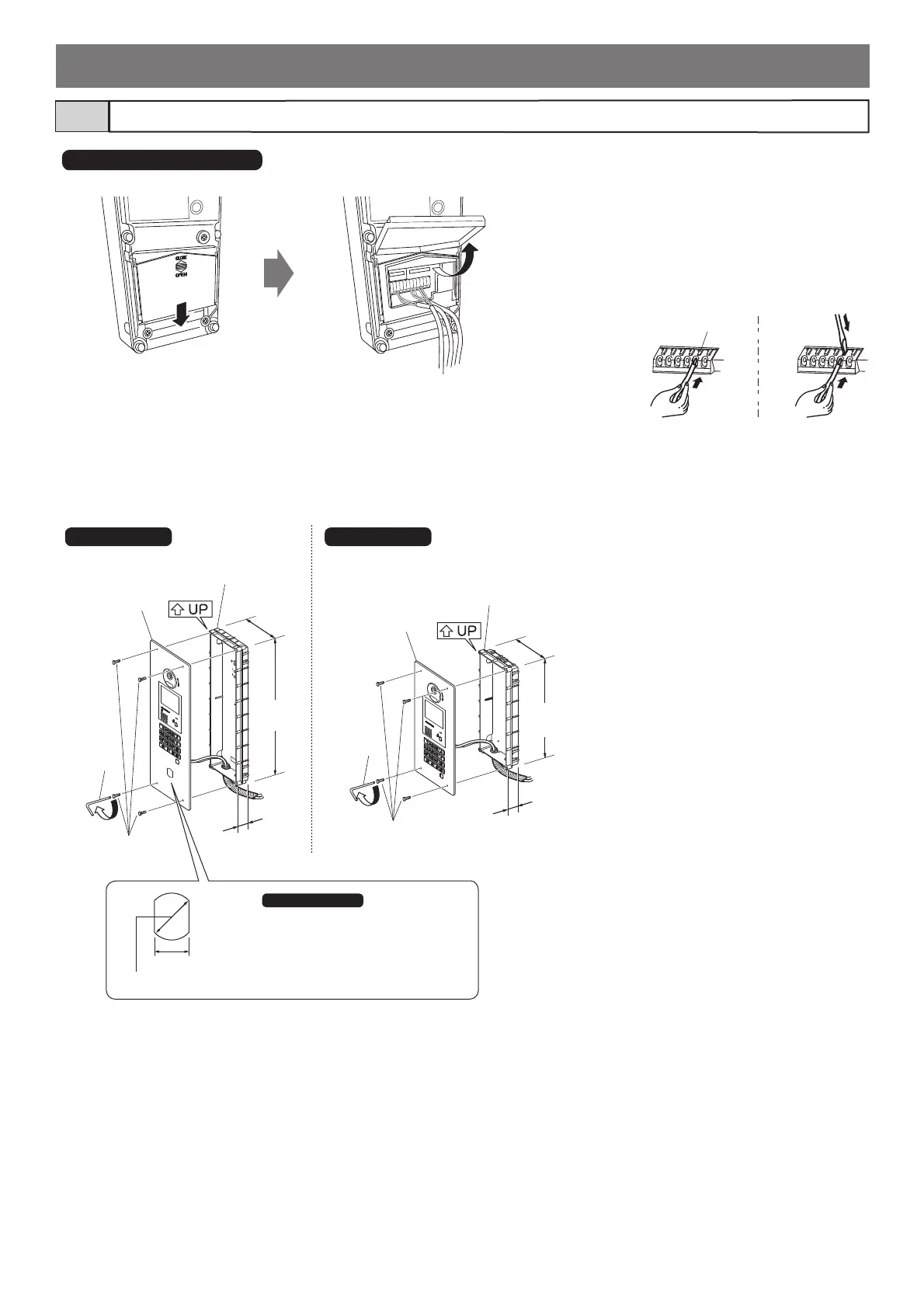

Entrance station (all-in-one type)3-5
1
3
4
3
4
GT-4B (4-module back box)
(not included)
GF-3B (3-module back box)
(not included)
Special
screwdriver
Special
screwdriver
Unit
Unit
110 mm
(4-5/16")
110 mm
(4-5/16")
400 mm
(15-3/4")
295 mm
(11-5/8")
44 mm
(1-3/4")
44 mm
(1-3/4")
Mounting screws ×4
(included)
Mounting screws ×4
(included)
1 Slide down and then open the cover,
and connect wires to the terminal
block.
Insert the wire into the direct terminal.
Press the tab to easily insert the wire
into the terminal, then release.
2 Close the cover until it clicks into
place.
3 Mount the unit in the fl ush mount
back box.
4 Tighten the locking screws using the
special screwdriver.
GT-DMB-LVN/GT-DMB-N
GT-DMB-LVN GT-DMB-N
NOTE (
GT-DMB-LVN only
):
For installing VIGIK or a key cylinder, refer
to the instructions included with the product.
18.4 mm (3/4")
Ø25 mm (1")
Release button
