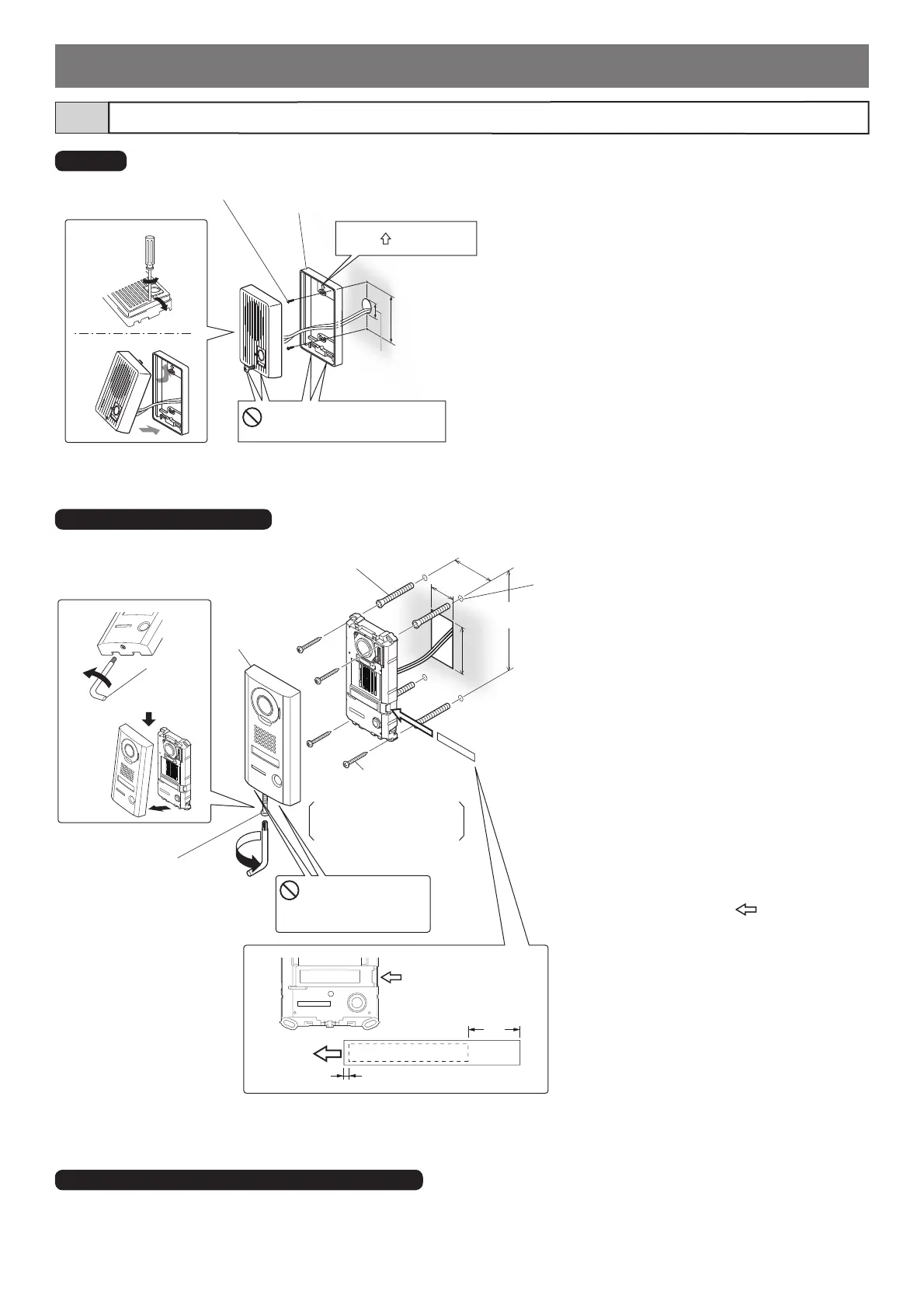

Door station (for residential/tenant station)
3-8
1
Loosen the screws and remove the mounting frame
from the main unit.
2 Mount the mounting frame on the wall.
* When using a gang box, a single gang box is
recommended.
3 After connecting the wiring, mount the main unit to
the mounting frame.
• For surface wiring, insert wiring from the cable inlet
(lower part).
1
2
Mounting frame
Do not block the drainage
holes.
Place " UP" upwards.
83.5 mm (3-5/16")
JK-DA, JK-DV, JK-DVF (for GT-2C-L, GT-2C only)
Refer to the installation manual included with the product.
Mounting screws x 2 (included)
GT-D
1 Loosen the special screw with the
special screwdriver, and remove the
front panel.
2 Insert the transparent nameplate.
1 Peel off the protective seals on the
plate (both sides).
2 Use a permanent pen to write the
resident name on the transparent plate.
* Be sure to leave 25 mm (1") of white
space on the right end to account for
insertion.
3 Insert the fi lled-in transparent
nameplate.
(indicated with
in diagram).
3 Connect wires to the unit.
4 Mount the unit to the mounting
surface.
* Use board anchors or concrete plugs as
needed.
5 Replace face plate and tighten special
screw with the included special
screwdriver.
1
2
ABCDEFG
3
4
5
Special
screwdriver
(included)
Special screw
Insert transparent
nameplate here.
Tighten
Loosen
Vandal
resistant
front panel
Drainage hole
Do not block the
drainage holes.
75 mm
(2-15/16")
(The diameter and the depth of the holes on the wall depend
on the anchors suitable for the mounting screws used.)
50 mm
(1-15/16")
150 mm
(5-7/8")
70 mm
(2-3/4'')
2 mm (1/16")
25 mm
(1")
Mounting screw × 4
(not included)
Screw shaft: Ø4.1
Slotted Head: Ø8.2 or less
Height: 3.0mm (1/8") or less
Anchor x 4
(Prepare anchors according to the size of the
mounting screws.) (not included)
JO-DV (for GT-MKB-N only)
ø30mm (1-3/16”)
