- 24 -

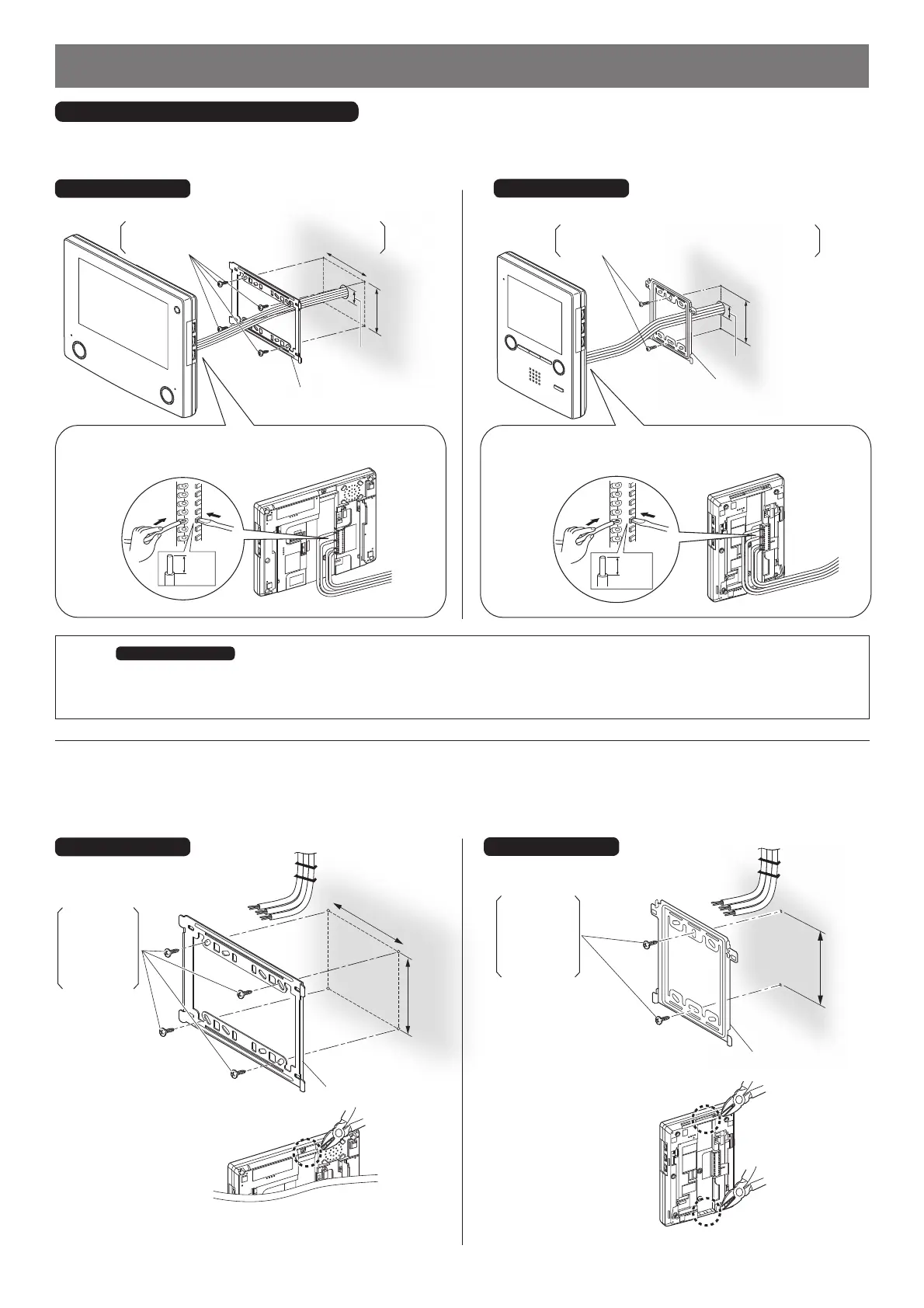

Surface wiring
The wires can be routed to the top or bottom of the station.
Cut the cable inlet to allow passage of the wiring into the station from above.
If there is a large amount of wiring, strip away the jacket of the wire up to the cable inlet.
* To pass the wire through the
back of the station, cut out the
cable inlet.
Mounting bracket
83.5 mm
(3-5/16")
1. Press the release button (to insert or remove the wire).
2. Insert the wire into the terminal.
83.5 mm
(3-5/16”)
92 mm (3-5/8”)
ø30mm
(1-3/16”)
1
2
8 mm
(5/16")
Back wiring
Cut a small round hole (ø30mm (1-3/16”)) in the wall for routing wires.
NOTES (
GT-1C7-L/GT-1C7 only
):
• The station has a speaker on the back. When using a gang box for routing the wires, use a single gang box and attach the mounting bracket to
the wall as shown above. If a 2- or 3-gang box is used, audio quality may be altered.
• Depending on the material of the wall, volume and quality of sound coming from the speaker may be altered.
GT-1C7-L/GT-1C7
GT-1C7-L/GT-1C7
* To pass the wire through
the back of the station, cut
out the cable inlet.
Mounting bracket
83.5 mm
(3-5/16")
83.5 mm
(3-5/16”)
Mounting bracket
Mounting bracket
GT-1M3-L/GT-1M3
GT-1M3-L/GT-1M3
OR
ø30mm (1-3/16”)
Mounting screw × 4 (not included)
Screw shaft: Ø4.1 or less
Slotted head: Ø8.2 or less, 3.0mm or less in height
Mounting screw × 2 (not included)
Screw shaft: Ø4.1 or less
Slotted head: Ø8.2 or less, 3.0mm or less in height
Mounting screw × 4
(not included)
Screw shaft:
Ø4.1 or less
Slotted head:
Ø8.2 or less,
3.0mm or less
in height
GT-1C7-L/GT-1C7, GT-1M3-L/GT-1M3
Mounting screw × 2
(not included)
Screw shaft:
Ø4.1 or less
Slotted head:
Ø8.2 or less,
3.0mm or less
in height
1. Press the release button (to insert or remove the wire).
2. Insert the wire into the terminal.
1
2
8 mm
(5/16")
92 mm (3-5/8”)
