- 44 -
1
Emergency alarm
An emergency alarm switch can be connected.
GT-2C-L/GT-2C, GT-1C7-L/GT-1C7,
GT-1M3-L/GT-1M3, GT-1A, GT-1D
N/C contact (locked type)
DC 12 V/0.1 A or higher
GT-2C-L/GT-2C
N/O contact (non-locked type)
DC 12 V/0.1 A or higher
2
Call notifi cation/Emergency call notifi cation
Using the external signaling relay GT-RY allows for an external
buzzer to be linked during calling.
3
Option contact output
External units such as lights or elevators can be operated with
the option button.
Contact spec.: Maximum load AC/DC 24 V, 1 A
Minimum load DC 5 V, 0.1 A
4
Security/Utility inputs 1 to 3
Input method
N/O (Normally Open) or N/C
(Normally Closed) contact
External sensor input (start signal only
detection method)
Detection confi rmation time
100 msec or more
Contact resistance
N/O: 1 k or less
N/C: 50 k or more
Terminal short current
1 mA or less
Voltage between terminals
DC 3.3 V or less (when open between
terminals)
5
Video out
Video can be output to DVR's, etc.
NTSC, 1 Vp-p/75
Wiring distance: 3 m
NOTE: The screen playing recorded pictures is not output.
6
Video out notifi cation
External monitors can be activated via the external signaling
relay GT-RY.
GT-RY contact spec.: AC/DC 24 V, 0.5 A
7
Doctor call (automatic entry)
This makes it possible to use the doctor call (automatic entry)
function at residential/tenant stations.
To enable the doctor call:
GT-1C7-L/GT-1C7, GT-1M3-L/
GT-1M3, GT-1A
Short the DC terminal.
GT-1D
Cut (open) the jumper JP4.
8
Doorbell
A doorbell can be connected to a residential/tenant station.
N/O contact (non-locked type)
DC 12 V/0.1 A or higher
NOTE: One doorbell per residential/tenant station. Do not
connect two or more doorbells to a residential/tenant
station.
(
*
)
(
*
)
NP
GT-RY
Timer
relay
Buzzer
To option
connector
White
Blue
Orange
Orange

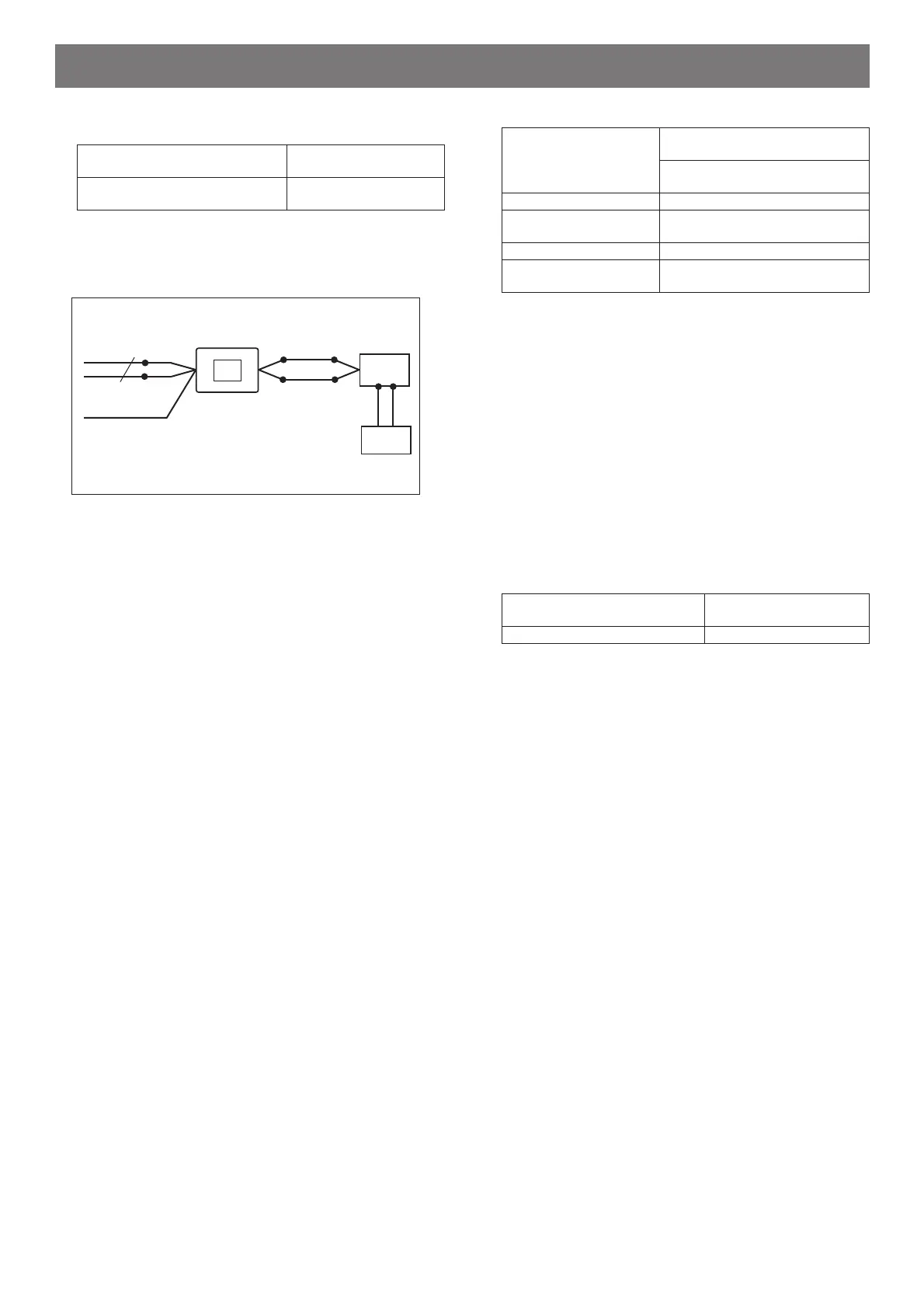

External signaling relay connection example
(
*
): Third party product
Black (unused)
GT-RY contact spec.: AC/DC 24 V, 0.5 A
