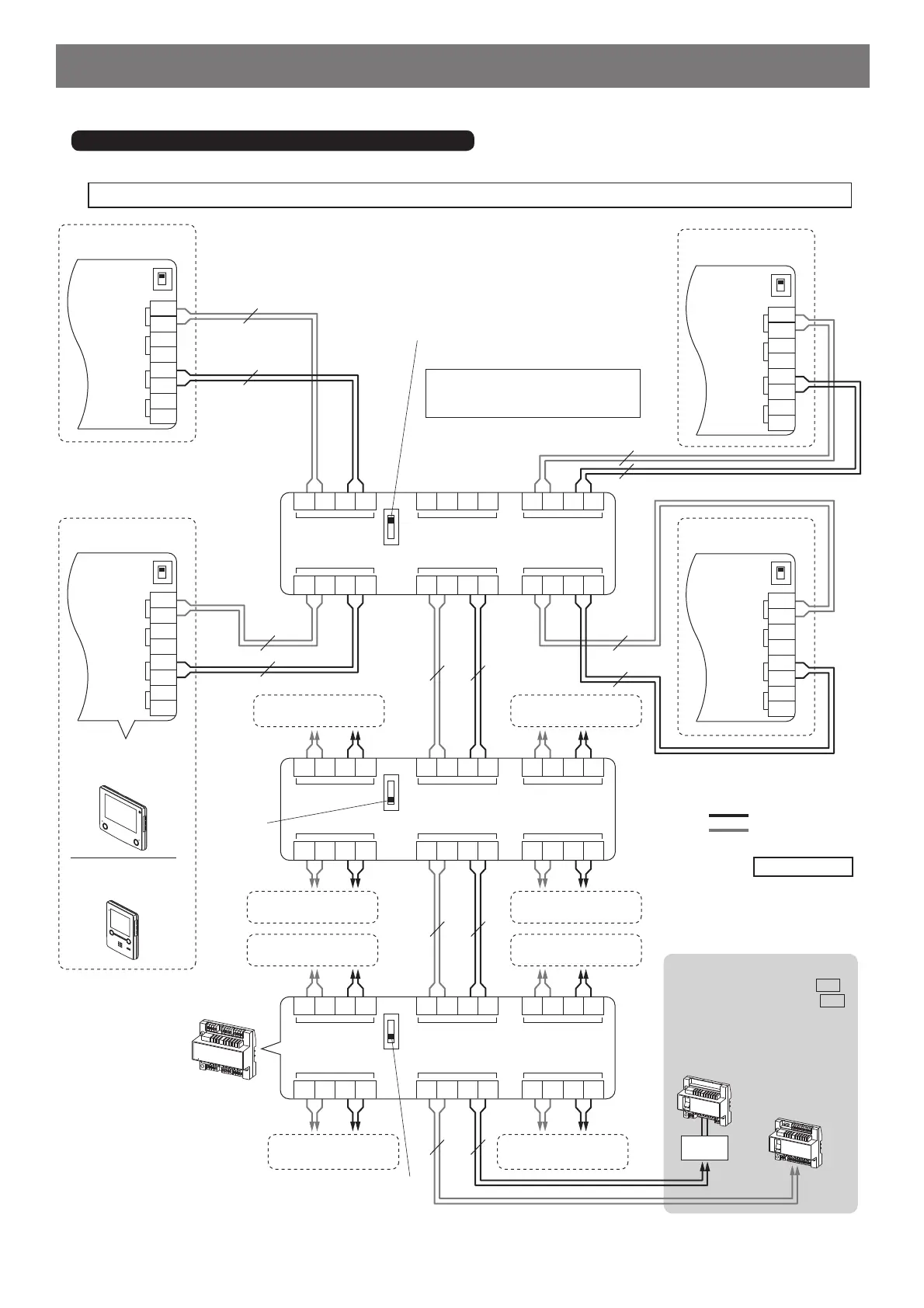

■ GT-4Z wiring method (using the 4-way video junction unit)
* The following diagram is a wiring example using the residential/tenant stations GT-1C7-L/GT-1C7 and GT-1M3-L/GT-1M3.
B
A
SW1
OUT(2)
OUT(4)
B1
B2
R1
R2
B1
B2
R1
R2
IN
LINE OUT
B1
B2
R1
R2
B1
B2
R1
R2
OUT(1)
OUT(3)
B1
B2
R1
R2
B1
B2
R1
R2
SW1
OUT(2)
OUT(4)
B1
B2
R1
R2
B1
B2
R1
R2
IN
LINE OUT
B1
B2
R1
R2
B1
B2
R1
R2
OUT(1)
OUT(3)
B1
B2
R1
R2
B1
B2
R1
R2
SW1
OUT(2)
OUT(4)
B1
B2
R1
R2
B1
B2
R1
R2
IN
LINE OUT
B1
B2
R1
R2
B1
B2
R1
R2
OUT(1)
OUT(3)
B1
B2
R1
R2
B1
B2
R1
R2
OUTOUT IN IN
B1
B2
B1
B2
R1
R2
R1
R2
A
B
SW1
OUTOUT IN IN
B1
B2
B1
B2
R1
R2
R1
R2
A
B
SW1
OUTOUT IN IN
B1
B2
B1
B2
R1
R2
R1
R2
A
B
SW1
OUTOUT IN IN
B1
B2
B1
B2
R1
R2
R1
R2
A
B
SW1
B
A
B
A
GT-4Z
GT-4Z
GT-1C7-L
GT-1C7
GT-1M3-L
GT-1M3
GT-VBC
GT-BC
DP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
1P
NP
Residential/
tenant station
Residential/
tenant station
Residential/
tenant station
Residential/
tenant station
4-way video
junction unit
GT-4Z
Termination setting:
For terminating the 4-way video junction
unit, set SW1 to "A".
1 residential/tenant station can be
connected to [LINE OUT]. In this case,
set SW1 to "B".
Residential/
tenant station
Residential/
tenant station
Residential/
tenant station
Residential/
tenant station
Residential/
tenant station
Residential/
tenant station
Residential/
tenant station
Residential/
tenant station
* Connect to the bus control units.
Standard system: section
4-1
Expanded system: section
4-5
NP: Non-polarized
: Audio signal line
: Video signal line
GT-2C-L/GT-2C, GT-1C7-L/GT-1C7, GT-1M3-L/GT-1M3
NOTE: Refer to pages 34 and 35 for the wiring details of residential/tenant stations.
(Please note that images and terminal position in this manual may differ from the actual product.)
Set SW1
to "B".
Set SW1 to "B".
