- 22 -

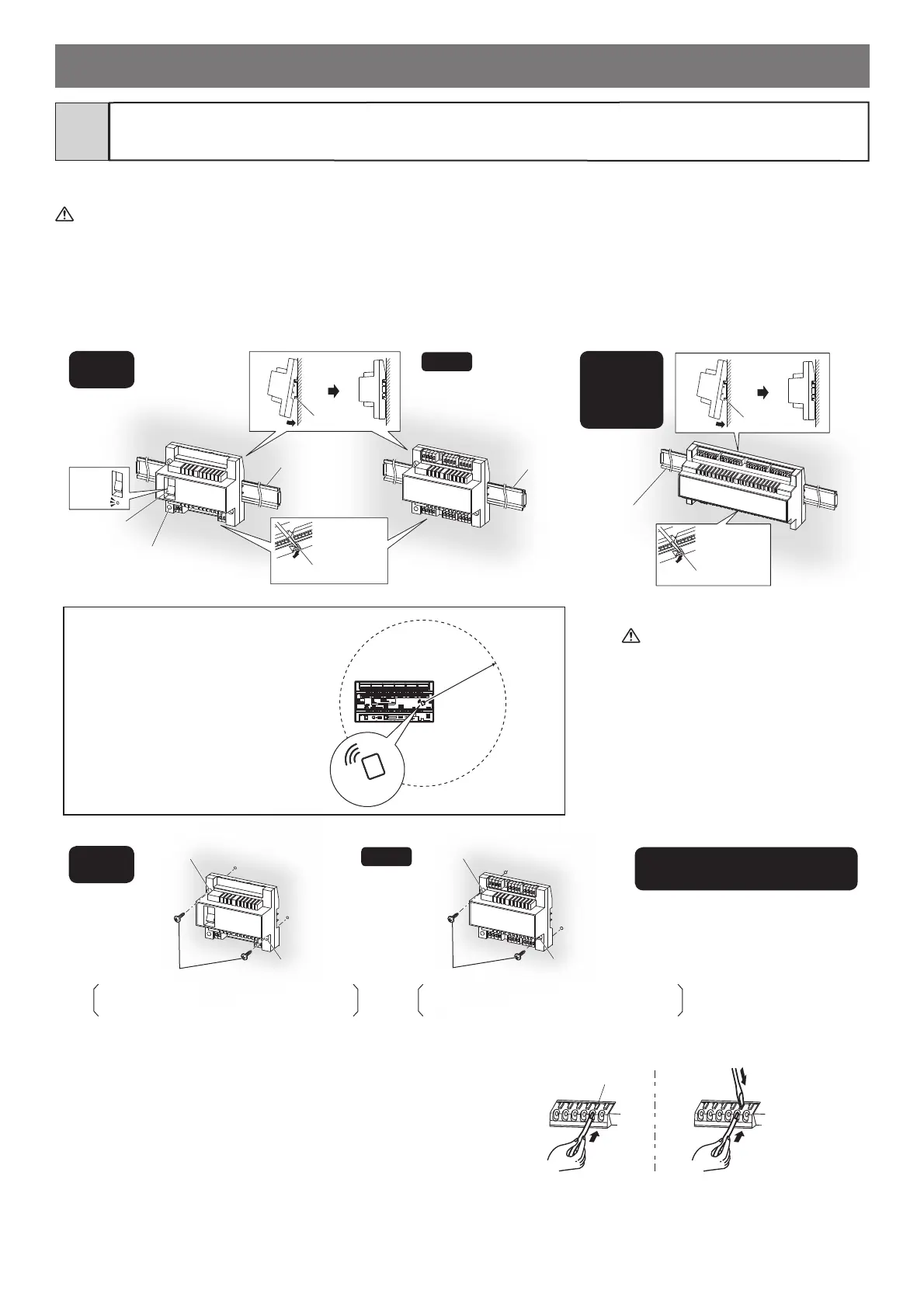

Bus control unit, 4-way video junction unit, lift control adaptor and
power supply
3-6
DIN rail mounting
The maximum cable length between the GT-BCXB-N and GT-VBX is 40 cm. Therefore, mount them side by side.
1 Mount the unit on the DIN rail and then click the unit into place, or mount the unit directly to a wall.
• GT-BC, GT-VBC, and GT-4Z do not include the DIN rail. Use the W-DIN11 for mounting these units.
• GT-BCXB-N, GT-VBX, GT-MCX and GTW-LC are mounted to the included DIN rail.
2 When removing the unit, pull the lock release lever down.
Refer to the installation manual included
with the product.
2
1
2
1
DIN rail
DIN rail
DIN rail
(not included)
DIN rail
(not included)
DIN rail
(included)
Power switch
ON
OFF
Power on LED
Lock release lever
Lock release lever
Screw hole
Screw hole
Screw hole
Screw hole
GT-4Z
GT-4Z
GT-BC
GT-VBC
GT-BC
GT-VBC
GT-BCXB-N
GT-VBX
GT-MCX
GTW-LC
PS-2420DM, PS-2420, PS-2420S
PS-2420UL, PS-2420BF
Wiring
Insert the wire into the terminal. Press the tab to easily insert the wire
into the terminal, then release.
* The image of the terminals may differ from the
actual product.
• Expanded video bus control unit GT-VBX
Connector cable length: 40 cm
Release button
Mounting screw × 2 (not included)
Screw shaft: Ø4.1 or less
Slotted head: Ø8.2 or less, 3.0mm or less in height
Mounting screw × 2 (not included)
Screw shaft: Ø4.1 or less
Slotted head: Ø8.2 or less, 3.0mm or less in height
NOTES:
• Keep wiring away from NFC mark, as it may
disturb the audio or video signals.
• Be sure to mount the other devices more than
20 cm (7-7/8") away from NFC mark of
GT-BCXB-N.
More than
20 cm
(7-7/8")
NFC mark
GT-BCXB-N
