13Wolf-7 PRO USER MANUAL
NOTE:
The sharpest image will only be visible when the objective lens and eyepiece lens are both
properly focused.
2.3.2 IR ILLUMINATOR OPERATIONS
NOTE:
The built-in IR illuminator provides additional illumination (when needed) while viewing scenes or
targets from a short distance (up to 3 meters).
To turn built-in IR Illuminator on, pull the operation switch out and turn it from ON to the IR position.
LED indicators in field of view of both eyepieces will appear and indicate the IR illuminator is
operating.
Rotate the switch to ON position to deactivate the IR.
NOTE:
When you turn off the goggles, the IR illuminator will also turn off.
2.3.3 HEAD-MOUNTED OPERATION
Perform the following procedures for head-mounted operation.
1. Put the head mount on per the instructions in Paragraph 2.1.4.
NOTE:
Before attaching the goggles, loosen the eye relief locking fixation knob and slide the head mount
socket all the way forward; this will make it easier to align the goggles, eyecups, and eyepiece
lenses with your eyes.
2. To set your eye relief, loosen the eye relief adjustment locking knob (Figure 2-6). Move the
goggles back towards your eyes until the eyecups are comfortably sealed around your eyes.
Tighten the locking knob.
3. Turn the goggles ON. Adjust the tilt using the tilt adjustment knob, until you obtain a comfortable
viewing angle.
HEAD MOUNT
SOCKET
RELEASE LEVER
EYE RELIEF ADJUSTMENT
LOCKING KNOB
TILT ADJUSTMENT KNOB
VERTICAL ADJUSTMENT
LOCKING KNOB

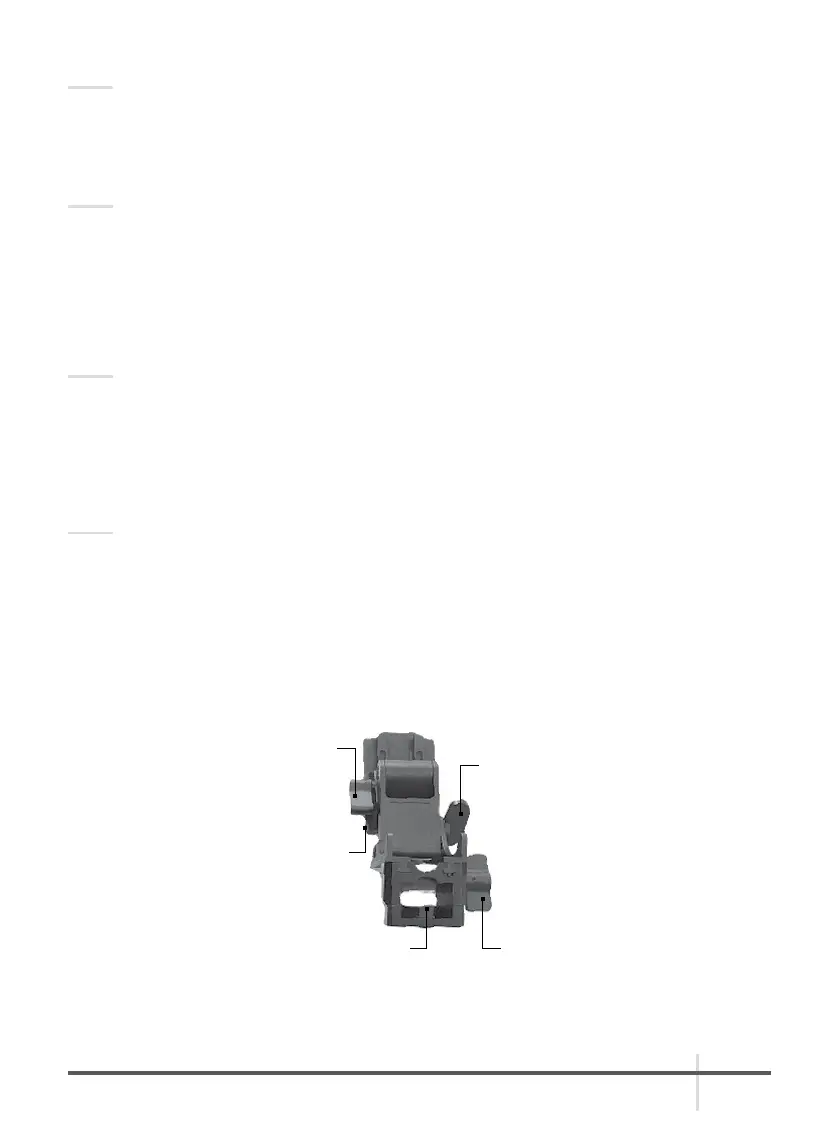

FIGURE 2-6. HEADMOUNT/HELMET MOUNT ADAPTER OPERATION
