2.1.3 MOUNTING THE WOLF-7 PRO TO HEADGEAR ASSEMBLY
Adjust the headgear first before attaching the Wolf-7 PRO to it.
1. Loosen all the straps and place the headgear on your head.
2. Fit the headgear to your head size. Tighten the straps until the headgear fits firmly.
3. Remove the already adjusted headgear from your head.
4. Install the transfer adapter (Figure 2-2, 1) to mounting rail on the goggles body and fix adapter
with the screw (2).
5. Align the prism (3) of the transfer adapter to the head mount socket (4). Hold the latch lever (5)
down while installing the goggles into the head mount socket. Release the latch when the
goggles is fully engaged in the socket.
6. Align the head mount (6) with the headgear bracket (7). Insert the top edge of the mount under
the keeper on the heaggear bracket and rotate it downward until the latch clicks into place.
To release the mount from the bracket, press the release lever (8) on the side of head mount.
To dismount the Wolf-7 PRO from the head mount, push down on the lever (5) and remove the unit.
NOTE:
The included head/helmet adapter can be used to attach the Wolf-7 PRO to headgear or helmet
mount. The transfer adapter also can be used to attach the Wolf-7 PRO to standard PVS headset/
helmet mounts.
2.1.4 NECK STRAP INSTALLATION
Slip the ends neck strap into the eyelets on
the goggles body. Thread the strap through
the buckles as shown on the Figure 2-3.
2 3
4
8
6
7
1
5

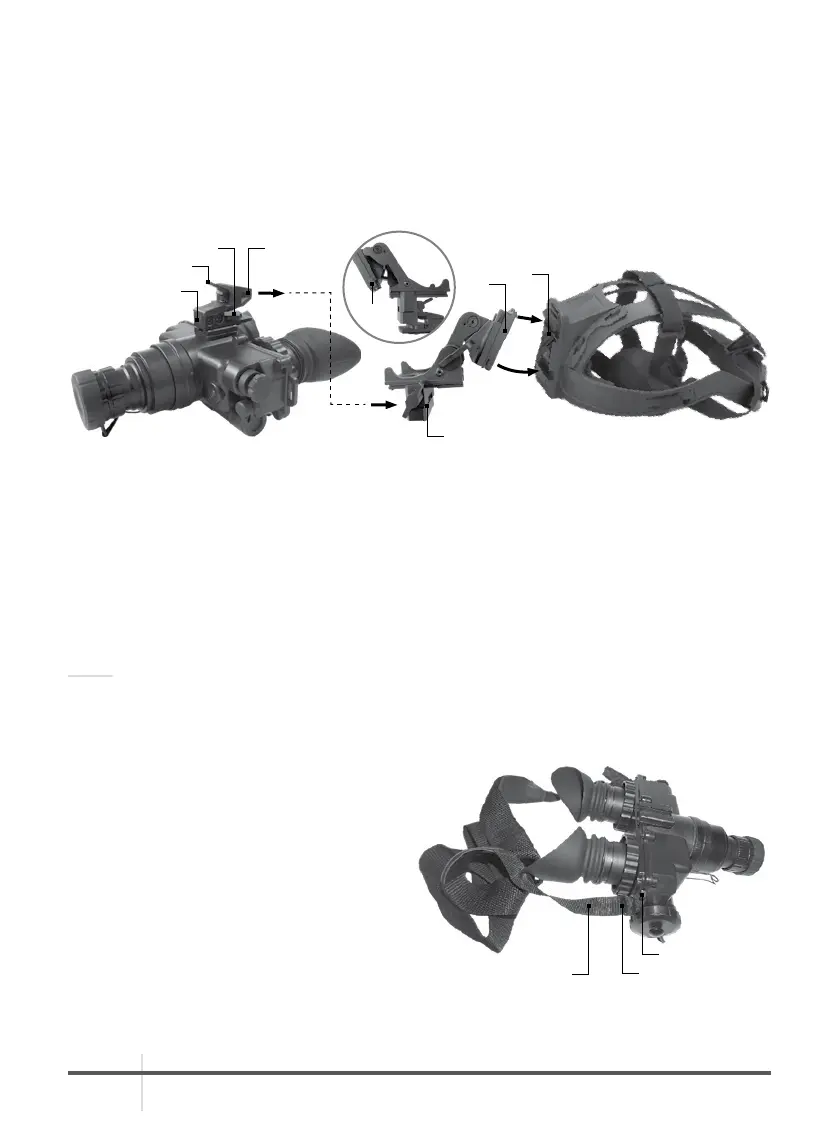

FIGURE 2-2. MOUNTING WOLF-7 PRO TO HEADGEAR ASSEMBLY
FIGURE 2-3. NECK STRAP INSTALLATION
STRAP BUCKLE
ETELET
