AGA Ludlow & Ellesmere EC5 Revision 1.5 – June 2021
DAMPERS LEFT OPEN
Operation with the air control or appliance dampers open can cause excess smoke. The appliance must not be
operated with air controls, appliance dampers or door left open except as directed in the instructions.
OPERATION WITH DOOR LEFT OPEN
Operation with the door open can cause excess smoke. The appliance must not be operated with the appliance
door left open except as directed in the instructions.
REQUIREMENTS FOR THIS AGA STOVE WHEN BEING USED IN A SMOKE CONTROLLED AREA
The Ellesmere & Ludlow EC5 Multifuel Stove has been recommended as suitable for use in smoke control areas
when burning wood logs.The Ellesmere & Ludlow EC5 Multifuel Stove must be fitted with a permanent stop to
prevent closure of the secondary/tertiary control rod beyond the 11.5mm open postion. The tube limiter
supplied with the stove must be fitted to meet the requirements before use of the stove
Log Dimensions Length maximum 325mm
Moisture content of less than 20%
FITTING THE TUBE LIMITER TO THE STOVE TO COMPLY WITH THE CLEAN AIR ACT AND DEFRA

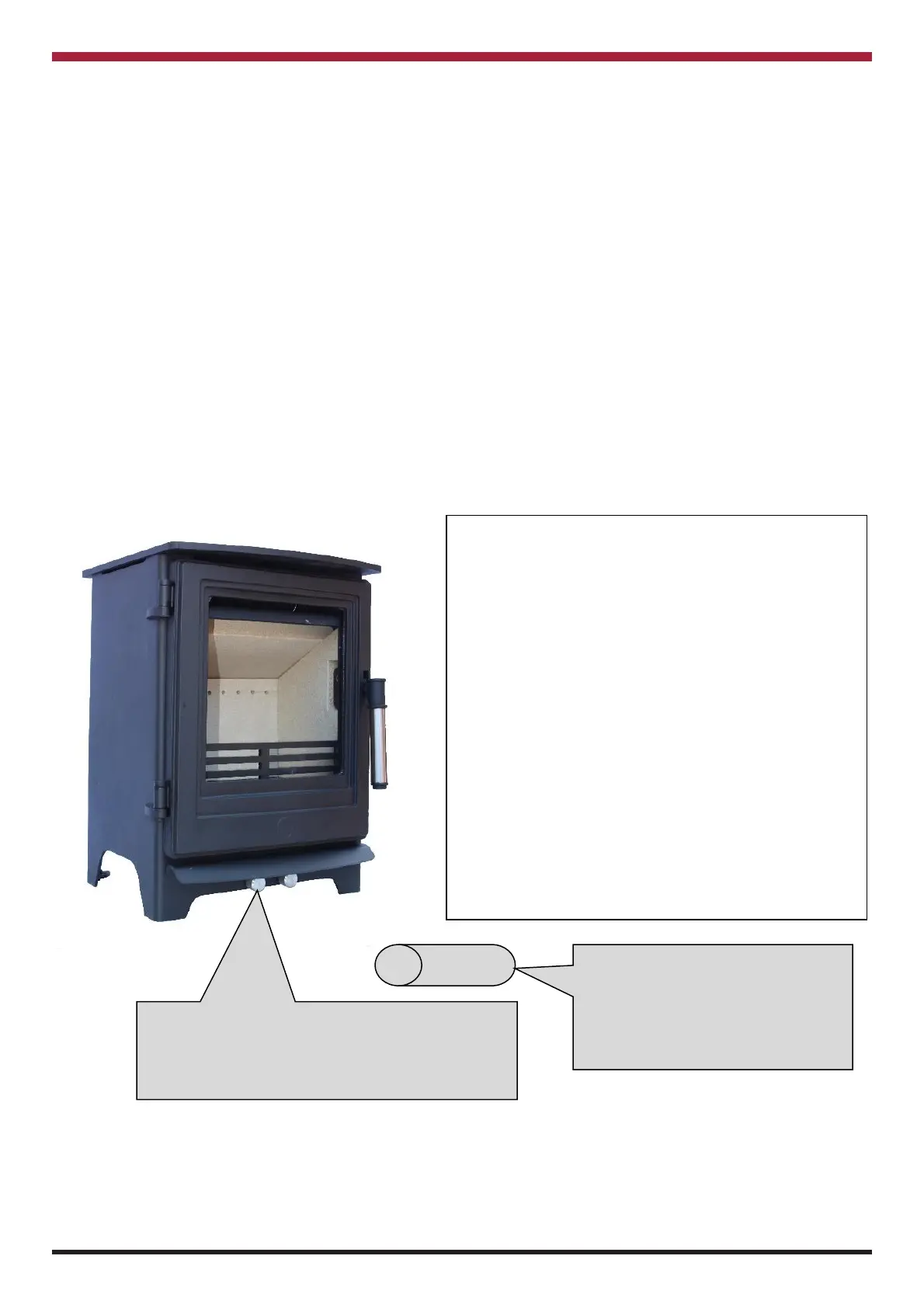

Drawing not to scale
INSTRUCTIONS ON HOW TO FIT THE DEFRA
TUBE LIMITER
1 Pull out the secondary air control knob fully
2 Unscrew the stainless steel air control knob on the
end and remove from the control rod
3 Fit the tube limiter over the control rod
4 Refit the air control knob by screwing it back on
tightly to the air control rod
NOW THIS IS FITTED THIS STOVE CAN BE
USED IN A CLEAN AIR CONTROLLED AREA. BY
FITTING THIS TUBE LIMITER THIS WILL
PREVENT THE SECONDARY SLIDER FROM
FULLY CLOSING AND REDUCE THE SMOKE
SECONDARY AIR CONTROL KNOB
FIT THE DEFRA TUBE ON HERE
FIT THE DEFRA TUBE KIT
OVER THE AIR CONTROL ROD
ONCE THE AIR CONTROL
KNOB IS REMOVED
