INSTALLATION
Check the appliance is electrically safe when you have nished.
Nylon Locating
washer
Bottom panel
Pin
Side view of the front base
Side panel
Bottom panel
Side view of the front base
Side panel

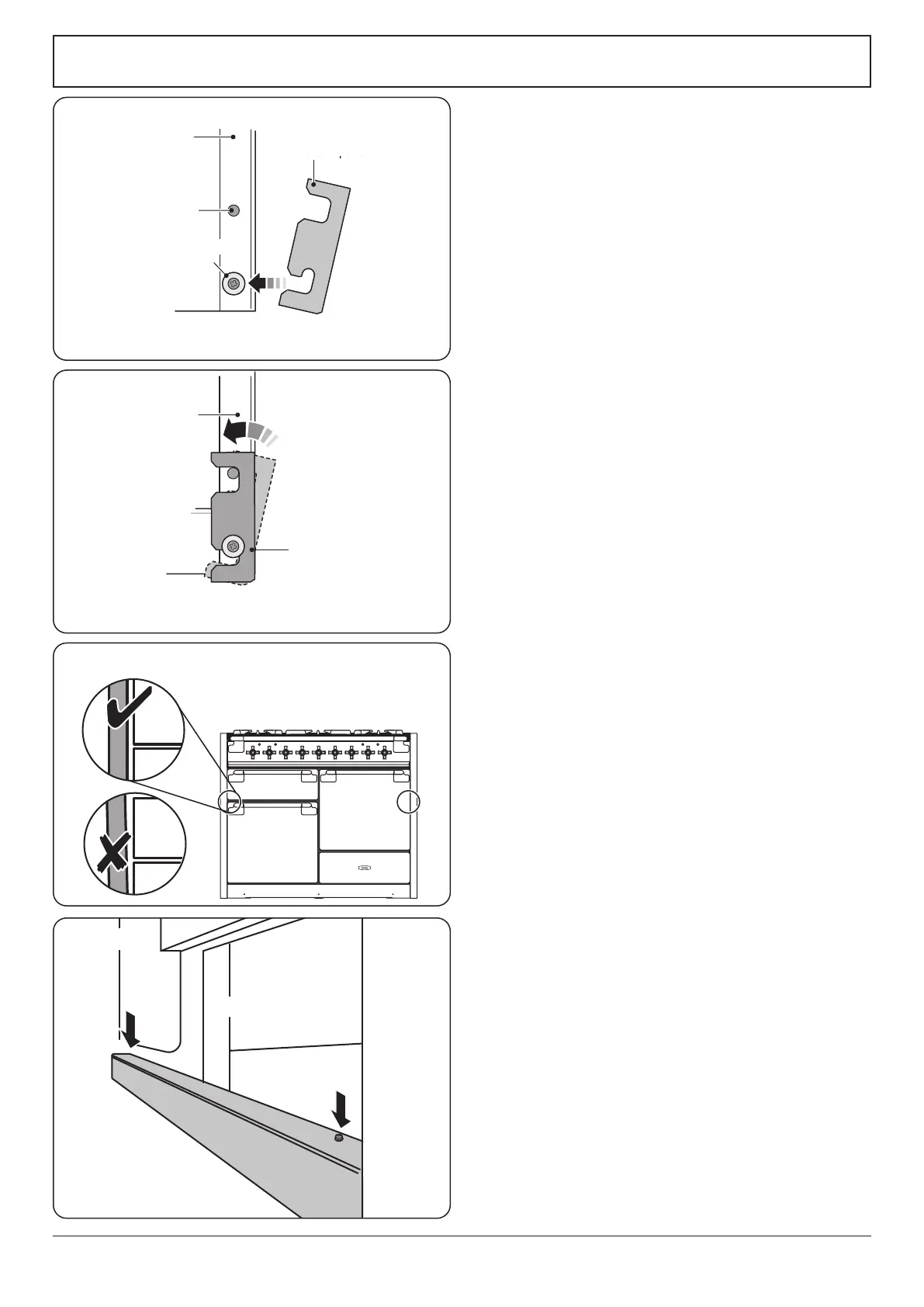

Fitting the bottom panel (toe kick)
1. Tilt the bottom of the panel slightly to locate the lower
slots onto the washers (Fig. 12.17). Now rotate the
panel to t over the pins (Fig. 12.18).
2. Using the two screws and allen key supplied, loosely
t the bottom panel onto the mounting brackets (Fig.
12.20). DO NOT tighten at this stage.
3. Adjust the bottom panel to set the gap between the
side panels and doors equally (Fig. 12.19). When it is
positioned correctly, use a suitable at open-ended
spanner to tighten the bracket screws, and then tighten
the bottom panel screws (Fig. 12.20) with the allen key
provided.
Fig. 12.17
Fig. 12.18
Fig. 12.19
Fig. 12.20
Toe kick
Toe kick
