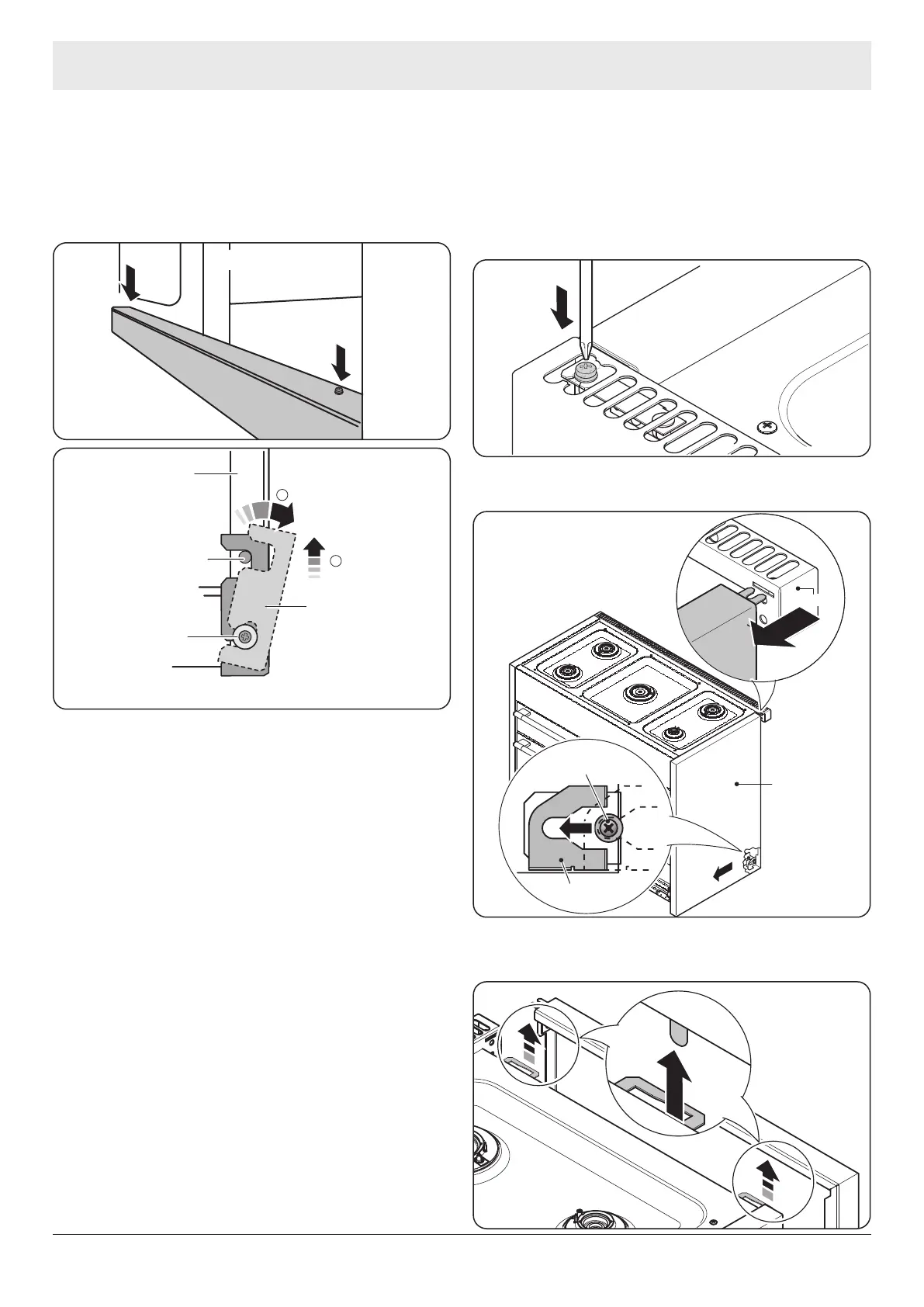

SERVICING - WARNING
Disconnect from electricity and gas before servicing. Check appliance is safe when you have nished.
7
3. Remove the bottom panel (toe kick)
a. After removing the drawer open the left-hand oven
door.
b. Unscrew the two allen head screws, lift the bottom
panel up and slightly rotate the panel away from the
pins.
Bottom panel
Side view at the front base of the cooker
Lift
1
Rotate
2
Pin
Locating
washer
Side panel
4. Remove the side panels
a. Remove the storage drawer (2. Remove the storage
drawer)
b. Remove the bottom panel (toe kick) (3. Remove the
bottom panel (toe kick))
c. Loosen one screw in the vent.
d. Push forward the side panel so that it moves away
from the ue vent and the retaining washer.
Flue Vent
Side panel bracket
Side Panel
Nylon Retaining
washer
e. Inside the top of the side panel top are two tabs.
Move the side panel up and away from the range.
