18
MAKING CONNECTIONS

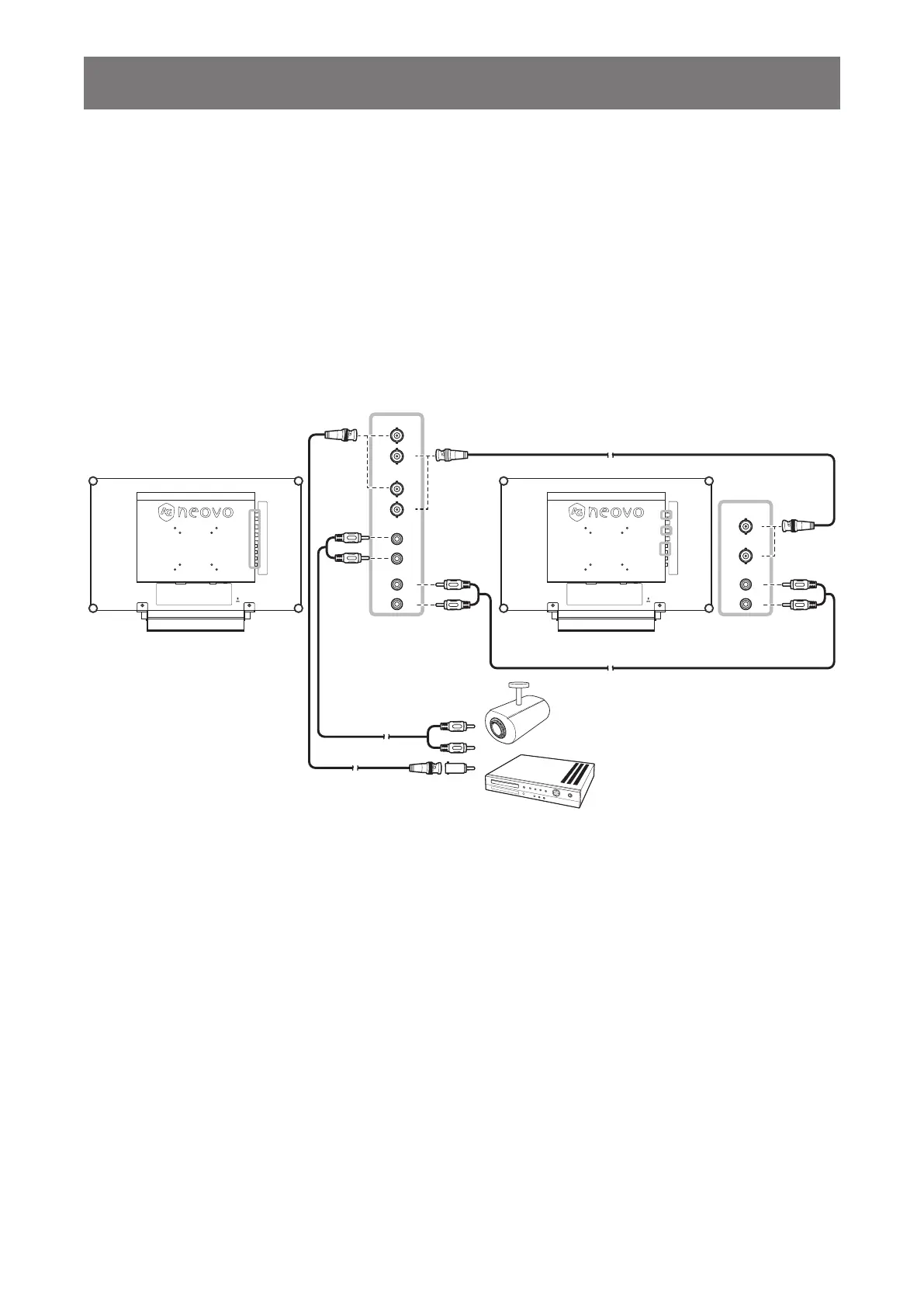

2.2.2 Connecting a Video Device
Using Composite (CVBS) Cables
Connect one end of a Composite (CVBS) cable to the COMPOSITE 1 / COMPOSITE 2 IN connector of the
LCD display and the other end to the Composite (CVBS) connectors of your device.
For audio input, connect an RCA cable to the AUDIO IN connectors of the LCD display and the audio out
connector of your device.
For video looping, connect one end of a Composite (CVBS) cable to the COMPOSITE 1 / COMPOSITE 2
OUT connector of the LCD display and the other end to the COMPOSITE 1 / COMPOSITE 2 IN connector of
the additional display.
COMPOSITE-1
AUDIO
IN
L
R
IN
COMPOSITE-2
IN
COMPOSITE-1
AUDIO
IN
L
R
IN
OUT
COMPOSITE-2
IN
OUT
AUDIO
OUT
L
R
or
