PRODUCT DESCRIPTION

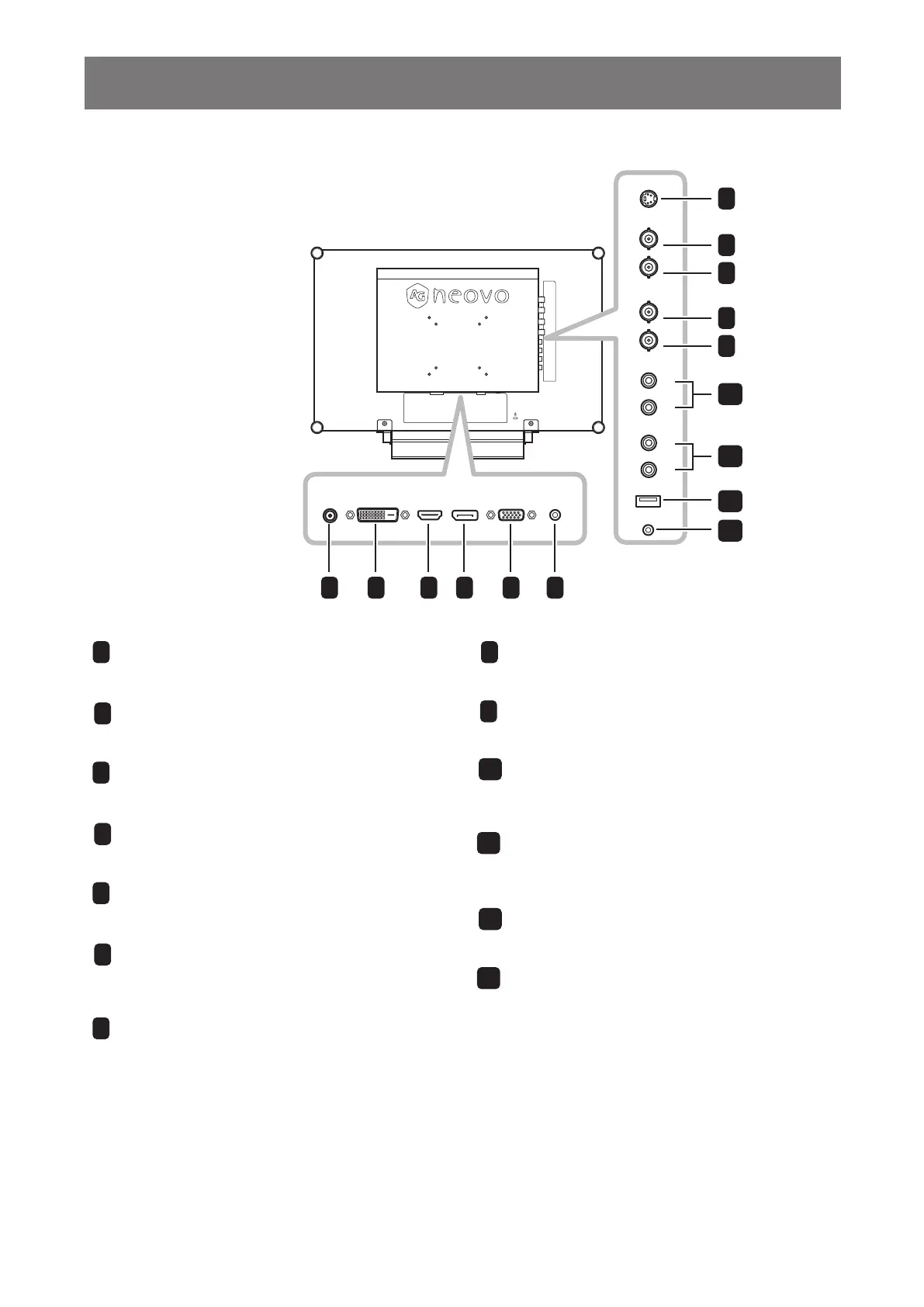

1.3.2 Rear View
S-VIDEO
COMPOSITE-1
AUDIO
IN
L
R
IN
OUT
COMPOSITE-2
IN
OUT
AUDIO
OUT
L
R
USB (SERVICE)
RS232
AUDIO INDVIDC IN HDMIDisplayPortVGA
1
DC IN
Connect with the supplied power adaptor.
2
DVI
Connect DVI signals input.
3
HDMI
Connect HDMI signals input.
4
DisplayPort
Connect DisplayPort signals input.
5
VGA
Connect VGA signals input.
6
AUDIO IN
Connect audio signals input (3.5 mm Stereo
Audio Jack).
7
S-VIDEO
Connect S-Video signals input.
8
COMPOSITE-1/COMPOSITE-2 IN
Connect Composite (CVBS) signals input.
9
COMPOSITE-1/COMPOSITE-2 OUT
Connect Composite (CVBS) signals output.
10
AUDIO IN
Connect audio signals input (RCA Stereo
Audio Jack).
11
AUDIO OUT
Connect audio signals output (RCA Stereo
Audio Jack).
12
USB (SERVICE)
Connect USB 2.0 for service.
13
RS232
Connect RS232 input from external
equipment.
