13
PRODUCT DESCRIPTION

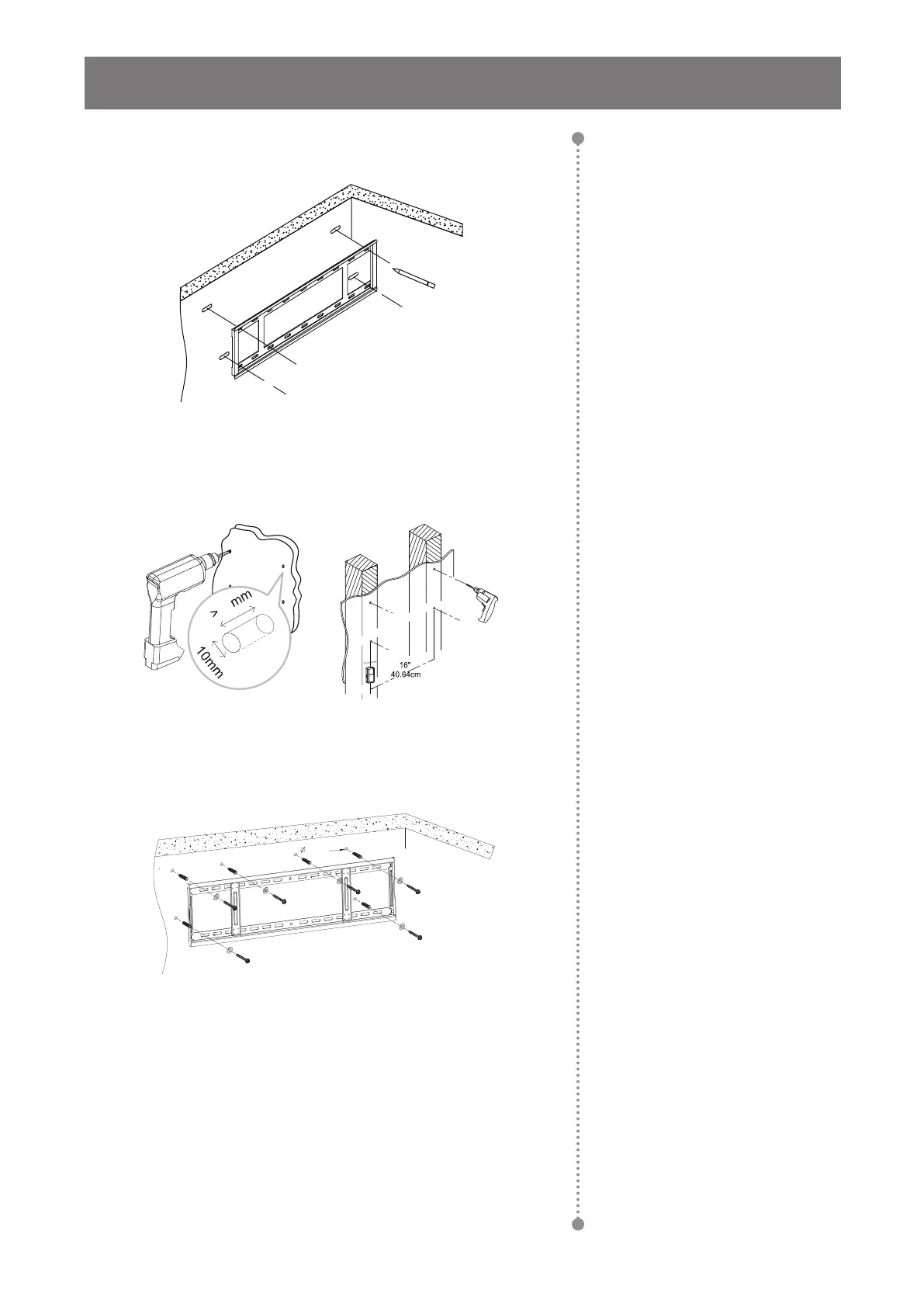

1 Keep the wall mount bracket level and mark the four wall
mount screw hole locations on the wall.
2 Drill four small holes on the mounting location with the
length and width 50mm x 10mm for concrete wall or 50mm
x 5.5mm for stud wall.
50
Concrete Wall Stud Wall
3 Insert a wall anchor into each hole.
4 Secure the wall mount with the six supplied screws through the
washers into the six installed anchors on the wall.
a
b
e
10mm
