EN 4
© Copyright LOTRONIC 2023
DMX512
1. Install the units in a suitable position (laying or appending).
2. Use standard XLR microphone cable to link the units together via the XLR connector on the rear
panel. For longer cable runs we suggest a terminator at the last xture.
3. Assign a DMX address to each the unit.
4. Turn on all units. They will start resetting and then begin to work.
5. Use a DMX console to control your units.

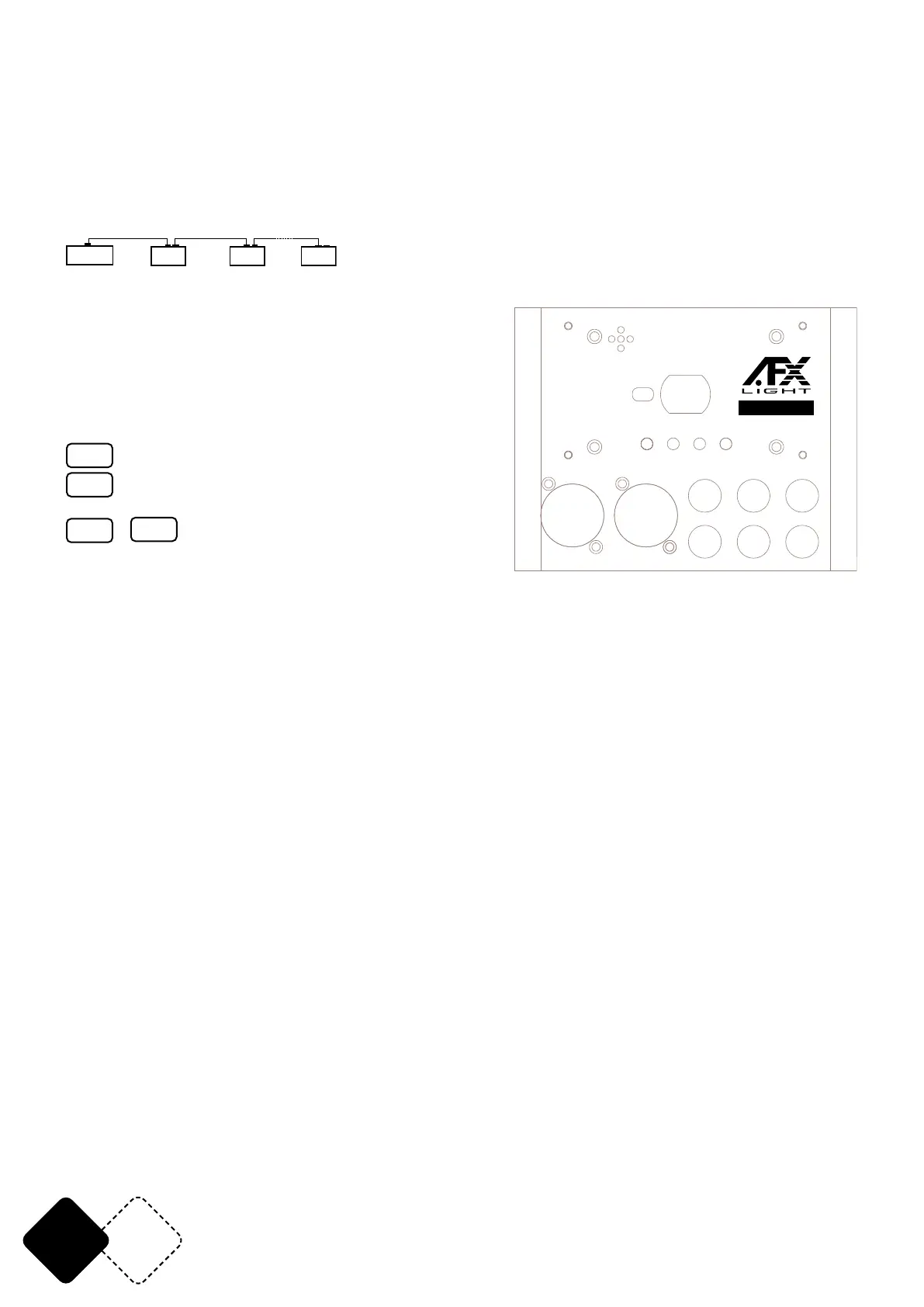

Console Light1 Light2 Light3
Description
LZR5000RGB-IP-FC
MIC
IR
LCD
FUNC UP DOWN ENTER
ILDA ON/OFF DMX OUTPUT
REMOTE
AC110-240VPOWER ON/OFF DMX INPUTILDA OUTPUTILDA INPUT
1. Built-in performance programs, AUTO, SOUND
2. DMX mode
3. Master/Slave
4. ILDA DB25 mode
CONTROLS & FUNCTIONS
FUNC
Mode/Function: Set the operating mode of laser.
ENTER
: Conrms all settings or changes of LED control
panel.
UP
/
DOWN
: Changes the operating mode, parameter
or DMX address.
OPERATION:
Function overview:
[FUNCTION] key:
At every short press on the FUNC button, following actions are active :
• INDR - DMX (6-CH simplied DMX mode) + you can set the DMX address via the UP/DOWN but-
tons and conrm with ENTER
• DMX (34-CH advanced DMX mode) + you can set the DMX address via the UP/DOWN buttons and
conrm with ENTER
• INDR SE (1 – 2 – 3) = 3 AUTO or sound-controlled mode. The ENTER button toggles between these
2 modes (SND is displayed)
The SE 1 sequence (beam/tunnels, waves mode) – SE 2 (animation 1) – SE 3 is accessible via the
sub-menu.
To access the sub menu, keep the FUNC button pressed for at least 3 seconds. SET is displayed on
the bottom right side of the display. You are now in the setting menu.
Select the sequence by selecting SE and press ENTER.
This sub-menu also allows the following conguration (not recommended for beginners!):
• Congure motors X & Y via dr – X and dr – Y
• Invert motors (SWAP XY)
• Set the projection size (X-SIZE with values from 0 to 100 and Y-SIZE with values from 0 to 100)
• Activate/deactivate the remote control ( REMOTE – ON/OFF)
To leave the menu, keep FUNC pressed.
Overview of playback modes:
There are multiple playback modes:
• Built-in Master mode: divided into three small playback modes.
>1: mixed playback: Drawing scenes from each sequence in taking turn playback (can be set by
setting the function).
>2: Sequence playback: only play a sequence. (This mode is temporary and will not be saved)
