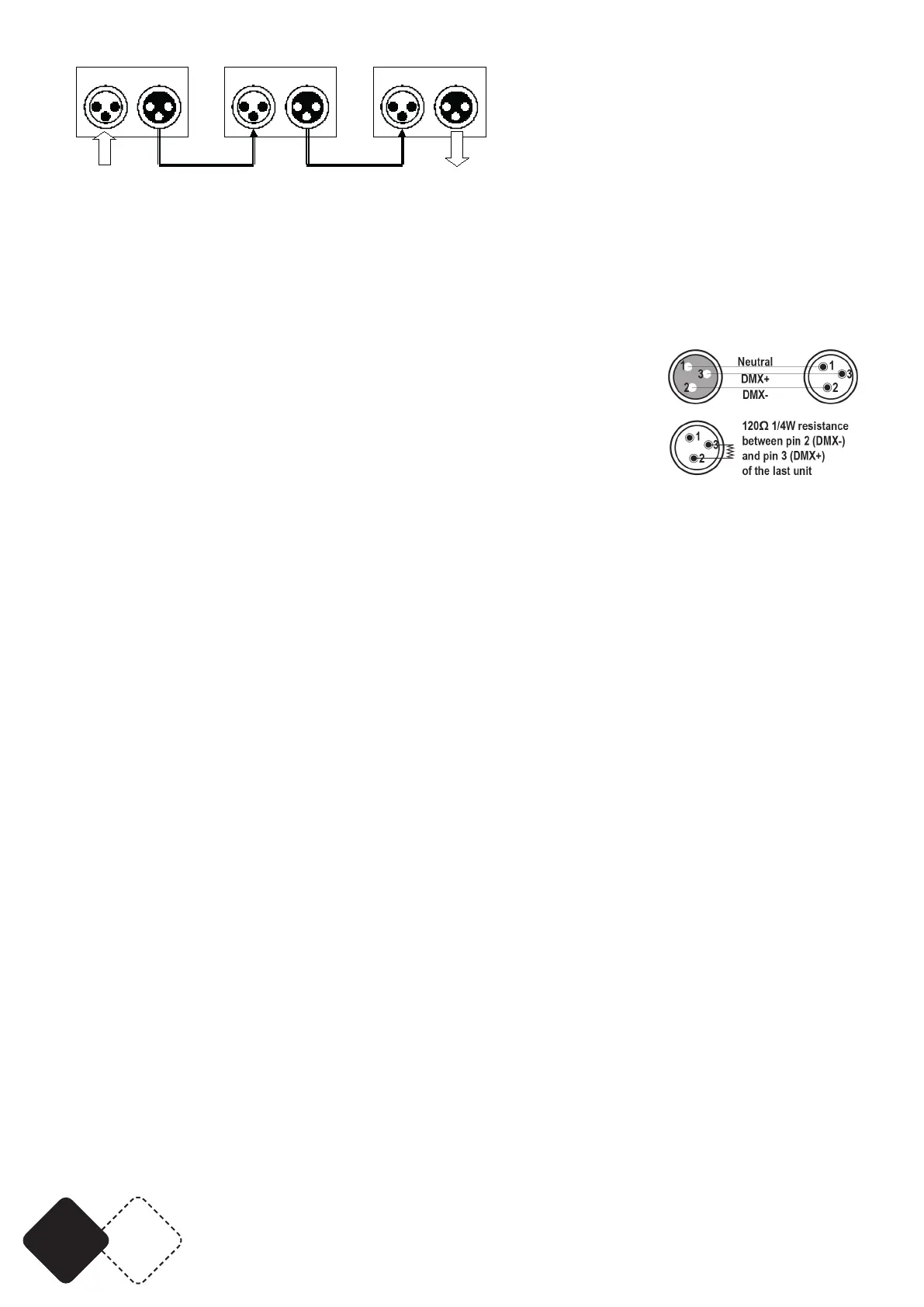

The connection between the output of master and input of product, it’s available to use the 3 pins
XLR cable which provided by the manufacturer. Signal cable from the DMX output of the controller
totheinputoftherstmasterlight,andconnecttotheDMXinputofsecondslavelightfromthe
DMXoutputoftherstmasterlight,analogously,tillconnectedalltheslavelights,andinsertthe
lastconnectortotheoutputofthenallight.(Notice:thediameterofcoreofeverycableshould
be 0.5mm at least, double core shelter cable should be used).The signal connecting must use the
attached 3 pins XLR cable. Notice, all the internal lead wire of the 3 pins XLR cable should not touch
to each other or connect to the connector.
DMX signal terminator is recommended on the last unit of the chain.
DMXterminatorisaXLRconnectorwitha120Ωresistorbetweenthepin
2 and pin 3 of the XLR connector
FEATURES
• High precision optical lens
• 12 DMX channels
• 12 colors + white
• 11xedgobo’s+blank
• Rotating 8-face prism
• Auto, sound, DMX512 & master-slave mode
• Linear dimmer 0-100%
• Electronic ballast
SPECIFICATIONS
Power supply: ........................................................................................ 90-245V~, 50/60Hz
Consumption: ................................................................................................................. 143W
Lamp: ............................................................................................................................... 120W
LUX@5M ........................................................................................................................ 70000
Color Temperature: ....................................................................................................... 9000K
Average Lamp Life: ........................................................................................................ 6000H
Color: ........................................................................................ 12 colors +blank color wheel
Gobo: .............................................................................................11xedgobo+blankgobo
Prism: ........................................................ rotation 8-face prism. With prism positioning.
Lens: ....................................................................................High precision glass optical lens
Dimmer: ........................................................................................ 0-100%linearadjustment
Movement: Pan/Tilt: ........ X axis 540° ,Y axis: 250° automatically accurate positioning
Control mode: ............................. Standard DMX512, Automatic and Master/slave mode
Channels: ........................................................................................................................ 12CHs
Dimensions: ........................................................................................................ 31x23x39cm
Net weight: ........................................................................................................................ 9kgs
