CAUTION!
Connections via contact plugs are
forbidden.
CAUTION!
Do not drill or solder the wire ends. It is
forbidden.
CAUTION!
Do not connect the cable without cable
end sleeve.

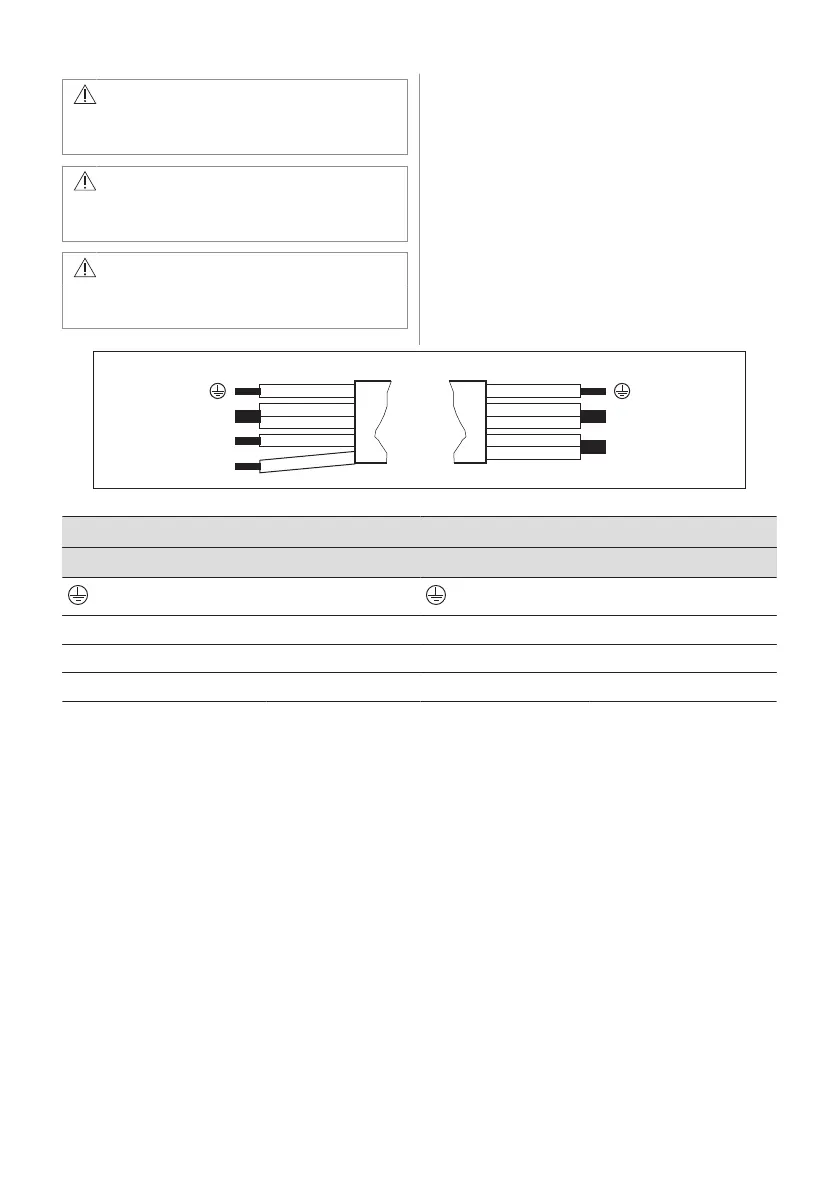

One-phase connection
1. Remove the cable end sleeve from black
and brown wires.
2. Remove a part of the insulation of the
brown and black cable ends.
3. Connect the ends of black and brown
cables.
4. Apply a new wire end sleeve on the
shared wire's end (special tool required).
N
L1
N
L
220-240 V~400V2N~
L2
Two-phase connection: 400 V2N~ One-phase connection: 220 - 240 V~
5x1,5 mm² or 4x2,5 mm² 5x1,5 mm² or 3x4 mm²
Green - yellow Green - yellow
N Blue and blue N Blue and blue
L1 Black L Black and brown
L2 Brown
ENGLISH 9
