16-22 mm
22±1,5 mm
449
mm
595-598 mm
Ø 35 mm
12,5 - 14 mm

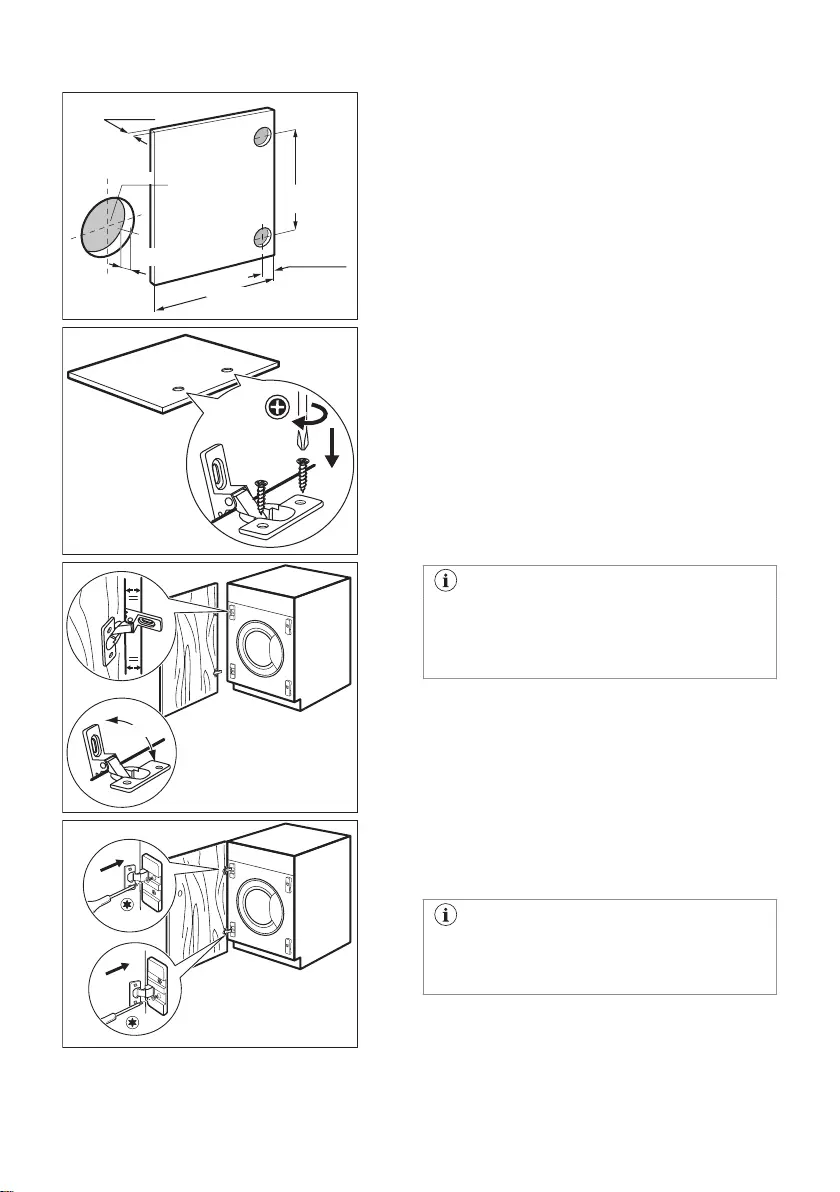

Set the position of the lower hole respecting
dimensions and distances shown in the drawing
(449 mm).
Countersink the holes.
A
Hinges
To mount the hinges it is necessary to drill two
holes (dia. 35 mm, depth 12.5 - 14 mm
depending on the depth of cupboard door) on the
inner side of the door.
The hinges will be fixed to the door by means of
the four supplied screws A.
max. 105°
To align the door perfectly, make sure that
the edge of cupboard door is parallel with
the appliance edge and to respect the
proper opening angle (max. 105 °).
Mounting the door
Fix the hinges to the hinge supports on the
appliance by means of the two supplied screws
B.
The hinges can be adjusted to
compensate for possible uneven thickness
of the door.
18 ENGLISH
