The maximum total electric power of the complete product is 16KW.
It is necessary to connect each DUO generator to a three-phase 400V mains supply line. It is desirable
to use 2 separate lines. Each of the 2 power lines will be protected by an individual circuit breaker
(with 30mA dierenal).
We recommend 2 mains cables H07RN-F-5G-2.5 with a conductor secon of 2.5MM².
The maximum electric power of each generator is 8KW. The maximum electric currents consumed by
each generator on each of the 3 phases L1 / L2 / L3 is 12A.
It is possible to use for each of the 2 supply lines, a circuit breaker rated at 16Ae.
--
-
The mains power connecon is made at the rear of the generator. The protecve cover of the mains
terminal block (2 screws to be unscrewed) must be removed to gain access to the terminal block screws.

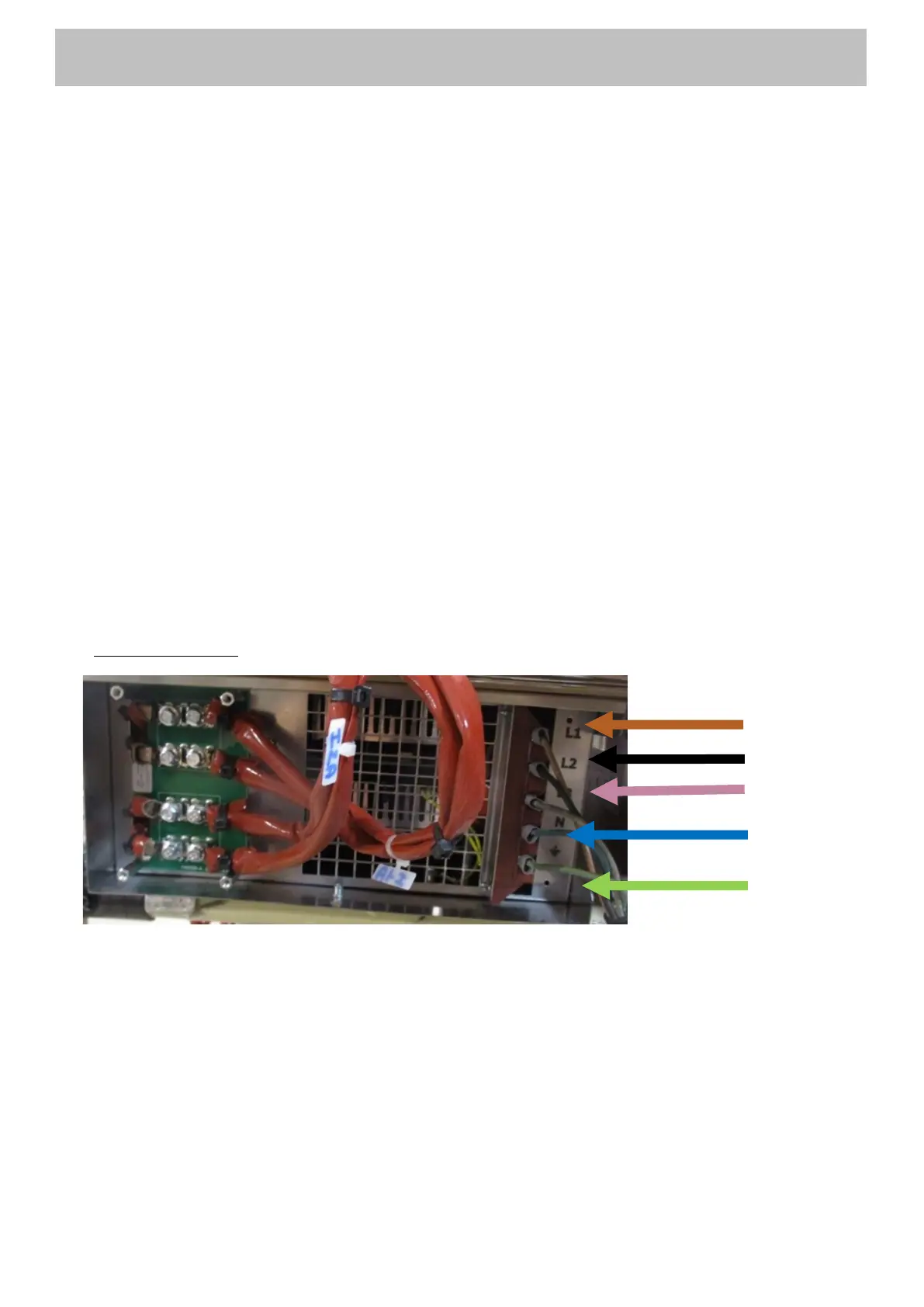

Rear view of generator
When the 5 conductors equipped with wiring ends are connected to the terminal block and the 5 terminal
block clamping screws are properly ghtened, the protecve cover must be ed with its 2 xing screws.
in the event that the generator units should be disconnected from the electrical network, it is necessary
to provide means of disconnecon from the sector accessible by the user, near the product. If the discon-
necon device is manually operated, it must guarantee total disconnecon of the generator, vis-à-vis the
2 phase conductors + the neutral conductor of the electrical network.
