Respect a distance of 5cm with regard to any vercal wall, and an available depth of at least 13 cms
A food joint in silicone (type Novasil S56) must be realized to assure the perfect waterproofness between the
product and the counter.
The device is delivered with 4 xing bracket which must be used to maintain the device. It is recommend to arrange
2 bracket in front and 2 bracket in the back, which are to be screwed with the exisng nuts along the case of the
device.
To obtain the best performances of the device, it is advisable to bring of the fresh air through a pipe that it is
necessary to link on the present funnel under the device. The fresh air must be taken in the boom of the piece of
furniture, in the most convenient place.
-
Connect the BLUE/ BROWN wire on NEUTRAL of the electric socket.
Connect the GREY wire and BLACK wire on PHASE of the electric socket.
Connect the GREEN and YELLOW wire on GROUND of the electric socket.
-
Connect the BLUE/ BROWN wire on NEUTRAL of the electric socket.
Connect the GREY wire on PHASE_1 of the electric socket.
Connect the BLACK wire on PHASE_2 of the electric socket.
Connect the GREEN and YELLOW wire on GROUND of the electric socket.

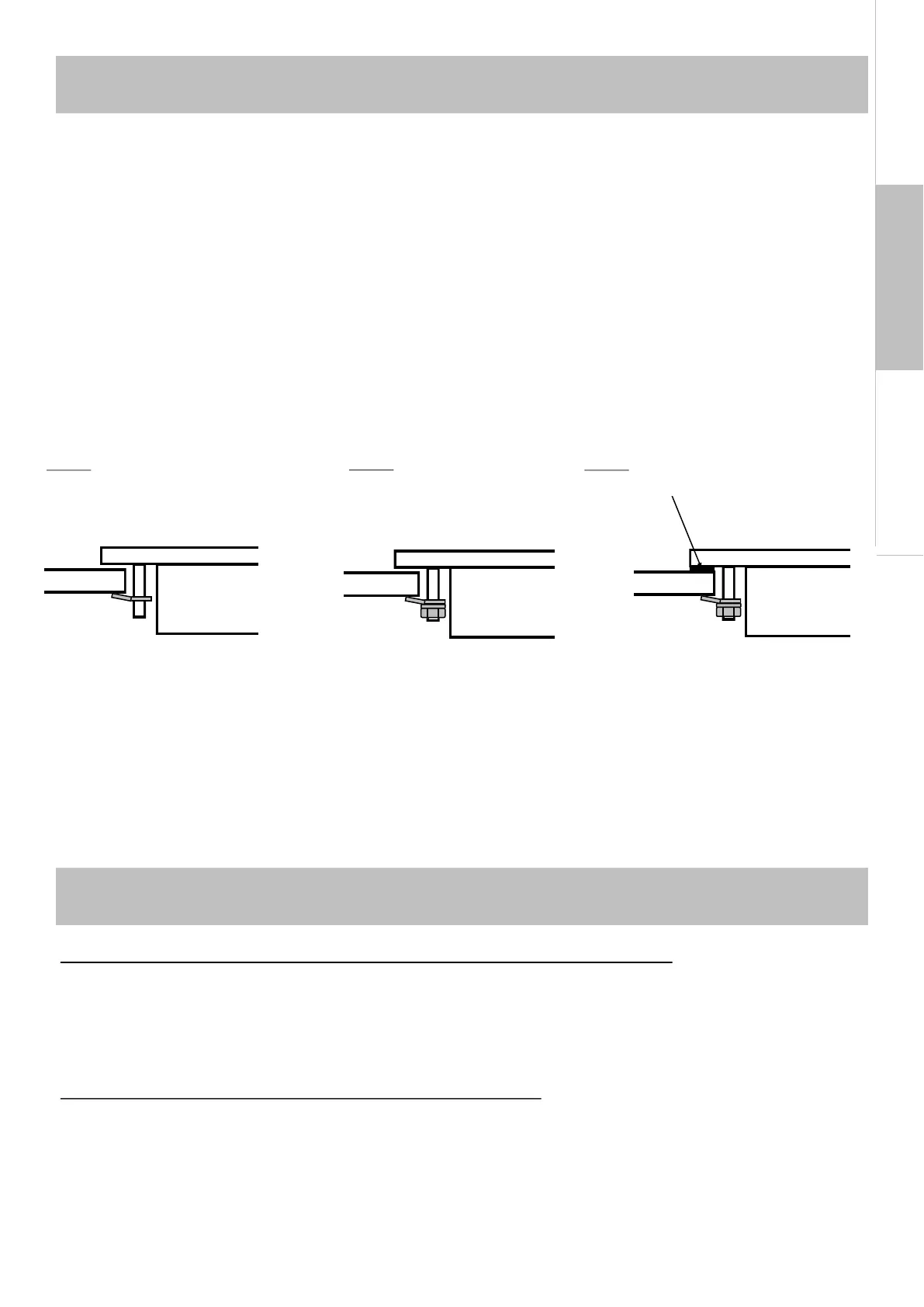

Placed the washer and nut
Placed the supplied clamp
Make a silicone seal and ghten the nut
