WISE-S100 Series User Manual 12
4.1 Operation Mode
There two different operation modes of WISE-S100 to pair with different device. One
is Modbus RTU mode and another one is serial bus mode. The default operation
mode of WISE-S100 is Serial Bus Mode for pairing with WISE-4200/4400/4600
series, WiFi or LPWAN IoT Wireless Modular I/O.
Please follow below steps if you intend to use WISE-S100 to pair with WISE-4051,
2.4G WiFi IoT Wireless Modular I/O or any other Modbus master device.
Step 1.Download WISE Studio
Please change to Modbus mode via WISE Studio (WISE Studio version needs to be
1.01.01 (B05) or above).
Step 2.Operation Mode Change
The way to access WISE-S100 in Serial Bus Mode through WISE Studio when
switching into Modbus Mode:
- PC < --- > ADAM-4561 or any other USB to RS-485 converter < --- > WISE-S100
Step 3.Check the LED Indicator
The LED indicator will be on when WISE-S100 is powered on.
- Serial Bus Mode: LED indicator will be on for 5 secs the go off for power saving
when pairing with WISE-4200/4400/4600 LPWAN IoT Wireless Modular I/O.
- Modbus Mode: LED indicator will be on constantly.
Step 4.Serial Bus Mode
Serial Bus Mode
only used to pair with WISE-4200/4400/4600 series.

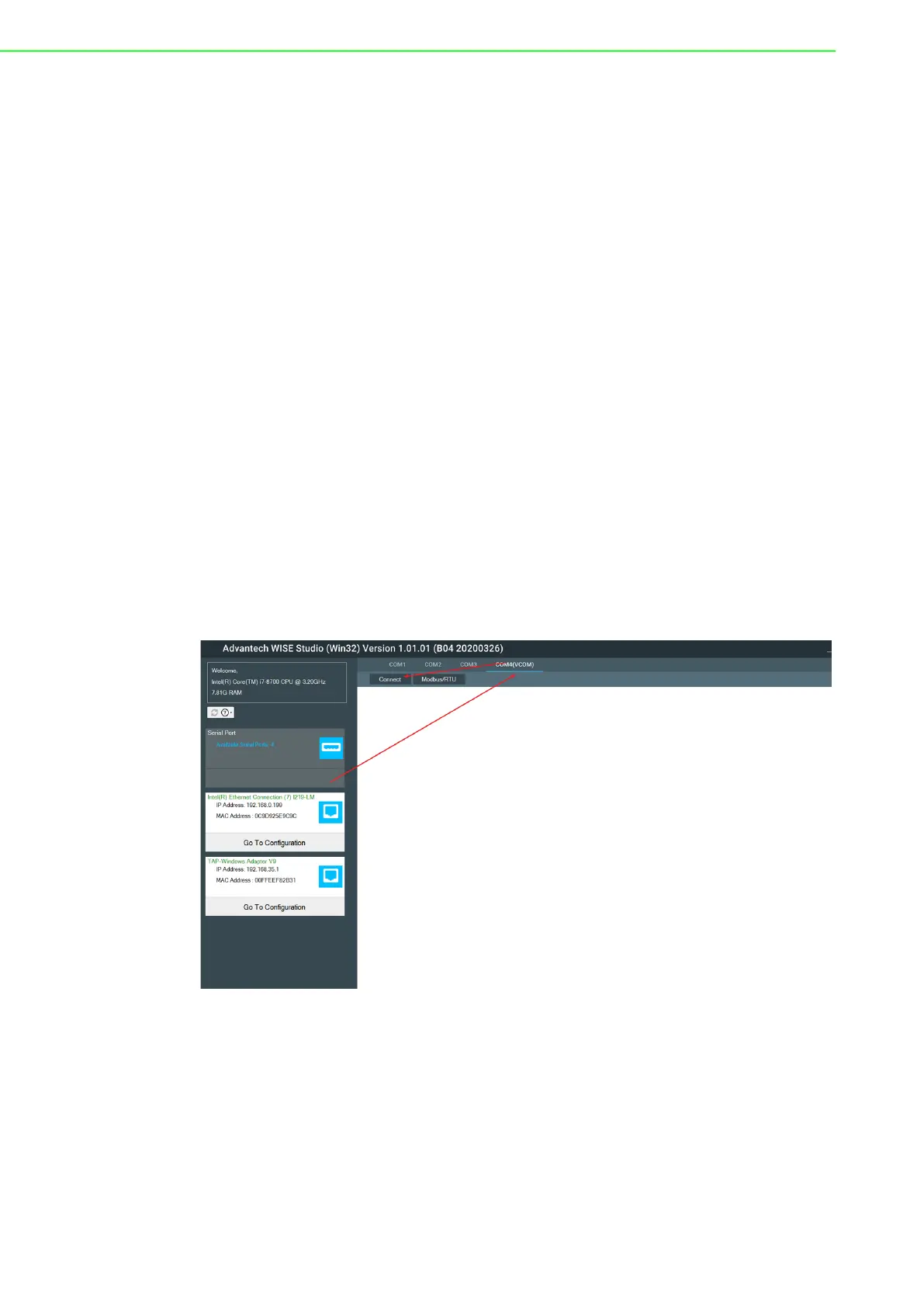

Please enter into the main page of WISE-S100 via WISE Studio.
