WISE-4610(P) User Manual 8
The wireless sensor nodes for WISE-4610, like those for all WISE-4000 series mod-
ules, are designed as separate units. The procedure for installing these nodes in the
module is explained in the following sections.
2.1 Modular Design
WISE-4610 features a modular design that supports various I/O configurations.
The benefit of a modular design is that the same wireless board can be leveraged by
different I/O modules via a board-to-board connector. This allows users to install two
I/O modules according to their specific usage requirements. Moreover, the modules
can be affixed to WISE-4610 using the six screws provided (as shown in Figure 2.1).

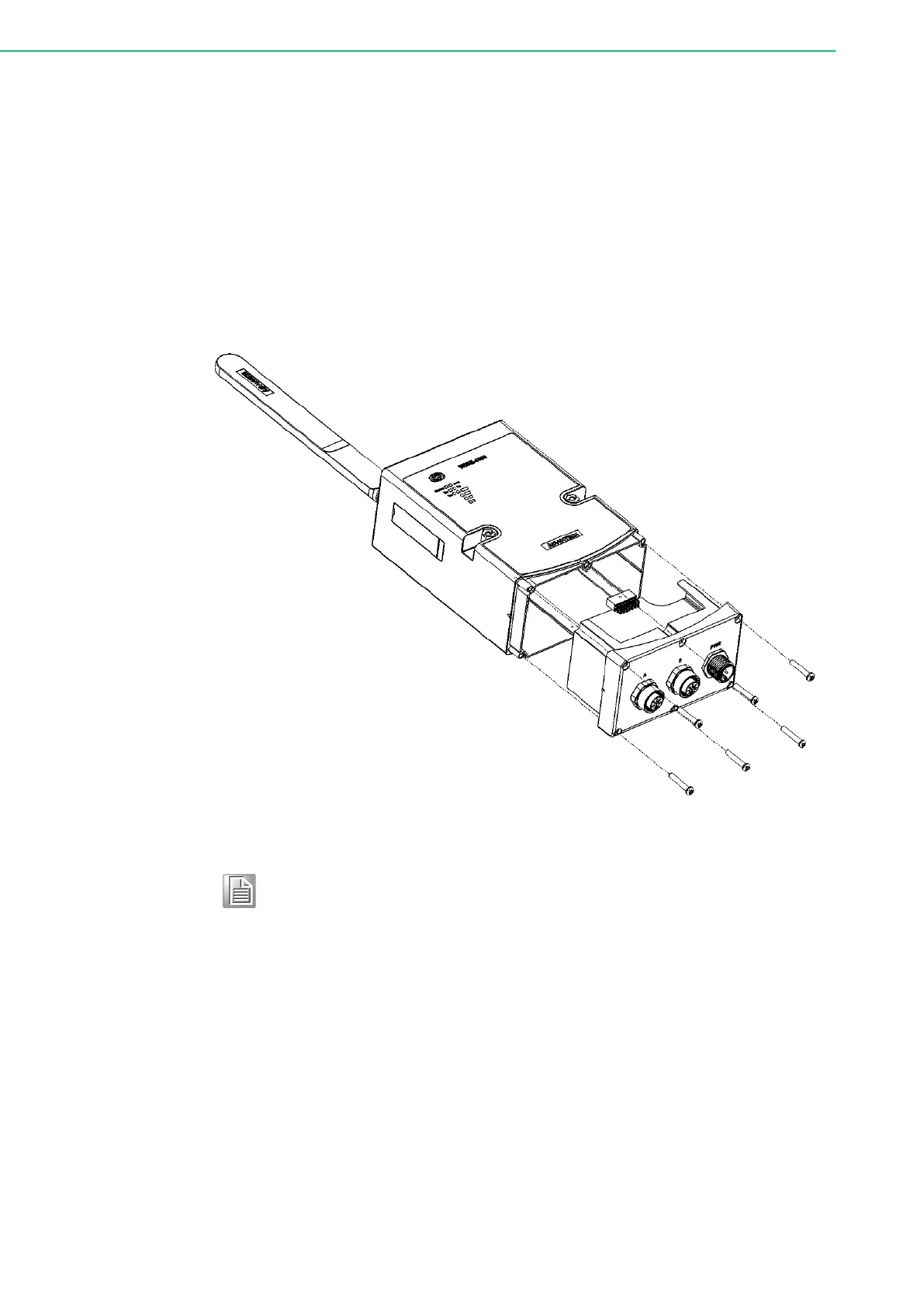

Figure 2.1 I/O Module Installation
Note!
The recommended screw torque is 2.5 ~ 3.0 kgf/cm
2
.
