1.6 LED Indicators

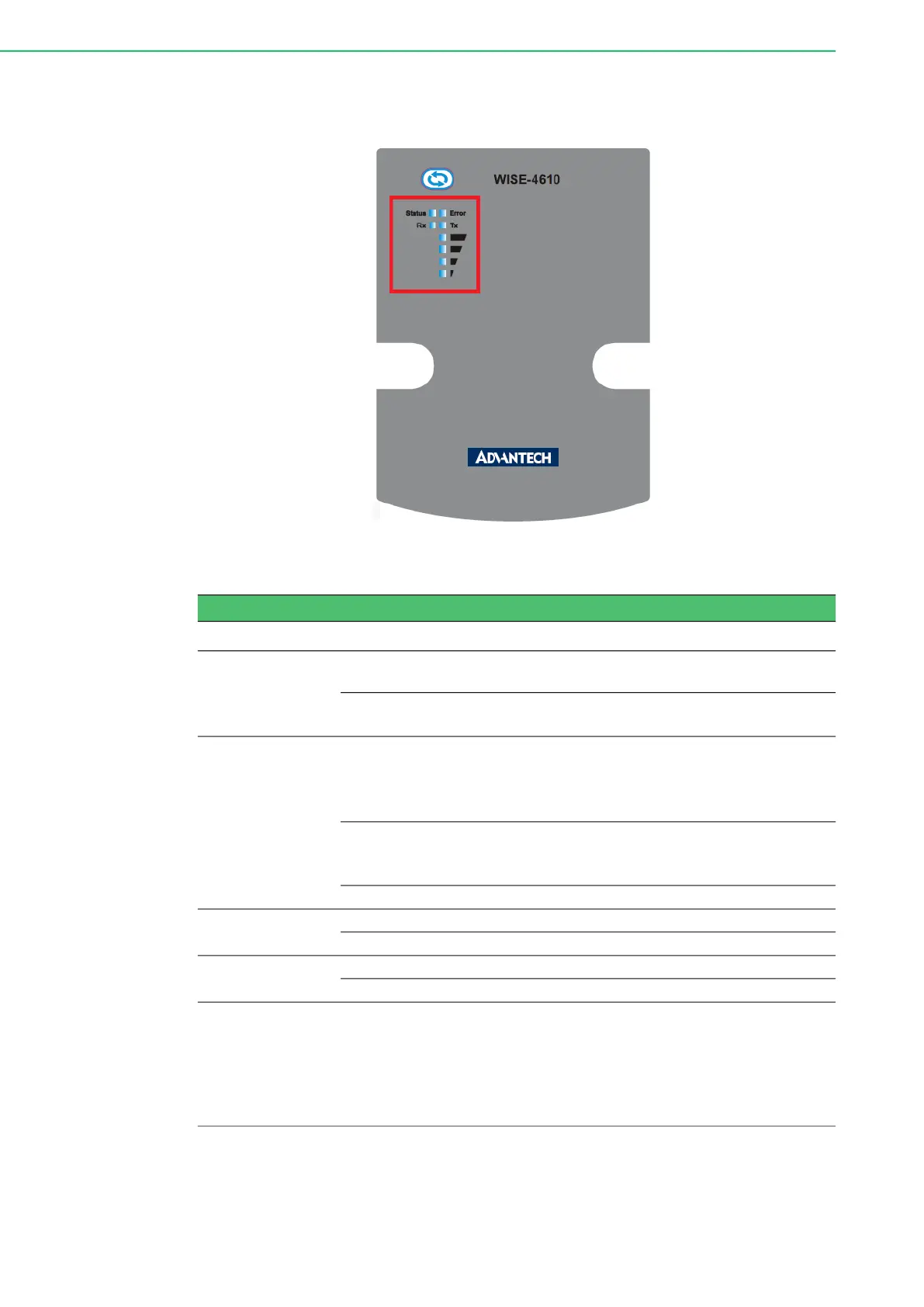

Figure 1.3 WISE-4610 LED Indicators
Table 1.2: LED Indicators
LED Color State Description
Status Green
Fast blink
(0.2 sec ON, 0.3 sec OFF)
Waiting for connection or connecting
Slow blink
(0.2 sec ON, 1.8 sec OFF)
Connecting and operating normally
Error Red
Fast blink
(0.2 sec ON, 0.8 sec OFF)
Application errors. (*Note 1)
Network registration timeout
I/O Error
FW error
Slow blink
(0.2 sec ON, 2.8 sec OFF)
Low battery voltage (v <= 20%)
Low RTC battery voltage
Battery internal short is detected
Off No error
RF RX Green
On (0.2 sec ON) Received data from Gateway
Off Idle
RF TX Yellow
On Sending data to gateway
Off Idle
Signal
Strength
4 Green
On
(if pressing the membrane
button)
Main battery capacity
All OFF - V <= 20%
1 ON - 20% < V < 40%
2 ON - 40% <= V < 60%
3 ON - 60% <= V < 80%
4 ON - V >= 80%
