29 WISE-4471 Series User Manual
Chapter 4 System Configuration
Configuration

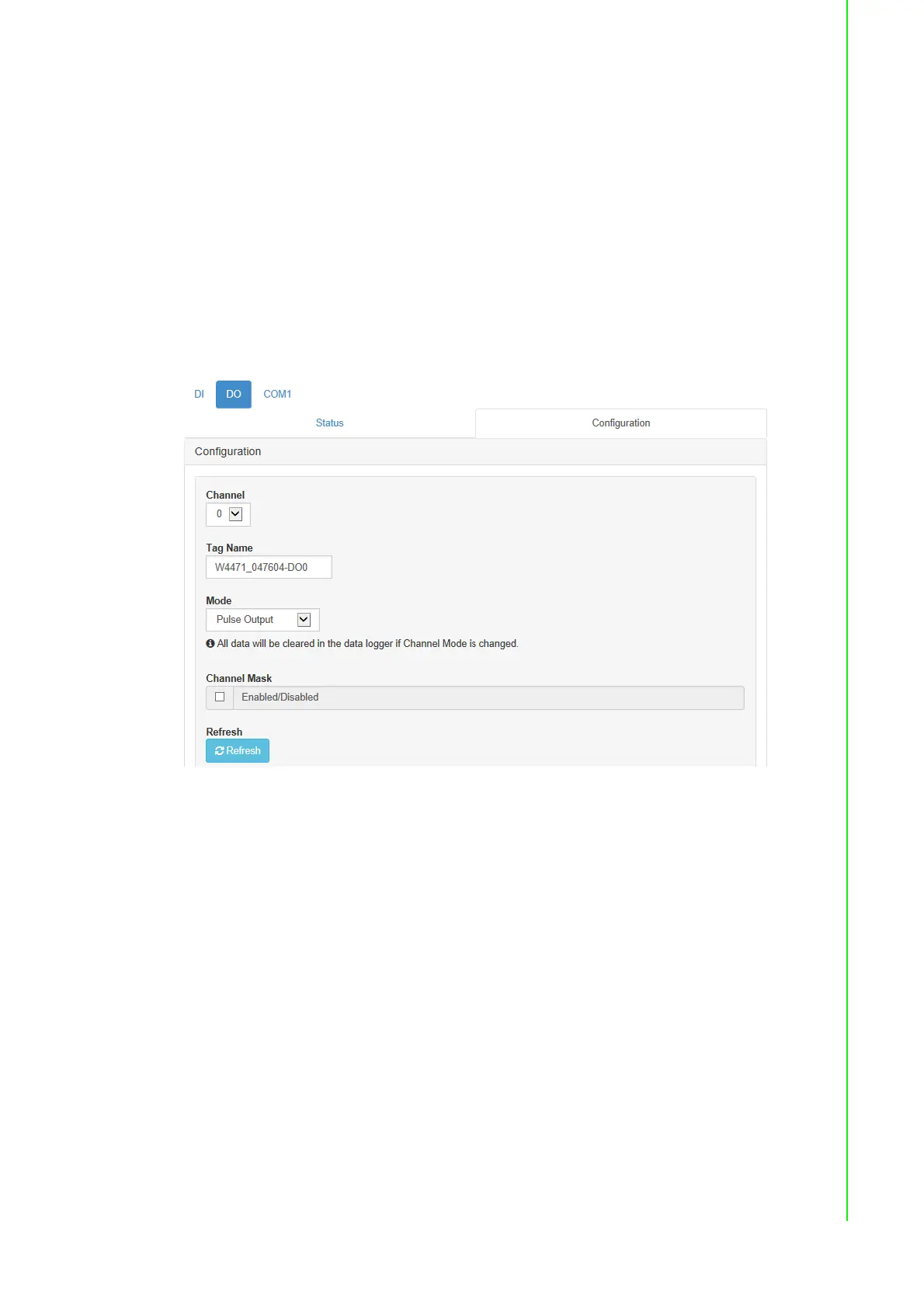

The digital output channels support several operation modes and can be configured
from this page.
Channel: Select the channel to be configured.
Tag Name: Each channel can be given a tag name for identification.
Mode: The operation mode of each channel can be configured here, or chan-
nels can be disabled to improve the performance of enabled channels. After a
channel has been configured, pressing Submit at the end of this page will apply
the changes.
Channel Mask: Each channel can be disabled individually for reducing data
traffic during communication.
Refresh: Refresh the configuration.
FSV (Fail-Safe Value): The digital output channels can be set to generate a
predefined value when communication between a host controller and a WISE
digital module is broken. To do this, select the FSV check box for the module to
set the output channel to "logic high" when the WDT times out. If the FSV check
box is clear, the module will set the output channel to "logic low" if the WDT
times out. To set the module so that the FSV is triggered by the WDT, go to Net-
work App on the Configuration page to enable Communication WDT Trigger
FSV for all of the module's output channels, and then set the communication
WDT mode to “Communication WDT." The default host idle time is 720 s, and
this can be configured by entering a value in the Host Idle (Timeout Sec) box
(unit: s) in this page.
Pulse Output: In pulse output mode, the selected digital output channel can
generate a continuous pulse train or finite pulses. The pulse width can be set by
entering a value in the Low Signal Width and High Signal Width boxes on the
Configuration page (increment: 0.1 ms). The frequency and duty cycle of the
pulse output signal will be calculated automatically and displayed in the Output
frequency and Duty cycle boxes, respectively. Whether a continuous pulse train
or finite pulses will be generated is determined by clicking Continuous or Fixed
total, respectively. The number of pulses to be generated can be set by entering
