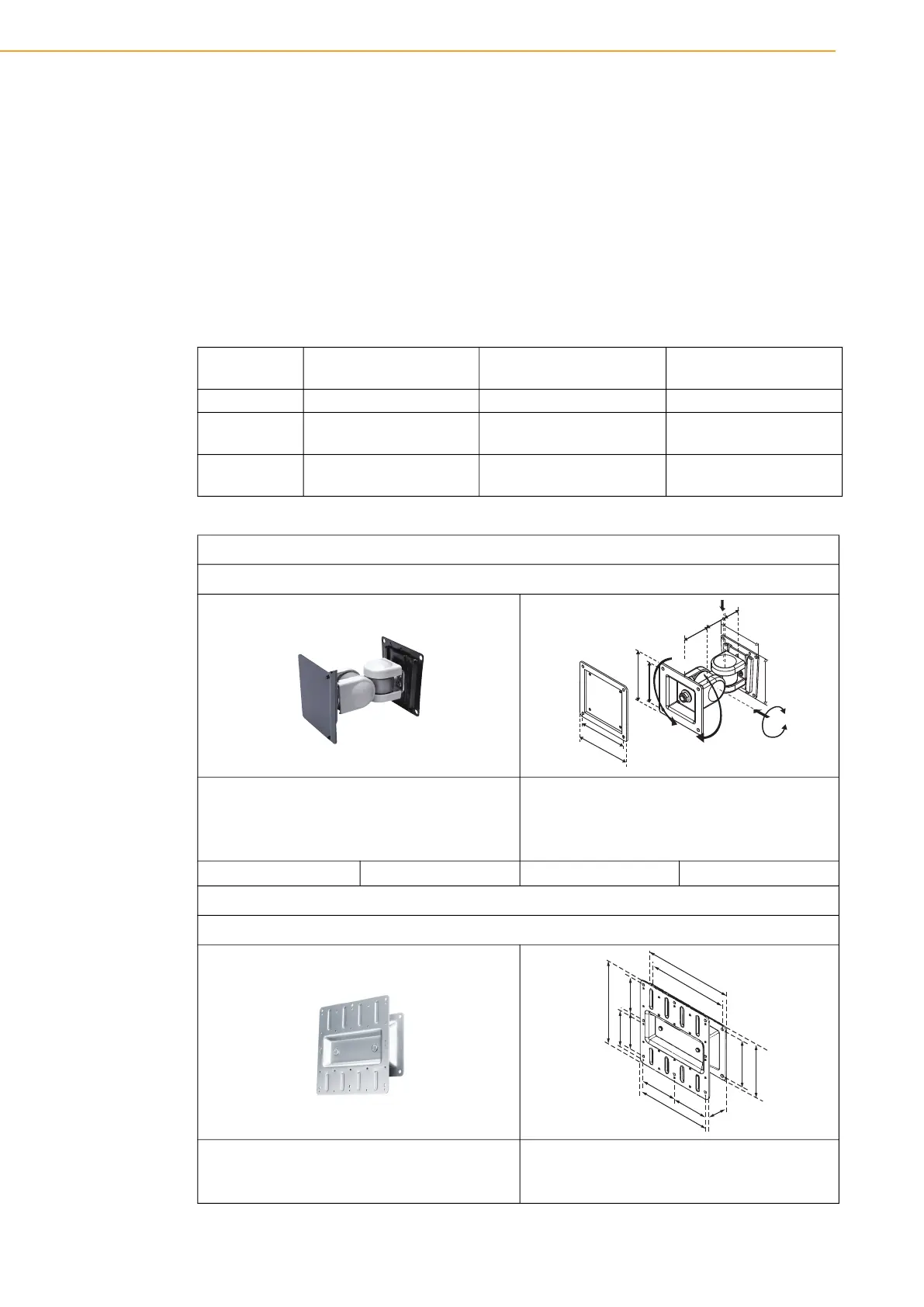

UTC-510/515/520/532/542 User Manual 48
A.1 Introduction
The floor stand and wall mount accessories provided for Advantech’s UTC series
systems combine simplicity with style, making them easy to install without additional
cost or space requirements. Additionally, because the UTC series are aimed at sup-
porting applications in diverse usage scenarios, such as self-service kiosks in hospi-
tality reception areas, the units are slim and compact, and feature an attractive
elegant appearance that ensures integration in a variety of environments.
A.2 Wall Mount
Part
Number
UTC-WALLMOUNT1E UTC-WALLMOUNT2E UTC-WALLMOUNT3E
Description VESA mount 75/100 mm VESA mount 100/200 mm VESA mount 75/100 mm
VESA Mount
Pattern
75 x 75 mm
100 x 100 mm
200 x 200 mm
75 x 75 mm
100 x 100 mm
Weight
Capacity
14 kg (30.86 lb) 35 kg (77.16 lb) 20 kg (44.09 lb)
UTC-WALL-MOUNT1E
VESA 75/100 mm
Can be firmly fixed to a wall
Weight capacity: Up to 14 kg (30.86 lb)
Material: Steel
Tilt range: 180° up and down
Rotation: 270° for portrait or landscape
orientation
Lift: 130.5 mm (5.13 in)
For UTC-515/520
UTC-WALL-MOUNT2E
VESA 100/200 mm
Flush fit without movement
Weight capacity: Up to 35 kg (77.16 lb)
Material: Steel
Sits: 42.5 mm (1.67 in) from the wall
for UTC-532 only
92
53.5
36
41
75
90
90
270°
180°
100
115
250
230
100
100
220
230
100
100
100
130
150
42.5
