39 UTC-510/515/520/532/542 User Manual
Chapter 3 Upgrades and Installation

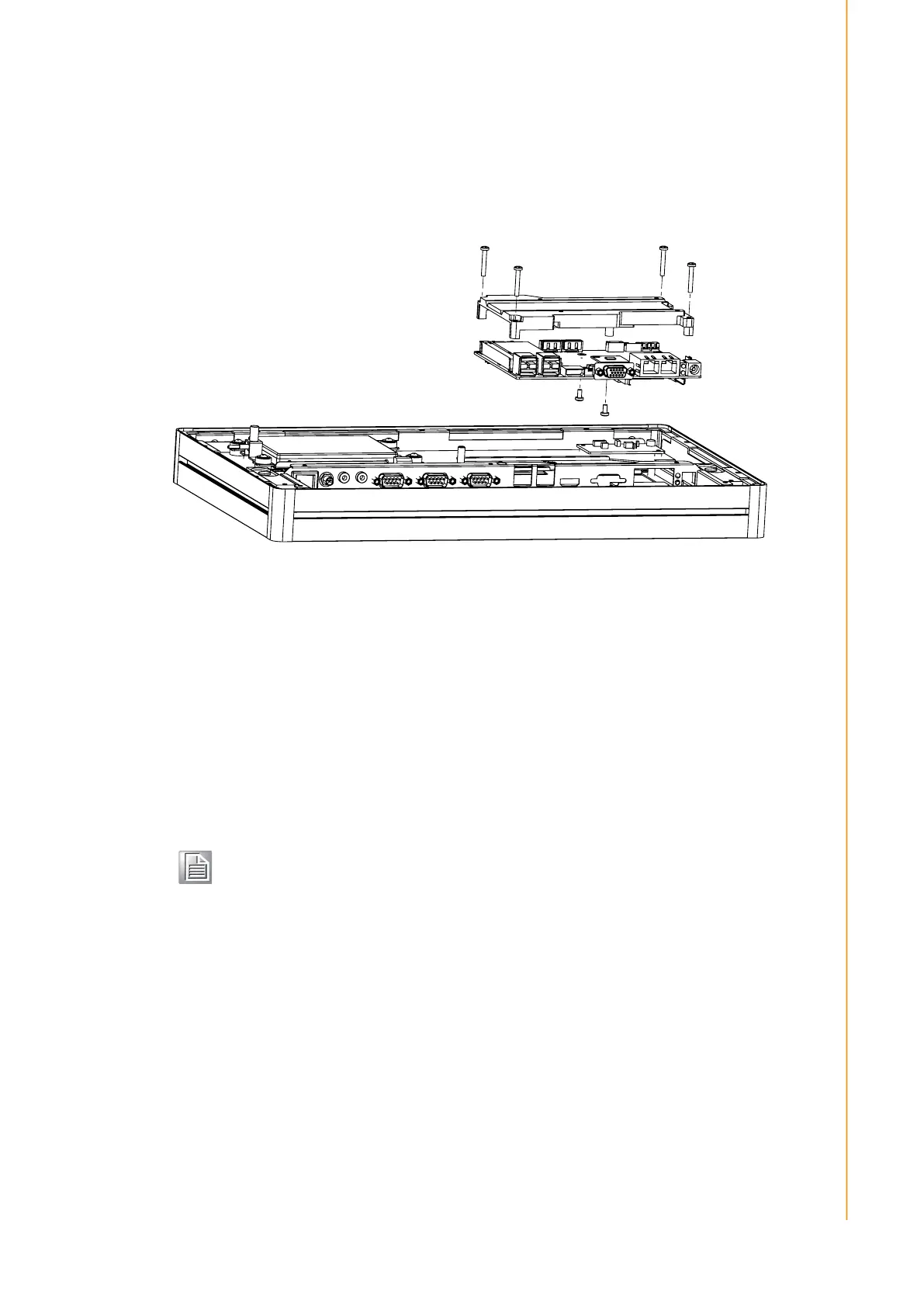

3.4 Installing a Memory Module
1. Loosen the affixing screws and remove the rear cover.
2. Remove the 4 screws from the DRAM memory module heatsink.
3. Turn the memory module over and remove the 2 screws on the underside.
4. Install the DRAM module into the SODIMM socket.
3.5 Installing a Wireless LAN Card (Optional)
1. Loosen the affixing screws and remove the rear cover.
2. Remove the four screws holding the heatsink in place.
3. Insert the WLAN card into the mini PCIe slot located on the underside of the
motherboard.
4. Connect a coaxial cable to ANT1 and ANT2 ports on the WLAN card.
5. Install the antenna brackets, washers, and nuts inside chassis.
6. Reassemble the back cover.
7. Install the antenna on SMA connector on chassis exterior.
Note! If the motherboard is removed from the chassis and the cables detached
and reattached, Pin 1 of the header can be located by aligning the red
side of the ribbon cable to the edge indicated by a small triangle marking
on the PCB.
