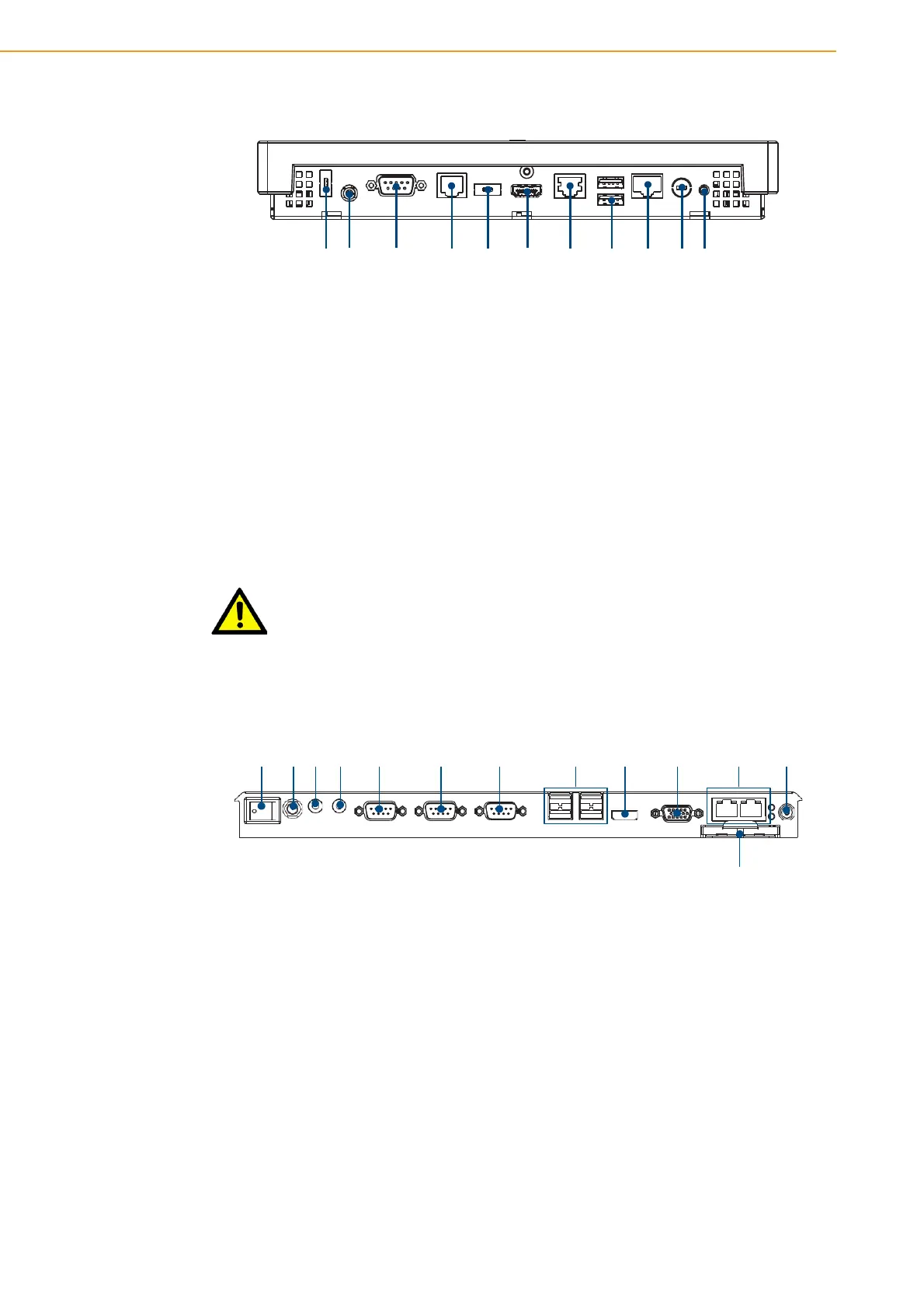

UTC-510/515/520/532/542 User Manual 31
2.2.2 UTC-510(PoE)
A. Power switch
B. Antenna connector
C. Line-Out
D. Mic-In
E. COM3 (UTC-515A/B only)
F. COM2
G. COM1
H. 4 x USB 2.0
(2 x USB 3.0 for UTC-515C/E/F)
I. HDMI
J. VGA
K. 2 x LAN
L. CFast (UTC-515A/B only)
M. DC input
With the standard UTC-510 PoE model, users are recommended to avoid using the
USB 2.0 (A) and USB 3.0 (E) ports. To change the configuration, the total power input
must be under25.5W.
Caution! The UTC-510 (PoE) model is a PoE-powered device that consumes
energy.Always use power sourcing equipment (PSE) that complies with
the IEEE 802.3at PoE standard, also known as “PoE+” or “PoE plus”,
and provides up to 30W of DC power output because only 25.5W is
guaranteed to be available because of in-cable power dissipation.
2.2.3 UTC-515 D/F/G/H
A B C
A. USB 2.0 (DC versiononly)
B. Headset
C. COM1
D. COM2
E. USB 3.0 (DC versiononly)
F. HDMI
D E F G H I J K
G. LAN
H. 2 x USB 2.0
I. LAN/PoE
J. DC power jack (DC version only)
K. Power switch
A B C D E F H K M
L
G JI
