14
POC-421_424 User Manual
5.
INSTALLATION PROCEDURE
5.1
Connecting the DCIN (Medical Type)
The USM-100H SERIES can only be powered by AC adapter (FSP Model no. FSP120M-KHA).
Be sure to always handle the power cords by holding the plug ends only.
Follow these procedures in order:
1. Connect the female end of the power cord to AC adapter.
2. Connect the 3-pin male plug of the power cord to an electrical outlet.
Note! This adaptor is optional, if with cart and equipment products direct DC
12V power supply, do not need to use this adapter.
The cart and equipment must meet the IEC60601-1 certification to pro-
vide POC DC power.
5.2
Connecting the Ground Pin
Step1.
System ready and find the Equipotential Terminal on rear side of USM-100H. An
Equipotential Terminal is provide to optionally connect to a hospital ground/earth system.

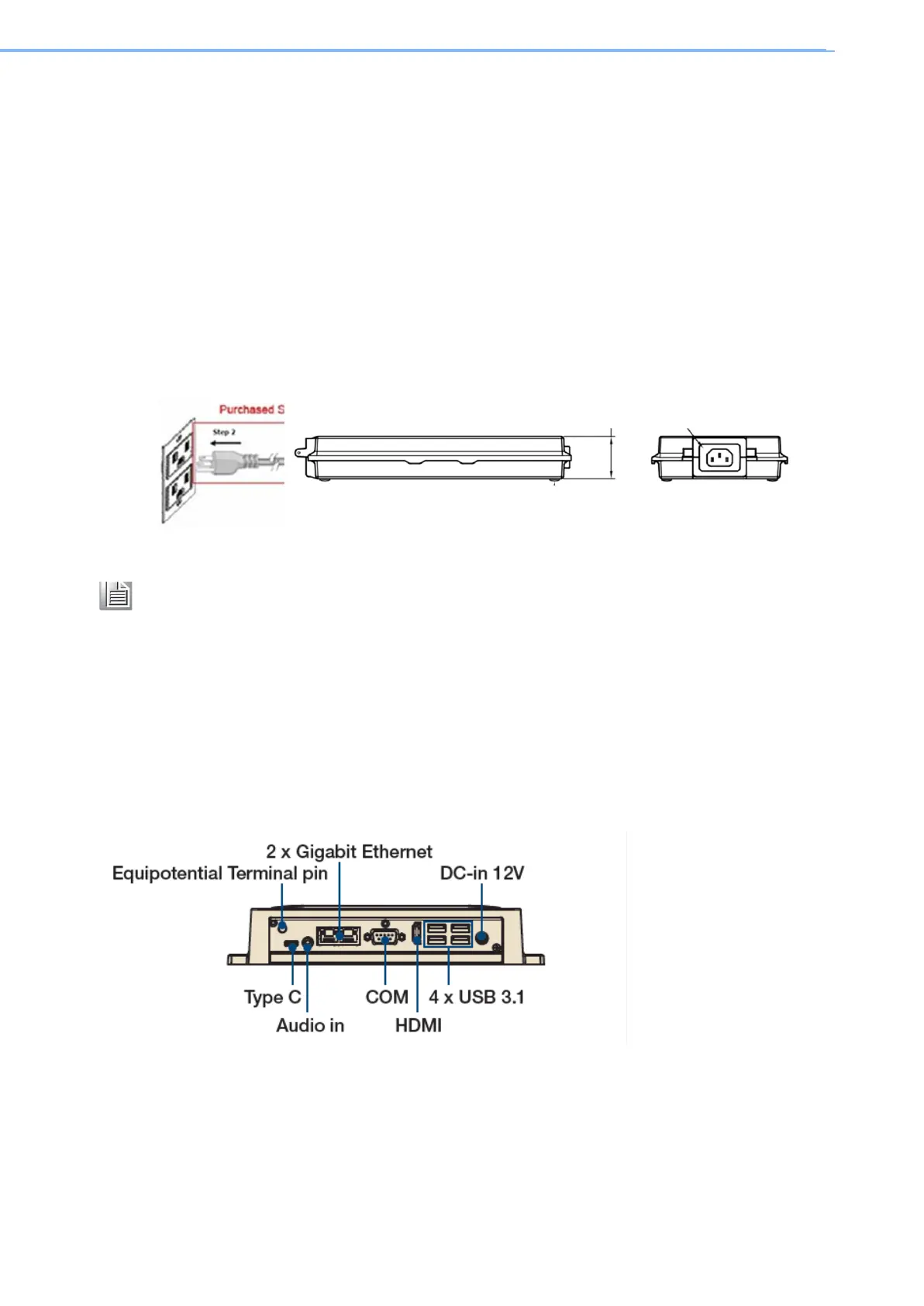

Figure 5-1: USM-100H Equipotential Terminal Pin
Step2. Prepare the Grounding cable and the other terminal link to hospital ground/earth
system.
